Asus Graphics Card
NVIDIA GeForce RTX 2070 Super Graphics Card
GPU Engine Specs:
- NVIDIA CUDA Cores:2560
- RTX-OPS:52 T
- Giga Rays/s:7
- Boost Clock (MHz):1770
- Base Clock (MHz):1605
Memory Specs:
- Memory Speed:14 Gbps
- Standard Memory Config:8 GB GDDR6
- Memory Interface Width:256-bit
- Memory Bandwidth (GB/sec):448
Technology Support:
- Ray Tracing Cores: Yes
- Tensor Cores: Yes
- NVIDIA DLSS: Yes
- NVIDIA Adaptive Shading: Yes
- NVIDIA GeForce Experience™: Yes
- NVIDIA Ansel: Yes
- NVIDIA Highlights: Yes
- NVIDIA G-SYNC Compatible: Yes
- NVIDIA GPU Boost™:4
- NVIDIA NVLink™ (SLI-Ready):Yes With NVIDIA RTX NVLink Bridge
- Game Ready Drivers: Yes
- Microsoft DirectX® 12 Raytracing: Yes
- Vulkan RT API, OpenGL 4.6: Yes
- DisplayPort 1.4, HDMI 2.0b: Yes
- HDCP 2.2: Yes
- VR Ready: Yes
- NVIDIA Encoder (NVENC):Yes(Turing)
Display Support:
- Maximum Digital Resolution:7680x4320
- Standard Display Connectors:DisplayPort, HDMI
- Multi Monitor:4
- HDCP:2.2
Graphics Card Dimensions:
- Height:4.556” (115.7mm)
- Length: 10.5” (266.74mm)
- Width:2-Slot
Thermal Power Specs:
- Maximum GPU Temperature (in C):88
- Graphics Card Power (W):215
- Recommended System Power (W):650
- Supplementary Power Connectors:6pin+8pin
1 - 4k 12-bit HDR at 144Hz or 8k 12-bit HDR at 60Hz over one DisplayPort 1.4 connector (with DSC).
2 - DisplayPort 1.4a Ready, DSC 1.2 Ready.
3 - Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.
Asus Sound Card Xonar U3
- Brand : Asus
- Model : Xonar U3
- Audio Chipset : UA100
- Channels : 2 Channels
- Sample Rate : 48KHz
- SNR : 100dB
- Hardware Decode : Dolby Digital
- Interface : USB
- Operating Systems Supported : Windows 7, Windows Vista, Windows XP
- Type : External Sound Card
- Dimension : 79.5 x 30.6 mm
Asus Sound Card Xonar DX
- Signal-to-Noise Ratio : 116dB
- Crosstalk : None
- THD + Noise : Output: 0.00056% (-105dB) for Front-out
- Input: 0.0004% (-108dB) for Line-in
- Frequency Response : < 10Hz to 48kHz
- Channel Playback : 7.1
- Conversion : 24-bit
- Recording : 44.1kHz, 48kHz, 96kHz, 192kHz at 16/24-bit with very low latency
- S/PDIF Output : 1x Optical shared with Line-in/Mic-in jack
- Input/Output Connectors Audio : 5x 1/8 inch(3.5mm)
- Dimensions : 10.0 x 6.8 x 3.0 mm
Asus Sound Card Xonar DG PCI
- Signal-to-Noise Ratio : 105dB
- Frequency Response : 10 Hz to 48 KHz
- Bus Compatibility : PCI
- Audio Processor :C-Media CMI8786 High-Definition Sound Processor
- Driver Support : 44.1K/48K/96KHz 16bit/24bit
- Dimensions : 170.44 x 64.39 mm
- Accessories : Low -profile Bracket x 1, Driver CD x 1,Quick Start Guide x 1

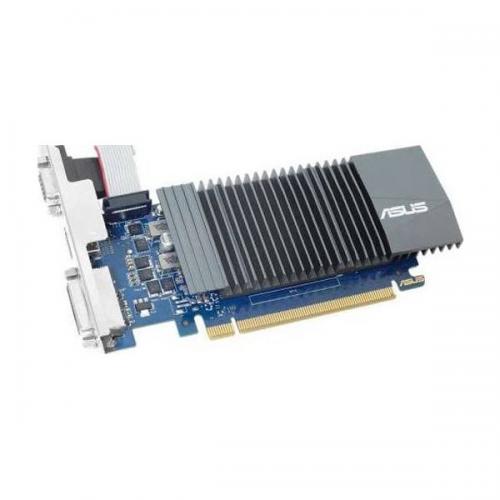

Asus Nvidia 710 1 SL 7101SL Graphics Cards
- Graphics Engine : NVIDIA GeForce GT 710
- Bus Standard : PCI Express 2.0
- OpenGL : OpenGL®4.4
- Video Memory : DDR3 1GB
- Engine Clock : 954 MHz
- CUDA Core : 192
- Memory Clock : 1800 MHz
- Memory Interface : 64-bit
- DVI Max Resolution : 2560x1600
- Interface : D-Sub Output : Yes x 1 (Native), DVI Output : Yes x 1 (Native) (DVI-D)
- HDCP Support : Yes
- Accessories : 1 x CD, 1 x Quick Guide
- Software : ASUS GPU Tweak II & Driver
- Dimensions : 5.4 " x 2.7 " x 1.3 " Inch
Asus Nvidia 710 2 SL 7102SL Graphics Cards
- Graphics Engine : NVIDIA GeForce GT 710
- Bus Standard : PCI Express 2.0
- OpenGL : OpenGL®4.4
- Video Memory : DDR3 2GB
- Engine Clock : 954 MHz
- CUDA Core : 192
- Memory Clock : 1800 MHz
- Memory Interface : 64-bit
- DVI Max Resolution : 2560x1600
- Interface D-Sub Output : Yes x 1 (Native)
- DVI Output : Yes x 1 (Native) (DVI-D)
- HDMI Output : Yes x 1 (Native)
- HDCP Support : Yes
- Software : ASUS GPU Tweak II & Driver
- Dimensions : 5.31 x 4.72 x 1.06 mm
Asus Nvidia GT1030 SL 2G Graphics Cards
- Graphics Engine : NVIDIA GeForce GT 1030
- Bus Standard : PCI Express 3.0
- Video Memory : GDDR5 2GB
- Engine Clock : OC Mode - GPU Boost Clock : 1506 MHz , GPU Base Clock : 1266 MHz
- Gaming Mode : GPU Boost Clock : 1468 MHz , GPU Base Clock : 1228 MHz
- CUDA Core : 384
- Memory Clock : 6008 MHz
- Memory Interface : 64-bit
- DVI Max Resolution : 1920x1200
- Interface DVI Output : Yes x 1 (Native) (DVI-D)
- HDMI Output : Yes x 1 (Native)
- HDCP Support : Yes
- Software : ASUS GPU Tweak II & Driver
- Dimensions : 6.8 x 2.7 x 1.5 mm
Asus Nvidia PH GT1030 O2G Graphics Cards
- Graphics Engine : NVIDIA GeForce GT 1030
- Bus Standard : PCI Express 3.0
- Video Memory : GDDR5 2GB
- Engine Clock : OC Mode - GPU Boost Clock : 1531 MHz , GPU Base Clock : 1278 MHz
- CUDA Core : 384
- Memory Clock : 6008 MHz
- Memory Interface : 64-bit
- DVI Max Resolution : 1920x1200
- Interface DVI Output : Yes x 1 (Native) (DVI-D)
- HDMI Output : Yes x 1 (Native)
- HDCP Support : Yes
- Software : ASUS GPU Tweak II & Driver
- Dimensions : 7.3 x 4.4 x 1.4 mm
