Dell Workstations
Dell Precision 3930 Rack Workstation
- Processor : 9th Generation Intel CoreTM i3, i5, i7 and i9 and
- Intel Xeon Processor E 2200 family of CPUs with
- up to 8 Cores 8th Generation Intel CoreTM i3, i5 and i7 and
- Intel Xeon Processor E 2100 family of CPUs with up to 6 cores
- Operating System : Microsoft Windows 10 Pro (64 bit)
- Microsoft Windows 10 Pro for Workstations (64 bit)
- Microsoft Windows 10 Home 64 bit (Offline only)
- Red Hat Enterprise Linux 7.5
- Ubuntu Linux 18.04
- Chipset : Intel C246
- Memory : Dual channel UDIMM memory up to 128GB
- 2666MHz DDR4 Non-ECC or ECC Memory (128GB ECC coming soon)
- Graphics : One PCI Express® x16 Gen 3 double width Graphics
- card or Two PCI Express x 8 Gen 3 Graphics single
- width graphics cards up to 295W
- Dual graphic card capability is available for select cards, including
- NVIDIA Quardro RTX 4000, P4000, P2000, P400
- and AMD Radeon Pro WX 4100
- High end 3D cards:
- NVIDIA Quadro® RTX 5000 w/16GB
- DDR5 (dual PSU required)
- NVIDIA Quadro® RTX 6000 w/24GB
- DDR5 (dual PSU required)
- NVIDIA Quadro P5000
- NVIDIA Quadro P6000
- Mid range 3D cards:NVIDIA Quadro RTX 4000 w/8GB
- DDR5 (dual PSU required when using two RTX 4000 cards)
- NVIDIA Quadro P4000
- NVIDIA Quadro P2000
- Entry 3D cards:AMD Radeon Pro WX 4100
- NVIDIA Quadro P400
- NVIDIA Quadro P620 (coming soon)
- NVIDIA Quardro P1000 (coming soon)
- Consumer Graphics:NVIDIA GTX 1080
- NVIDIA GTX 2080 B
- Support for Intel Integrated graphics on Core and select Xeon
- Storage : Support for up to (2) M.2 PCIe SSD on
- motherboard slot and Up to (2) 3.5” SATA or (4) 2.5 SATA
- Support for up to up to (2) additional PCIe
- SSD on Dell Precision Ultraspeed drive (x8) with active cooling
- M.2 PCIe SSD (NVMe)
- Up to (2) 512GB
- Up to (2) 1TB
- Up to (2) 2TB
- Storage : Up to (4) 256GB
- Up to (4) 512GB
- Up to (4) 1TB
- 2.5 SATA SMR 5400 RPM
- Up to (4) 2TB
- 2.5” SATA 7200 RPM
- Up to (4) 1TB
- 3.5 SATA 7200 RPM
- Up to (2) 500GB
- Up to (2) 2TB
- Up to (2) 2TB Enterprise
- Up to (2) 4TB Enterprise
- Up to (2) 8TB Enterprise
- Self Encrypting Drives
- Up to (4) 2.5” 500GB 7200 RPM
- Up to (2) M.2 PCIe SSD 512GB
- Up to (2) M.2 PCIe SSD 256GB
- Optane Memory
- M.2 SSD 32GB Optane Memory
- Communications : Integrated: 1Gb Intel and 10Gb Aquantia Ethernet Connections
- Network Cards : Intel@ i210-single port 1Gb Ethernet Network Card (1 x 1 Gb ports)
- Intel X550-Dual Port 10Gbe (2 X 10 Gb) Ethernet
- Network Card
- I/O Ports : Front :
- 1- Audio Jack
- 1- USB 3.1 Type C
- 2 - USB 3.1 Type A
- 1- SD Card Reader
- Internal :
- 1 - USB 3.1 Type A (supports USB storage key) Rear
- 2 - USB 3.1 Type C/iGFX Display Port
- 1 - Remote Power Switch connector
- 1 - Serial port
- 2 - RJ45 Network
- 2.5 SATA SSD
- Chassis Dimensions
- HxWxD: 1.68” (42.8 mm) x 18.98 (482.0 mm) x 23.19 (589.1 mm) with Bezel or 22.74 (577.6 mm) without Bezel
- Weight: 19.27lb (8.74 kg)
- Slots: Three add-in card slots available
- Chassis Choice of 2 Risers for Slot 1 (bottom) & 2 (top)
- Riser 1A: Support for PCIe Cards
- Riser 1B: Support for PCI legacy cards
- With PCIe riser 1A:
- All Slots PCIe Gen 3. Up to 1 double-width x16 card supported
- Slot 1 (bottom): Full Height Double width PCIex16 Gen 3 or Single Width PCIex8 Gen
- Slot 2 (top): Full Height Single Width PCIex8 Gen 3
- With PCI legacy riser 1B:
- Slot 1 (bottom): Full Height PCI 32/33
- Slot 2 (top): Full Height PCI 32/33
- Fixed Riser for Slot 3 (on all chassis)
- Full Height Single Width PCIeX4 Gen 3
- Power Supply: One or two redundant/non-redundant hot pluggable 550W (80PLUS Platinum certified)
- Two PSUs required with RTX 4000, RTX 5000 and RTX 6000 that will function in non-redundant mode
- Warranty & Support Services:
- 3-Year Limited Hardware Warranty and 3 year NBD On-Site Service after Remote Diagnosis
- Optional: Dell ProSupport is designed to rapidly respond to your business’s needs
- help protect your investment and sensitive data, and provide enhanced proactive
- support services to help reduce risk and complexity within your IT environment
Dell Precision 7920 Rack Workstation
- Processor :One or two Intel Xeon Scalable Processor family
- CPUs (1st and 2nd generation) with up to 28
- cores per processor and Intel Advanced Vector
- Extensions, Intel Trusted Execution Technology,
- Intel AES New instructions, Optimized Intel Turbo
- Boost and optional Intel vPro™ technology
- Operating System :
- Windows 10 Pro for Workstations (up to 4 Cores)
- Windows 10 Pro for Workstations (4 Cores Plus)
- Red Hat Enterprise Linux 7.5
- Red Hat Enterprise Linux 8.0 (Sept. 2019)is required for 2nd Generation Xeon SP(Cascade Lake) CPUs
- Ubuntu Linux 16.04, 18.04
- Chipset : Intel C621 (Lewisburg)
- Memory : Six channel memory up to 1.5TB 2666MHz DDR4
- ECC memory with dual CPUs, up to 3TB with select
- CPU SKUs Up to 768GB of 2933MHz DDR4 ECC memory
- 24 DIMM Slots (12 DIMMs per CPU). Note: memory
- speed is dependent on specific Intel Xeon Scalable
- Processor CPU installed
- Graphics :Support for 3 PCI Express x16 Gen 3 graphics cards1 up to 900W with 3 x 300W double width
- graphics cards (dual CPU configuration)
- Dual non redundant 1600W PSUs 220V
- required for select high wattage graphics card
- configurations, and some restrictions apply
- High end 3D cards:Radeon Pro WX 9100, Radeon Pro SSG, NVIDIA Quadro GV100
- NVIDIA Quadro P6000
- NVIDIA Quadro RTX 8000 (future)
- NVIDIA Quadro RTX 6000
- NVIDIA RTX 5000
- NVIDIA Quadro P5000
- Mid range 3D cards: Radeon Pro WX 7100, Radeon Pro WX 5100, Radeon Pro WX 4100
- NVIDIA Quadro RTX 4000
- NVIDIA Quadro P4000
- NVIDIA Quadro P2000
- Entry 3D cards: NVIDIA Quadro P620, NVIDIA Quadro P400 Integrated VGA graphics motherboard connector
- (part of iDRAC9 Systems Management and requires iDRAC9 Enterprise license to enable)
- Storage : Support for up to (8) 2.5” or 3.5” SATA/SAS drives
- Up to 8 x M.2 NVMe PCIe SSDs via 2 x Dell UltraSpeed Drive Quad x16 cards
- (maximum requires dual CPUs), NVMe RAID 0,1,10 option on 1st card (Intel RSTe vROC)
- PERC PCIe controllers required for SAS drive
- support M.2 NVMe PCIe SSDs
- Up to 8* x 2TB drives on 2 Dell Precision
- Ultra Speed Drive Quad x16 cards
- Requires dual CPU config
- Storage : 2.5 SATA SSD
- Up to 8 x 1TB
- 2.5 SAS SSD
- Up to 8 x 800GB
- 2.5 SATA 7200 RPM
- Up to 8 x 2TB
- 3.5 SATA 7200 RPM
- Up to 8 x 8TB
- 2.5 SAS 10K RPM 12Gb/s
- Up to 8 x 1.8TB
- 2.5 SAS 15K RPM 12Gb/s
- Up to 8 x 600GB
- Storage Controller Integrated: 2 x Intel chipset AHCI 6Gb/s SATA
- controllers with 4 ports (total 8) each for HDD/SSD
- One port for optical drive
- Intel RSTe software RAID 0, 1,5,10 supported across
- 4 SATA ports on 1st controller only. (Maximum 4 drives in RAIDset)
- Intel RSTe (vROC) software RAID 0,1,10 option
- (motherboard activation key) for M.2 NVMe PCIe
- SSDs on 1st Dell Ultra-Speed Drive Quad x16
- or Duo x8 card (0,1). Customer kit available for Intel
- RSTe (vROC) motherboard activation key for NVMe
- RAID support
- Optional: PERC H330 12Gb/s SAS (6Gb/s SATA) 8
- port PCIe controller supports JBOD and software
- RAID 0,1,5,10
- PERC H730P PCI-e SAS 12Gb/s (SATA 6Gb/s)
- Hardware RAID PCIe controller with 1GB cache
- (Super Cap backup, RAID 0/1/5/10 (no JBOD)
- PERC H740P PCI-e SAS 12Gb/s (SATA 6Gb/s)
- Hardware RAID PCIe controller with 4GB cache
- Network Daughter Cards :
- Base: Intel i350-Quad port 1Gb Ethernet Network
- Daughter Card (4 x 1Gb ports)
- Optional: Intel X550-Dual port 10Gb + Intel I350
- Dual port 1Gb Ethernet Network Daughter card (2 x
- 10Gb + 2 x 1Gb ports )
- Intel X710 Dual port 10Gb DA/SFP+, + I350 Dual
- port 1Gb Ethernet Network Daughter card
- Integrated: Integrated Broadcom® BCM54210
- Ethernet LAN 10/100/1000 for iDRAC9 controller
- use with System Management tool suite
- (Super Cap backup), RAID 0/1/5/10 (no JBOD)
- Note: Windows 7 is not supported on the PERC
- H740P controller. PERC controllers are installed in Slot 3
- Add-in cards : Optional: Dell Precision Ultra-Speed Drive Duo
- (HH/ HL,x8 card) and Ultra-Speed Drive Quad
- (FH/FL,x16 card) with active cooling. Support for up to 2
- and 4 M.2 NVMe PCIe SSDs respectively
- USB 3.1 (Gen 2) 10Gb/s Type C card (2 ports) 1 DP
- pass through port Optional: Dual & quad (FH card)
- display Teradici PCoIP PCIe remote workstation
- access cards. Full height and low profile bracket
- versions of dual display card available. Serial Port
- PCIe Card (single port)
- I/O Ports : Front :
- 2 USB 2.0
- 1 USB 2.0 Management port (IDRAC9)
- 1 VGA Port for iDRAC9
- Internal : 1 USB 3.1 Type A – supports standard USB
- storage key : SD Vflash media connector
- Rear : 2 USB 3.1 Type A
- 4 RJ45 Network
- 1 Serial
- 1 RJ45 for iDRAC
- 1 A VGA Port for iDRAC
- Chassis : HxWxD: 3.41 x 17.0 x 28.37 (29.78 with bezel)
- 86.8mm x 482mm x 715.5mm (751.3mm with bezel)
- Bays: (1) external slimline optical bay; (8) front
- accessible 3.5” bays (support total of (8) 3.5 or
- 2.5 HDD/SSD drives)
- Slots: All slots PCIe Gen 3. (6) PCIe full height/full
- length slots, (1) PCIe full height/half length slot, (1)
- PCIe low profile/full length slot
- Up to (3) double width x16 cards supported
- All slots x16 mechanically
- With single CPU – (1) x x16, (1) x x8, (1) x x8 half
- length, (1) x x8 low profile PCIe slots
- With dual CPUs (2) x x16, (2) x x8 PCIe slots
- Power Supply: One or two redundant hot pluggable
- 1100W –90% efficient (80PLUS Gold Certified)
- Available 1600W PSU in non-redundant mode
- 220V is required for certain configurations
- Storage devices : Slimline options: DVD-ROM; DVD+/-RW
- Security Options : Trusted Platform Module (TPM 1.2 or TPM 2.0)
- chassis Intrusion switch; Setup/BIOS Password; I/O
- Interface Security; lockable front bezel, Dell Data
- Guardian, Dell Endpoint Security Suite Enterprise
- Warranty & Support Services :
- 3 Year Limited Hardware Warranty and 3 year NBD
- On Site Service after Remote Diagnosis
- Optional: Dell ProSupport is designed to rapidly
- respond to your business’s needs, help protect
- your investment and sensitive data, and provide
- enhanced proactive support services to help reduce
- risk and complexity within your IT environment
Dell Precision 15 inch 7540 Mobile Workstation
- Processor :
- Intel Xeon E2286M, 8 Core Xeon, 16M Cache, 2.40GHz up to 5.00GHz Turbo, 45W, vPro
- Intel Core Processor i9 9980HK, 8 Core, 16MB Cache, 2.40GHz up to 5.00GHz Turbo, 45W
- Intel Core Processor i9 9880H, 8 Core, 16MB Cache, 2.30GHz up to 4.80GHz Turbo, 45W, vPro
- Intel Xeon E 2276M, 6 Core Xeon, 12M Cache, 2.80GHz up to 4.70GHz Turbo, 45W, vPro
- Intel Core Processor i7 9850H, 6 Core, 12M Cache, 2.60GHz up to 4.6GHz Turbo, 45W, vPro
- Intel Core Processor i7 9750H, 6 Core, 12M Cache, 2.60GHz up to 4.5GHz Turbo, 45W
- Intel Core Processor i5 9400H, 4 Core, 8M Cache, 2.50GHz up to 4.3GHz Turbo, 45W, vPro
- Operating System :Microsoft Windows 10 Pro 64 bit,Microsoft Windows 10 Pro for Workstations 64 bit
- Microsoft Windows 10 Home 64 bit, Ubuntu 18.04 LTS 64-bit, RedHat 8.0
- Chipset : Intel Mobile CM246
- Memory : 128 GB, 4x32 GB, DDR4, 2666MHz, ECC SDRAM
- 16 GB, 2x8 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- 32 GB, 2x16 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- 32 GB, 4x8 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- 64 GB, 4x16 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- Graphics :Intel UHD Graphics P630, Intel UHD Graphics 630,Radeon Pro WX 3200 w/4GB GDDR5
- NVIDIA Quadro T1000 w/4GB GDDR5, NVIDIA Quadro T2000 w/4GB GDDR5,NVIDIA Quadro RTX 3000 w/6GB GDDR6
- Display Options :
- 15.6 FHD, 1920 x 1080, Anti Glare, LED Backlight, Non-touch 45% Adobe RGB color gamut
- 15.6 FHD, 1920 x 1280, Anti Glare IPS, Non-touch 100% sRGB color gamut
- 15.6 FHD, 1920 x 1280, Truelife IPS, Touch 100% sRGB color gamut
- 15.6 UHD HDR 400, 3840 x 2160, Anti Glare IGZO, Nontouch 100% Adobe color gamut
- Storage Options :Support for 3 storage devices: Three M.2 PCIe solid state drives or two M.2 PCIe solid state drives and one 2.5
- Storage Options :SATA HDD drive: Dell Fast Response free fall sensor 2.5in, 500 GB, 7200 RPM, SATA HDD FIPS
- 2.5 in 500 GB, 7200 RPM, SATA HDD
- 2.5 in 1 TB, 7200 RPM, SATA HDD
- 2.5 in 2 TB, 5400 RPM, SATA HDD
- M.2 2280 256 GB, PCIe, Class 40 SSD
- M.2 2280 512 GB, PCIe, Class 40 SSD
- M.2 2280 1 TB, PCIe, Class 40 SSD
- M.2 2280 2 TB, PCIe, Class 40 SSD
- M.2 2280 512 GB, PCIe, Class 40 SSD OPAL SED
- M.2 2280 1 TB, PCIe, Class 40 SSD OPAL SED
- M.2 2280 512 GB, PCIe, Class 50 SSD
- M.2 2280 1 TB, PCIe, Class 50 SSD
- Communication Options:
- Wireless :
- Qualcomm QCA61x4A 802.11ac Dual Band (2x2) Wireless
- Adapter+ Bluetooth 4.2
- Intel Dual Band Wireless AC 9560 (802.11ac) 2x2
- (No Bluetooth)
- Intel Dual Band Wireless AC 9560 (802.11ac) 2x2 +
- Bluetooth 5.0
- Intel WiFi 6 AX200 2x2 .11ax 160MHz + Bluetooth 5.0
- Intel WiFi 6 AX200 2x2 .11ax 160MHz (No Bluetooth)
- Intel XMM 7360 LTE Advanced
- Multimedia :Dual integrated high quality speakers and optional dual integrated noise cancelling digital array microphones
- MaxxAudio Pro by Waves
- HD Camera (optional)
- IR camera (optional)
- I/O Ports and Connectors :
- 3 x USB 3.1 Gen 1 ports w/PowerShare, 2 x Thunderbolt 3
- type C ports, SD Card reader, mini Display Port 1.4, HDMI
- port 2.0, Ethernet port, Headphone jack, FPR optional, IR
- camera optional, Smartcard reader, contactless Smartcard
- reader optional
- Dimensions and Weight:
- Width X = 13.29” (337.6mm)
- Depth Y= 9.89” (251.3mm)
- Height Z= front .98” (25.mm) – rear 1.17” (29.95mm)
- Starting at 5.57lbs, 2.53kg
- Battery : 4 Cells, 64 Whr Lithium Ion Polymer, ExpressCharge
- Capable Battery
- 6 Cells, 97 Whr Lithium Ion Polymer, ExpressCharge
- Capable Battery
- 6 Cells, 97 Whr Lithium Ion Polymer, Long Life Battery
- (includes 3 year limited hardware warranty)
- Power Adaptor : 180W adapter, 7.4mm barrel
Dell Precision 5530 2 in 1 Mobile Workstation
- Processor: Intel 8th Generation Processors
- 8th Gen Intel Quad Core i5 8305G processor with Radeon Pro WX Vega M GL graphics (6MB cache, up to 3.8GHz)
- 8th Gen Intel Quad Core i7 8705G processor with Radeon Pro WX Vega M GL graphics(8MB cache, up to 4.1GHz)
- 8th Gen Intel Quad Core i7 8706G processor with Radeon Pro WX Vega M GL graphics(8MB cache, up to 4.1GHz)
- Operating System :Windows 10 Home 64, Windows 10 Pro 64, Ubuntu 16.04 SP1, Red Hat 7.5
- Chipset : Intel HM175 Chipset
- Memory : 8GB 16GB Dual Channel DDR4 at 2400MHz (On Board); 32GB post RTS
- Graphics : Radeon Pro WX Vega M GL graphics with 4GB HBM2 RAM
- Display Options :
- 15.6 inch UltraSharp 4K Ultra HD (3840x21600) InfinityEdge touch display; 100% Adobe RGB (min)
- 15.6 inch FHD (1920 x 1080) InfinityEdge touch display; 100% sRGB 400 nits, 1500:1 contrast ratio
- anti reflective 178° wide viewing angle - 89° / 89° / 89° / 89° Capacitive touchscreen 10 finger
- touch support; Multi-Protocol Active Pen with Tilt Support
- Storage Options: 128GB, 256GB, 512GB PCIe NVMe, up to 2TB PCIe NVMe SSD
- Communication Options :
- Wireless LAN: Killer 1435 802.11ac [2x2] + Bluetooth 4.1
- Intel 8265 802.11ac [2x2] wireless for Vpro + Bluetooth 4.1
- Miracast capable
- Multimedia : Stereo speakers professionally tuned with Waves MaxxAudio Pro; 1W x 2 = 2W total Widescreen
- HD (720p) webcam with 4 array digital microphones; Windows Hello compliant infrared camera
- I/O Ports and Connectors :
- 2x Thunderbolt 3 with PowerShare, DC-In & DisplayPort
- 2x USB C 3.1 with PowerShare, DC-In & DisplayPort
- MicroSD card reader
- Headset jack
- Security : Trusted Platform Module (TPM) 2.0
- Chassis lock slot support via Noble lock slot
- Dimensions and Weight :
- Height: 0.36-0.63” (9 -16 mm)
- Width: 13.9 (354mm)
- Depth: 9.2 (235mm)
- Starting weight: 4.36 lbs* (2 kg*)
- Battery : 75WHr battery (built-in)
- Battery is built-in to the laptop and is not replaceable by the customer
- Power Adaptor : 130W AC adapter via USB-C Noble lock slot
Dell Precision 3540 Mobile Workstation
- Processor :
- Intel Core 5 8265U Processor, 4 Core, 6MB Cache, 1.6GHz, 3.9Ghz Turbo, 15W
- Intel Core i5 8365U Processor, 4 Core, 6MB Cache, 1.6GHz, 4.1GHz Turbo, 15W, vPro
- Intel Core i7 8565U Processor, 4 Core, 8MB Cache, 1.8GHz, 4.6GHz Turbo, 15W
- Intel Core i7 8665U Processor, 4 Core, 8MB Cache, 1.8GHz, 4.8GHz Turbo, 15W, vPro
- Operating System: Windows 10 Home 64, Windows 10 Pro 64, Ubuntu 18.04, Red Hat 7.5
- Memory: 2 DIMM slots up to 32GB 2400MHz non ECC
- Graphics: Integrated Intel UHD 620 Graphics, AMD Radeon Pro WX 2100 w/ 2GB dedicated memory
- Display Options: 15.6 HD TN (1366x768) Anti Glare LED backlit (45% TBD color gamut)
- 15.6 FHD (1920x1080) Wide View Anti Glare LED backlit (45% color gamut)
- 15.6 FHD (1920x1080) Wide View Anti Glare LED backlit (72% color gamut) with Premier Color
- 15.6 FHD Touch (1920x1080) Wide View LED backlit (45% color gamut
- Storage Options: 1 slot: 1x 2.5”HDD or M.2 SATA / PCIe, 2.5”HDD: 500GB 7200RPM, 500GB 7200RPM, SATA SED FIPS, 1TB 7200RPM, 2TB 5400RPM
- M.2 SATA: 256GB, 512GB
- M.2 PCIe: 128GB, 256GB, 256GB SED, 512GB
- 512GB SED, 1TB, 2TB
- Input : Single Pointing standard
- Dual Pointing backlit
- Multi touch Touchpad
- Communication Options :
- Wired: Integrated Intel I219LM 10/100/1000 Gigabit
- Ethernet Controller
- Wireless LAN & Bluetooth:
- Qualcomm QCA61x4A 802.11ac Dual Band (2x2)
- Wireless Adapter+ Bluetooth 4.2
- Intel Dual Band Wireless AC 9560 (802.11ac) 2x2 (No Bluetooth)
- Intel Dual Band Wireless AC 9560 (802.11ac) 2x2 + Bluetooth 5.0
- Intel WiFi 6 AX200 2x2 .11ax 160MHz + Bluetooth 5.0
- Intel WiFi 6 AX200 2x2 .11ax 160MHz (No Bluetooth)
- Multimedia: Dual integrated high quality speakers and dual
- integrated noise cancelling digital array microphones
- MaxxAudio Pro by Waves
- Optional integrated HD video webcam
- Optional IR Camera
- I/O Ports and Connectors :
- 1x Thunderbolt Type C, 3x USB 3.1 Gen 1 (1x power
- enabled), 1x HDMI 1.4, 1x RJ 45, 1x Headset jack
- 1x SD card reader, 1x Smart Card reader optional
- Fingerprint reader optional
- Security :
- Intel Platform Trust Technology, Trusted Platform
- Module (TPM) 2.0 (Check regional availability)
- Chassis lock slot support; Support for Computrace
- and SmartCard Reader; Fingerprint reader or FIPS
- Fingerprint reader (Check regional availability)
- Dimensions :
- Width: 14.14”/359.1 mm x Depth: 9.30”/236.2 mm x Height: 0.80”/20.35 mm
- Battery : 3 Cell 42Whr ExpressChargeTM Capable Battery
- 3 Cell 51Whr ExpressChargeTM Capable Battery
- 4 Cell 68Whr ExpressChargeTM Capable Battery
- 4 Cell 68Whr Long Life Battery (includes 3 year
- limited hardware warranty)
- Weight: Starting at 4.04lbs
- Power Adaptor: 65W and 90W 7mm-barrel AC adapters. Optional USB Type-C

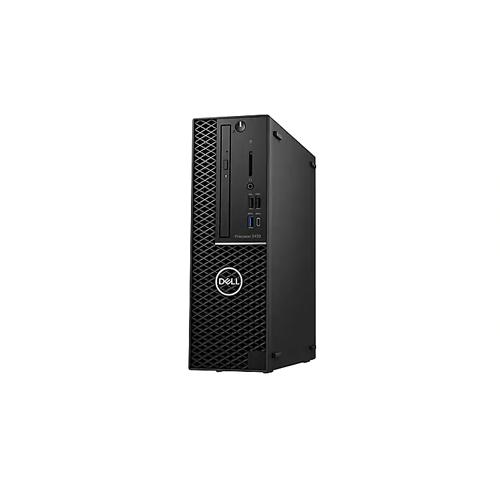

Dell Precision 3430 Small Form Factor Workstation
- Processor : 8th generation Intel Core i7, i5, i3, and Pentium
- Intel Xeon E Processors;
- Intel Turbo Boost technology(5) and Intel
- Integrated HD Graphics on select Processors
- optional vPro Technology
- Operating System
- Windows 10 Professional (64 bit)
- Windows 10 Pro for Workstations (64 bit) w/
- Intel Xeon processors
- Windows 10 Home (64 bit)
- Red Hat Enterprise Linux 7.5 (coming soon)
- Ubuntu Linux 16.04
- NeoKylin 6.0 SP3 (China only)
- Win10 IoT Enterprise 2019 LTSC
- Chipset: Intel C246 Chipset
- Memory: 4 Dimm Slots Up to 64GB 2666Mhz Non-ECC & ECC DDR4 Memory
- Graphics: One PCI Express® x16 Gen 3 Graphics card up to 55W
- Entry 3D cards: AMD Radeon Pro WX 4100
- AMD Radeon Pro WX 3100
- AMD Radeon Pro WX 2100
- NVIDIA Quadro P1000
- NVIDIA Quadro P620
- NVIDIA Quadro P400
- Professional 2D cards: Intel HD Graphics 630
- Storage : Support for up to (1) M.2 PCIe SSD on
- motherboard slot and Up to (1) 3.5 SATA or (2) 2.5 SATA. Support for Intel Ready Mode technology
- Support for up to (1) additional PCIe SSD on
- Dell Precision Ultra-Speed drive (x8) with active cooling
- M.2 PCIe SSD (NVMe)
- Up to (1) 2TB on M/B
- Up to (1) 2TB on Dell Precision Ultra Speed drive
- 2.5 SATA SSD
- Up to (2) 1TB
- 2.5 SATA 7200 RPM
- Up to (2) 1TB 7200 RPM
- 3.5 SATA
- Up to (1) 4TB 5400 RPM
- Up to (1) 2TB 7200 RPM
- Self Encrypting Drives
- 500 GB 7200 RPM
- 512 GB NVMe SSD
- 512 GB 2.5 SSD
- Storage Controller Integrated: Intel Rapid storage Controller 12.0
- supporting SATA 6Gb/s and host based RAID 0/1
- Communications Integrated: Intel Ethernet Connection I219 LM 10/100/1000
- Optional: Intel 10/100/1000 PCIe Gigabit Networking card
- Aquantia AQtion AQN-108 5/2.5 GbE NIC Adapter
- Optional: Wireless / Bluetooth w/ vPro support
- Audio Controller Integrated Realtek ALC3234 High Definition Audio Codec (2 Channel)
- Storage devices Optional: 1 optical drive: DVD-ROM; DVD+/-RW, Blu Ray Writer
- (Note: optical drive not available with Smart Card Reader (CAC/PIV))
- SD Card Reader
- Speakers Internal Speaker; Optional Dell 2.0 stereo speaker
- systems available and Dell sound bar for select
- flat-panel displays
- Add-in cards Thunderbolt 3 PCIe Card
- Support for up to (1) additional PCIe SSD on
- Dell Precision Ultra-Speed drive (x8) with
- active cooling
- Serial Port PCIe Card
- Parallel Port PCIe Card
- Smart Card Reader (CAC/PIV)
- Remote Access Host Card, Tera2
- USB Type-C 3.1 Gen 2 PCIe Card
- I/O Ports Front
- 2 USB 2.0 Type A
- 1 USB 3.1 Type A (5Gb)
- 1 USB 3.1 Type C (10Gb), data only
- 1 Universal Audio Jack
- 1 Internal SD Card reader (Optional)
- Internal
- 3 SATA 6Gb/s
- Rear
- 2 USB 2.0 Type A (with SmartPower)
- 4 USB 3.1 Type A (5Gb)
- 2 PS2
- 2 Display Port
- 1 Optional Port (VGA, HMDI 2.0, DP++ 1.2, Type
- C w/DP-Alt mode)
- 1 RJ45 Network Connector
- 1 Serial
- 1 Audio Line out
- 2 SMA
- Chassis HxWxD: 11.42 x 3.65 x 11.5 (29cm x 9.26cm x 29.2cm), Min weight: 5.117kg
- Bays: (1) internal 3.5” bay - supports (1) 3.5 or (2)
- 2.5 drives; (1) external slimline optical bay
- Slots: (1) half height PCIe x16 Gen3; (1) half height
- PCIe x4 Gen 3; (1) M.2 (22x80mm)
- Power Supply: 260W 92% efficient PSU (80PLUS
- Platinum Certified) Energy Star Compliant
- 200W 85% efficient PSU (80PLUS Bronze
- Certified) Energy Star Compliant
- 200W 85% efficient PSU (80PLUS Gold Certified)
- Energy Star Compliant
Dell Precision 3431 Desktop Workstation
- Processor : 9th generation Intel Core i9, i7, i5, i3, and Pentium
- Intel Xeon E Processors
- Intel Pentium Gold G5420, 2 Core, 4MB Cache, 3.8 Ghz w/UHD Graphics 630
- Intel Core i3 9100, 4 Core, 6MB Cache, 3.6Ghz
- 4.2 Ghz Turbo w/UHD Graphics 630
- Intel Core i5 9500, 6 Core, 9MB Cache, 3.0Ghz
- 4.4 Ghz Turbo w/UHD Graphics 630
- Intel Core i5 9600, 6 Core, 9MB Cache, 3.1Ghz
- 4.6 Ghz Turbo w/UHD Graphics 630
- Intel Core i7 8700 (6 Core, 12MB Cache
- 3.20GHz, 4.6Ghz Turbo w/ HD Graphics 630)
- Intel Core i7 9700, 8 Core, 12MB Cache, 3.0Ghz
- 4.8 Ghz Turbo w/UHD Graphics 630
- Intel Core i9 9900, 8 Core, 16MB Cache, 3.1Ghz
- 4.9 Ghz Turbo w/UHD Graphics 630
- Intel Xeon E 2224, 4 Core, 8MB Cache, 3.4Ghz
- 4.6Ghz Turbo
- Intel Xeon E Processor E 2174G (4 Core HT, 8MB
- Cache, 3.8Ghz, 4.7GHz Turbo)
- Intel Xeon E 2236, 6 Core, 8MB Cache, 3.4Ghz
- 4.8Ghz Turbo
- Intel Xeon E 2246G, 6 Core, 8MB Cache, 3.6Ghz
- 4.8Ghz Turbo w/UHD Graphics 630
- Intel Xeon E 2224G, 4 Core, 8MB Cache, 3.5Ghz
- 4.7Ghz Turbo w/UHD Graphics 630
- Operating System : Windows 10 Professional (64 bit)
- Windows 10 Pro for Workstations (64 bit) w/ Intel Xeon processors
- Windows 10 Home (64 bit)
- Red Hat Enterprise Linux 7.5 (coming soon)
- Red Hat 8.0 (coming soon)
- Ubuntu Linux 16.04
- Ubuntu Linux 18.04
- NeoKylin 6.0 SP3 (China only)
- Chipset : Intel C246 Chipset
- Memory : 4 Dimm Slots; Up to 64GB 2666Mhz Non-ECC & ECC DDR4 Memory
- Graphics : One PCI Express® x16 Gen 3 Graphics card up to 55W
- Entry 3D cards: AMD Radeon Pro WX 4100
- AMD Radeon Pro WX 3100
- AMD Radeon Pro WX 3200 (coming soon)
- AMD Radeon Pro WX 2100
- NVIDIA Quadro P1000
- NVIDIA Quadro P620
- NVIDIA Quadro P400
- Professional 2D cards: Intel HD Graphics 630
- Storage : Support for up to (1) M.2 PCIe SSD on motherboard
- slot and Up to (1) 3.5 SATA or
- (2) 2.5 SATA. Support for
- Intel Ready Mode technology
- Support for up to (1) additional PCIe SSD on
- Dell Precision Ultra-Speed drive (x8) with
- active cooling
- 2.5, 500 GB/1 TB, 7200, SATA, HDD
- 2.5, 500 GB, 7200, SATA, HDD FIPS Self
- Storage : Encrypting Opal 2.0
- 2.5, 2 TB, 5400, SATA, HDD
- 2.5, 256 GB/512 GB/1 TB, SATA 20, SSD
- 2.5, 512 GB/1 TB, SATA, SSD SED
- 3.5, 500 GB/1 TB/2 TB/4 TB/8TB, 7200, SATA, HDD
- 3.5, 4 TB, 5400, SATA, HDD
- M.2 2280, 256 GB/512 GB/1 TB/2 TB PCIe 40, SSD
- M.2 2280, 512 GB/1 TB PCIe 50, SSD
- M.2 2280, 512 PCIe 40, SSD SED (Opal 2.0)
- Storage Controller Integrated: Intel Rapid storage Controller 12.0
- supporting SATA 6Gb/s and host based RAID 0/1
- Communications Integrated: Intel Ethernet Connection I219-LM 10/100/1000
- Optional: Intel 10/100/1000 PCIe Gigabit Networking card
- Aquantia AQtion AQN 108 5/2.5 GbE NIC Adapter
- Optional: Wireless / Bluetooth w/ vPro support
- Audio Controller : Integrated Realtek ALC3234 High Definition Audio Codec (2 Channel)
- Speakers : Internal Speaker; Optional Dell 2.0 stereo speaker
- systems available and Dell sound bar for select flatpanel displays
- Add-in cards : Thunderbolt 3 PCIe Card
- Support for up to (1) additional PCIe SSD on
- Dell Precision Ultra-Speed drive (x8) with
- active cooling
- Serial Port PCIe Card
- Parallel Port PCIe Card
- Smart Card Reader (CAC/PIV)
- Remote Access Host Card, Tera2
- USB Type-C 3.1 Gen 2 PCIe Card
- I/O Ports : Front :
- 2 USB 2.0 Type A
- 1 USB 3.1 Type A (5Gb)
- 1 USB 3.1 Type C (10Gb), data only
- 1 Universal Audio Jack
- 1 Internal SD Card reader (Optional)
- Internal :
- 3 SATA 6Gb/s
- Rear :
- 2 USB 2.0 Type A (with SmartPower)
- 4 USB 3.1 Type A (5Gb)
- 2 PS2
- 2 Display Port
- 1 Optional Port (VGA, HMDI 2.0, DP++ 1.2, Type
- C w/DP-Alt mode)
- 1 RJ45 Network Connector
- 1 Serial
- 1 Audio Line out
- 2 SMA
- Storage devices Optional: 1 optical drive: DVD-ROM; DVD+/-RW, Blu Ray Writer
- (Note: optical drive not available with Smart Card Reader (CAC/PIV))
- SD Card Reader

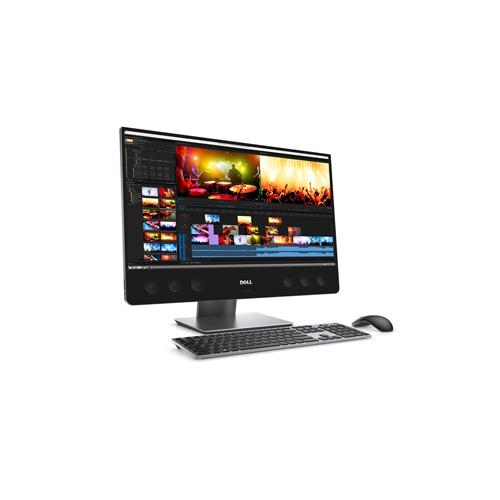

Dell Precision 27 inch 5720 All in One Workstation
- Processor :Intel Xeon Processor E3 1200 v6 Family; 7th generation Intel Core i7, i5
- Intel Xeon Processor E3 1200 v5 Family; 6th generation Intel Core i7, i5
- Intel Turbo Boost technology optional vPro Technology
- Operating System :Windows 10 Pro (64-bit)
- Windows 10 Pro (64-bit) with downgrade rights to Windows 7 Professional (64-bit)
- Canonical Ubuntu 16.04
- Red Hat Enterprise Linux 7.3
- NeoKylin 6.0
- Chipset : Intel C236
- Display Options : 27-inch UltraSharp Anti-Glare 4K Ultra HD (3840 x 2160) InfinityEdge display (350 cd/m2)
- 27 inch UltraSharp 4K Ultra HD (3840 x 2160) projected capacitive touch display (300 cd/m2)
- LED backlit, 100% Adobe RGB (typical), Dell PremierColor, >1000:1 contrast ratio, <5ms refresh, IPS
- 170o wide viewing angle – 85o/85o/85o/85o
- Dell PremierColor software selection
- Graphics : AMD Radeon Pro WX 7100 with 8GB GDDR5 dedicated memory
- AMD Radeon Pro WX 4150 with 4GB GDDR5 dedicated memory
- Memory : 4 DIMM Slots; Up to 64GB 2133Mhz Non-ECC DDR4 Memory Up to 64GB 2133Mhz ECC DDR4 Memory
- Storage : Support for up to (1) M.2 PCIe SSD on motherboard slot and up to (2) 2.5 SATA
- Support for Intel Ready Mode technology
- Hard Disk Drive (HDD): 500GB, 500GB SED (Check regional availability), 1TB 7200RPM SATA
- 6Gb/s; 1TB Hybrid, 2TB 5400RPM SATA 6Gb/s
- Solid State Drive (SSD): 256GB, 360GB, 512GB, 500GB SED (Check regional availability), 1TB
- 2.5 SATA 6Gb/s
- M.2 PCIe NVMe Solid State Drive (M.2 SSD): 256GB, 512GB, 1TB
- M.2 PCIe SSD (NVMe)
- 256GB, 500GB or 1TB
- 2.5 SATA SSD
- 256GB, 360GB, 512GB or 1TB
- 2.5” SATA 7200 RPM
- 500GB or 1TB
- 2.5 SATA 5400 RPM
- 1TB Hybrid or 2TB
- Self Encrypting Drives
- 500GB 7200 RPM or 512GB 2.5 SSD
- Storage Controller Integrated: Intel Rapid storage Controller 12.0 supporting SATA 6Gb/s and host based RAID 0/1
- Communications :
- Integrated: Intel Ethernet Connection I219-LM 10/100/1000 Networking card
- Optional: Intel Dual Band Wireless-AC 8260 2x2 802.11ac, Miracast, WiDi, Bluetooth 4.2
- Qualcomm QCA61x4A 802.11ac Dual Band (2x2) Wireless Adapter + Bluetooth 4.1 LE M.2 Wireless Card
- Audio : Integrated ten speaker sound system powered by dynamic amplifiers capable of 50W per channel
- coupled with Jack Joseph Puig Signature Series powered by Waves MaxxAudio® Pro Over 90dB
- SPL tightly controlled over 70Hz 20KHz
- Stereo Power (watts): 50W per channel
- Frequency response: 70Hz 20 KHz
- Webcam : HD (720p) webcam with wide, quad array farfield digital microphones; Windows Hello Compliant
- infrared facial recognition camera
- Ports and Connectors :
- Side ports: USB 3.0 with PowerShare (1), SD-card reader (SD, SDHC, SDXC, MMC), audio jack
- Back ports: USB 3.0 (4), HDMI-out (1), DisplayPort 1.2 (1), Thunderbolt™ 3 (supporting Type-C
- DisplayPort, USB3.1, PS) (2), Gigabit Ethernet, audio out (1)
- Chassis : All-in-one constructed of CNC machined aluminum
- Dimensions :
- Non-touch: Height: 16.9 inches (430mm) / Width: 24.1 inches (613mm) / Depth 3.05 inches (81.6mm)
- Touch: Height: 17.1 inches (435mm) / Width: 24.6 inches (625mm) / Depth 3.16 inches (80.2mm)
- Weight: Non-touch: 24.9 pounds (13.017kg)
- Touch: 37.3 pounds (17.325kg)
- Systems Management : Dell Client Command Suite; Out of Band management support via vPro
- Power Supply Unit (PSU) : Internal Power Supply Unit; 80 PLUS; 360W EPA Gold; ENERGY STAR Compliant
- Warranty & Support Services :
- 3-Year Limited Hardware Warranty and 3-year NBD On-Site Service after Remote Diagnosis
- Optional: Dell ProSupport is designed to rapidly respond to your business’s needs, help protect
- your investment and sensitive data and provide enhanced proactive support services to help
- reduce risk and complexity within your IT environment
Dell Precision T3620 Win 10 Pro OS workstation
- Processor : Intel Ci7 7700U Processor
- Memory : 8GB DDR4 RAM Memory
- Hard Drive : 1TB Hard Drive Disk
- Operating System : Win 10 Pro Operating System
- Display : Not Bundled
- Graphics: 2 GB NVIDIA Quadro P600 2GB
- Connectivity : DVD RW
- Warranty : 3Years +AD Warranty
Dell Precision 17 inch 7740 Mobile Workstation
- Processor :
- Intel Xeon E 2286M, 8 Core Xeon, 16M Cache, 2.40GHz up to 5.00GHz Turbo, 45W, vPro
- Intel Core Processor i9 9980HK, 8 Core, 16MB Cache, 2.40GHz up to 5.00GHz Turbo, 45W
- Intel Core Processor i9 9880H, 8 Core, 16MB Cache, 2.30GHz up to 4.80GHz Turbo, 45W, vPro
- Intel Xeon E 2276M, 6 Core Xeon, 12M Cache, 2.80GHz up to 4.70GHz Turbo, 45W, vPro
- Intel Core Processor i7 9850H, 6 Core, 12M Cache, 2.60GHz up to 4.6GHz Turbo, 45W, vPro
- Intel Core Processor i7 9750H, 6 Core, 12M Cache, 2.60GHz up to 4.5GHz Turbo, 45W
- Intel Core Processor i5 9400H, 4 Core, 8M Cache, 2.50GHz up to 4.3GHz Turbo, 45W, vPro
- Operating System :Microsoft Windows 10 Pro 64 bit, Microsoft Windows 10 Pro for Workstations 64 bit
- Microsoft Windows 10 Home 64 bit, Ubuntu 18.04 LTS 64-bit, RedHat 8.0
- Chipset : Intel Mobile CM246
- Memory :
- 128 GB, 4x32 GB, DDR4, 2666MHz, ECC SDRAM
- 16 GB, 2x8 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- 32 GB, 2x16 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- 32 GB, 4x8 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- 64 GB, 4x16 GB, DDR4, 3200MHz, SuperSpeed, Non-ECC SDRAM
- Graphics : Intel UHD Graphics P630, Intel UHD Graphics 630
- Radeon Pro WX 3200 w/4GB GDDR5
- NVIDIA Quadro RTX 3000 w/6GB GDDR6
- AMD Radeon Pro WX 7130 w/8GB GDDR5
- NVIDIA Quadro RTX 4000 w/8GB GDDR6
- NVIDIA Quadro RTX 5000 w/16GB GDDR6
- Display Options :
- 17.3, HD+, 1366 x 768, Anti Glare, LED Backlight, Nontouch 45% Adobe RGB color gamut
- 17.3, FHD, 1920 x 1080, Anti Glare IPS, Non-touch 100% sRGB color gamut sRGB
- 17.3, UHD, 3840 x 2160, Anti Glare IGZO, Non-touch 100% Adobe RGB color gamut
- Storage Options :
- 2.5 in, 500 GB, 7200 RPM, SATA HDD FIPS
- 2.5 in, 500 GB, 7200 RPM, SATA HDD
- 2.5 in, 1 TB, 7200 RPM, SATA HDD
- 2.5 in, 2 TB, 5400 RPM, SATA HDD
- M.2 2280, 256 GB, PCIe, Class 40 SSD
- M.2 2280, 512 GB, PCIe, Class 40 SSD
- M.2 2280, 1 TB, PCIe, Class 40 SSD
- M.2 2280, 2 TB, PCIe, Class 40 SSD
- M.2 2280, 512 GB, PCIe, Class 40 SSD OPAL SED
- M.2 2280, 1 TB, PCIe, Class 40 SSD OPAL SED
- M.2 2280, 512 GB, PCIe, Class 50 SSD
- M.2 2280, 1 TB, PCIe, Class 50 SSD
- Communication Options:
- Qualcomm QCA61x4A 802.11ac Dual Band (2x2) Wireless Adapter+ Bluetooth 4.2
- Intel Dual Band Wireless AC 9560 (802.11ac) 2x2 (No Bluetooth)
- Intel Dual Band Wireless AC 9560 (802.11ac) 2x2 + Bluetooth 5.0
- Intel WiFi 6 AX200 2x2 .11ax 160MHz + Bluetooth 5.0
- Intel WiFi 6 AX200 2x2 .11ax 160MHz (No Bluetooth)
- Intel XMM 7360 LTE Advanced
- Multimedia :
- Dual integrated high quality speakers and
- optional dual integrated noise cancelling
- digital array microphones
- MaxxAudio Pro by Waves
- HD Camera (optional)
- I/O Ports and Connectors :
- 4 x USB 3.1 Gen 1 ports w/PowerShare, 2 x Thunderbolt 3
- type C ports, SD Card reader, mini Display Port 1.4, HDMI
- port 2.0, Ethernet port, Headphone jack, FPR optional, IR
- camera optional, Smartcard reader, contactless Smartcard
- reader optional
- IR Camera (optional)
- Dimensions and Weight
- Height .99” (25.3 mm)
- Width 16.3” (414.2 mm)
- Depth 10.7” (273.7 mm)
- Weight 6.79lbs (3.08Kg)
- Battery :4 Cells, 64 Whr Lithium Ion Polymer, ExpressCharge Capable Battery
- 6 Cells, 97 Whr Lithium Ion Polymer, ExpressCharge Capable Battery
- 6 Cells, 97 Whr Lithium Ion Polymer, Long Life Battery (includes 3 year limited hardware warranty)
- Power Adaptor :s 240W adapter, 7.4mm barrel
Dell 3560 Mobile Workstation
- part number:3560
- Processor: Intel Core Processor i7-1165G7 4 Core, 12M cache, 2.8 GHz up to 4.7 GHz Turbo, 17.55W
- Operating System: Win 10 PRO Preloaded
- Memory: 8GB (1 x 8GB) 3200MHz
- 2 DIMM slots: up to 64GB 3200MHz non ECC
- Graphics: T500 2GB GDDR6
- Display: 15.6 inch FHD (1920x1080) Wide View Anti-Glare LED-backlit 45% NTSC, 60Hz
- Storage 1 slot: 512GB NVMe SSD
- Input: Single Pointing backlit
- Communication Wired: Integrated Intel I219LM 10 100 1000 Gigabit Ethernet Controller
- Wireless LAN & Bluetooth: Intel Wi Fi 6 AX201 2x2 11ax 160MHz + Bluetooth 5.1
- Multimedia: Dual integrated high quality speakers and dual integrated noise cancelling digital array microphones
- MaxxAudio Pro by Waves: Integrated RGB HD Express Sign In Camera I O Ports and Connectors Thunderbolt Type C, 2 x USB 2 Gen 1 (1x power enabled), 1 x HDMI 2, 1 x RJ-45, 1 x Headset jack, 1 x SD card reader, Fingerprint reader
- Dimensions & Weight: Starting Weight: 3.5 lb. (1.58 kg)
- Width: 14.09 358
- Depth: 9.13 232
- Height: 0.42 10.8
- Battery: 4 Cell 63Whr Express Charge
- Weight: 3.5lbs, 1.59kg
- Power Adaptor: 90W C type Charger
- Warranty: 3 year ADP
Dell Precision 7865 Tower Workstation
- Brand : Dell
- Form Factor : Tower
- Model : Precision 7865 Tower Workstation
- Processor : AMD Ryzen Threadripper PRO 5945WX
- Chipset : AMD WRX80
- Operating System : Windows 11 Pro (64-Bit)
- Memory Size : 32 GB
- CPU : 4.1 to 4.5 GHz 12-Core
- GPU : NVIDIA T400 with 4 GB GDDR6 VRAM
- Memory Speed : 3200 MHz DDR4
- PCI Expansion : 2 x PCIe 4.0 x16, 2 x PCIe 4.0 x8
- Optical Drive : 8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support
- Ports : 5 x USB-A 3.0 / 3.1/3.2 Gen 1
- USB-C : 5 x USB 3.1/3.2 Gen 2
- Display : 3 x Mini DisplayPort 1.2 Output
- Total Drive Bays : 2 x 2.5/3.5" (Internal)
- SSD Slots : 1 x M.2 2230, 2280 PCIe 4.0 x4 (In Use), 1 x M.2 2230, 2280 PCIe 4.0 x4 (Available)
- Total Installed Capacity : 1 TB
- Solid State Storage : 1 x 1 TB M.2 NVMe PCIe
- Audio I/O : 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output, 1 x 1/8" / 3.5 mm Line Output
- Built-In Speakers : 1
- Ethernet : 1 x RJ45 (10GbE), 1 x RJ45 (Gigabit)
- Wi-Fi : Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
- Bluetooth : 5.3
- Keyboard : 104-Key Wireless Full-Size Keyboard with Number Pad
- Pointing Device : USB Mouse, Wireless Mouse
- Power Supply : 1350 W with IEC
- AC Input Power : 90 to 264 VAC, 50 / 60 Hz at 16 A
- Operating Temperature : 50 to 95°F / 10 to 35°C
- Color : Black
- Dimensions : 17.74 x 16.45 x 6.94" / 450.6 x 417.83 x 176.28 mm
- Weight : 48.28 lb / 21.9 kg
Dell Precision 3260 Compact Workstation
- Brand : Dell
- Form Factor : Tower
- Model : Precision 3260 Compact Workstation
- Processor : Intel Core i7-13700 (13th Gen)
- Operating System : Windows 11 Pro
- Memory Size : 16 GB
- CPU : 2.1 to 5.2 GHz Performance 8-Core, 1.5 to 4.1 GHz Efficiency 8-Core
- GPU : NVIDIA T1000 with 4 GB GDDR6 VRAM
- Memory Speed : 4800 MHz DDR5
- Optical Drive : None
- Ports : 2 x USB-A 3.1/3.2 Gen 2, 3 x USB-A 3.0 / 3.1/3.2 Gen 1
- USB-C : 1 x USB 3.2 Gen 2x2
- Display : 3 x DisplayPort Output
- Total Drive Bays : 2 x 2.5/3.5" (Internal)
- SSD Slots : 1 x M.2
- Total Installed Capacity : 512 GB
- Solid State Storage : 1 x 512 GB M.2 NVMe PCIe
- Audio I/O : 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output, 1 x 1/8" / 3.5 mm Line Input/Output
- Built-In Speakers : None
- Ethernet : 1 x RJ45 (Gigabit)
- Wi-Fi : Wi-Fi 6E (802.11ax) with MU-MIMO Support
- Keyboard : USB Full-Size Keyboard
- Pointing Device : USB Mouse
- Power Supply : 240 W with IEC
- Color : Black
- Dimensions : 7.48 x 7.01 x 2.83" / 19 x 17.81 x 7.19 cm
- Weight : 3.02 lb / 1.37 kg
Dell Precision 7680 13600HX Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 7680 Workstation
- Processor : Intel Core i5-13600HX vPro (24 MB cache, 14 cores, 20 threads, up to 4.8 GHz, 55 W)
- Operating System : Windows 11 Pro
- Display : 16 inch FHD+ 1920x1200, WVA, 60Hz, anti-glare, non-touch, 45% NTSC, 250 nits, RGB Camera, with Mic
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Memory : 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Graphics : Intel UHD Graphics
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Chassis : Intel Core i5-13600HX, 24MB Cache, 20 Threads, 14 Cores (6P+8E) up to 4.8GHz, 55w, vPro
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Wireless Driver : Wireless Intel AX211 WLAN Driver
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Battery : 83 Wh, 6 Cell, Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 36 Month(s)
Dell Precision 3571 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 3571 Workstation
- Processor : 12th Gen Intel Core i5-12600H, vPro® (18MB cache, 12 core, 16 thread, 2.70 to 4.50 GHz Turbo, 45W)
- Operating System : Windows 11 Pro
- Display : 15.6 inch HD 1366 x 768, 60 Hz, 220 nit, non-touch, RGB HD Camera and Mic with WLAN
- Memory : 8 GB, 1 x 8 GB, DDR5, 4800 MT/s
- Graphics : Intel UMA Graphics
- Storage : 256 GB, M.2 2230, Gen 3 PCIe x4 NVMe, SSD
- Chassis : Intel Core i5-12600H vPro with Integrated graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Wireless Driver : Wireless Intel AX211 WLAN Driver
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Battery : 4 Cell, 64 Wh
- Power Cord : E5 Power Cord 1M for India
- Power : 90W Type-C Power Adapter
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 5770 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 5770 Workstation
- Processor : 12th Gen Intel Core i5-12600H, vPro® (18MB cache, 12 core, 16 thread, 2.70 to 4.50 GHz Turbo, 45W)
- Operating System : Windows 11 Pro
- Display : 17 inch FHD+ non-touch, 1920 x 1200, 60Hz, 500 nits WLED, 100% sRGB, Low BL w/ IR Cam
- Memory : 8 GB, 1 x 8 GB, DDR5, 4800 MT/s
- Graphics : Intel UMA Graphics
- Storage : 256 GB, M.2 2230, Gen 3 PCIe x4 NVMe, SSD
- Chassis : Intel Core i5-12600H vPro with integrated graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Wireless Driver : Wireless Intel AX211 WLAN Driver
- Keyboard : English International backlit keyboard
- Battery : 3 Cell, 56 Wh, Lithium Ion
- Power Cord : Black Power Cord (IN)
- Power : 90W E5 Type C Power Adapter
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 5680 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 5680 Workstation
- Processor : Intel Core i5-13600H, vPro Enterprise (18MB Cache, 12 Cores, 16 Threads, 2.8-4.8 GHz Turbo, 45W)
- Operating System : Windows 11 Pro
- Display : 16 inch FHD+ non-touch, 1920 x 1200, 60Hz, 500 nits WLED, 100% DCI-P3, Low BL w/ IR Cam
- Memory : 16 GB, 1 x 16 GB, LPDDR5, 6400MT/s
- Graphics : Intel Integrated Graphics
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe SSD, Class 35
- Power : 100W E5 Type C Power Adapter
- Chassis : Intel Core i5-13600H vPro, 16GB with integrated graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 7780 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 7780 Workstation
- Processor : Intel Core i5-13600HX vPro (24 MB cache, 14 cores, 20 threads, up to 4.8 GHz, 55 W)
- Operating System : Windows 11 Pro
- Display : 17 inch FHD 1920x1080 WVA, 60Hz, anti-glare, non-touch, 99% DCI-P3, 500 nits, RGB Camera, with Mic
- Memory : 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Graphics : Intel UHD Graphics
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Power : 100W E5 Type C Power Adapter
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Chassis : Intel Core i5-13600HX, 24MB Cache, 20 Threads, 14 Cores (6P+8E) up to 4.8GHz, 55w, vPro
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Battery : 83 Wh, 6 Cell, Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 36 Month(s)
Dell Precision 7670 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 7670 Workstation
- Processor : 12th Gen Intel Core i5-12600HX, vPro (18MB cache, 12 cores, 16 threads, 2.50 to 4.60 GHz Turbo)
- Operating System : Windows 11 Pro
- Display : 16 inch, WLED FHD+ 1920 x 1200, 60 Hz, Anti-Glare, Non-Touch, 99% DCIP3, 500 Nits, RGB Cam/Mic WLAN
- Memory : 16 GB, 1 x 16 GB, DDR5, 4800 MHz CAMM Module
- Graphics : Intel UHD Graphics
- Storage : 256 GB, M.2 2230, Gen 4 PCIe x4 NVMe, SSD
- Power : 180W Power Adapter
- Chassis : Intel Core i5-12600HX, 18MB Cache, 16 Threads, 12 Core, 2.5GHz to 4.6GHz, vPro
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Battery : 83 Wh, 6 Cell, Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 36 Month(s)
Dell Precision 3470 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 3470 Workstation
- Processor : 12th Gen Intel Core i5-1250P, vPro (12 MB cache, 12 cores, 16 threads, up to 4.40 GHz Turbo, 28W)
- Operating System : Windows 11 Pro
- Display : 14 inch FHD LCD with 250 nits, non-touch, HD RGB Camera and Microphone, and WLAN
- Memory : 8 GB, 1 x 8 GB, DDR5, 4800 MT/s
- Graphics : Intel Graphics
- Storage : 256 GB, M.2 2230, Gen 3 PCIe NVMe, SSD, Class 35
- Power : 90W Type-C Power Adapter
- Chassis : A Intel i5-1250P 28W Processor with vPro and Intel Integrated Graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit English International Keyboard
- Battery : 4 Cell, 64WHr, standard battery
- Power Cord : E5 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 5480 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 5480 Workstation
- Processor : Intel Core i5-13500H, vPro Essentials (18MB Cache, 12 Cores, 16 Threads, 2.6-4.7 GHz Turbo, 45W)
- Operating System : Windows 11 Pro
- Display : 14 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits WLED, 100% sRGB, Low Blue Light, IR Camera and Mic
- Memory : 16 GB, 2 x 8 GB 6000MHz, LPDDR5
- Camera : HD/IR Camera, ExpressSign-In, No Camera Shutter, Mic
- Graphics : Intel UMA Graphics
- Storage : 256 GB, M.2 2230, Gen 4 PCIe x4 NVMe, SSD
- Power : 100W Power Adapter
- Chassis : i5-13500H vPro Essentials, 16GB, UMA
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlit Keyboard
- Battery : 4 Cell, 72 Wh
- Power Cord : E5 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 3480 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 3480 Workstation
- Processor : 13th Gen Intel Core i5-1335U, vPro Essentials (12MB, 10 core 12 thread 1.30 - 4.60GHz Turbo, 15W)
- Operating System : Windows 11 Pro
- Display : 14 inch FHD LCD with 250 nits, Non-touch, FHD RGB Camera and Microphone, and WLAN
- Memory : 8 GB, 1 x 8 GB, DDR4, 3200 MT/s, Non-ECC, SODIMM
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Graphics : Intel Graphics
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35
- Power : 65W AC adapter, USB Type-C, TCO Gen9 compliant
- Chassis : Intel i5-1335U 15W Processor with Intel Integrated Graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit English International Keyboard
- Battery : 3 Cell, 42 Wh
- Power Cord : E4 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 5570 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 5570 Workstation
- Processor : 12th Gen Intel Core i5-12600H, vPro (18MB cache, 12 core, 16 thread, 2.70 to 4.50 GHz Turbo, 45W)
- Operating System : Windows 11 Pro
- Display : 15.6 inch FHD+ 1920 x 1200, 60Hz, 500 nits, non-touch,w/Prem Panel Guar, 100% sRGB, Low BL w/ IR Cam
- Memory : 8 GB, 1 x 8 GB, DDR5, 4800 MT/s
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Graphics : Intel UMA Graphics
- Storage : 256 GB, M.2, PCIe x4 NVMe, SSD, Class 35
- Power : 130W E5 Type C Power Adapter (EPEAT)
- Chassis : Intel Core i5-12600H vPro with integrated graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader
- Battery : 6 Cell, 86 Wh, Lithium Ion, ExpressCharge Capable
- Power Cord : Black Power Cord (IN)
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 3580 Mobile Workstation
- Brand : Dell
- Form Factor : Mobile
- Model : Precision 3580 Workstation
- Processor : 13th Gen Intel Core i5-1335U, vPro Essentials (12MB, 10 core 12 thread 1.30 - 4.60GHz Turbo, 15W)
- Operating System : Windows 11 Pro
- Display : 15.6 inch FHD 1920 x 1080, 60 Hz, 250 nits, non-touch, RGB FHD Camera and Mic with WLAN
- Memory : 8 GB, 1 x 8 GB, DDR4, 3200 MT/s, Non-ECC, SODIMM
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Graphics : Intel Graphics
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Power : 65W AC adapter, USB Type-C, TCO Gen9 compliant
- Chassis : Intel i5-1335U 15W Processor with Integrated Graphics
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Battery : 3 Cell, 42 Wh
- Power Cord : E4 Power Cord 1M for India
- Dell Services : Hardware Support : Basic Onsite Service with Hardware Support, 12 Month(s)
Dell Precision 3460 13th Gen Small Form Factor Workstation
Dell Precision 3460 i3 13100 13th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i3 13100 13th Gen Small Form Factor Workstation
- Processor Structure : 13th Gen Intel Core i3-13100 (12 MB cache, 4 cores, 8 threads, 3.40 GHz to 4.50 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 i5 13500 13th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i5 13500 13th Gen Small Form Factor Workstation
- Processor Structure : 13th Gen Intel Core i5-13500 (24 MB cache, 14 cores, 20 threads, 2.50 GHz to 4.80 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 i7 13700 13th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i7 13700 13th Gen Small Form Factor Workstation
- Processor Structure : 13th Gen Intel Core i7-13700 (30 MB cache, 16 cores, 24 threads, 2.10 GHz to 5.20 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 i9 13900 13th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i9 13900 13th Gen Small Form Factor Workstation
- Processor Structure : 13th Gen Intel Core i9-13900 (36 MB cache, 24 cores, 32 threads, 2.00 GHz to 5.60 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 Intel 14th Gen 16GB RAM SFF Workstation
Dell Precision 3460 i3 14100 14th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i3 14100 14th Gen Small Form Factor Workstation
- Processor Structure : Intel Core i3 14100 14th Gen (12 MB cache, 4 cores, 8 threads, 3.5 GHz to 4.7 GHz, 60W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 i5 14600 14th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i5 14600 14th Gen Small Form Factor Workstation
- Processor Structure : Intel Core i5 14600 14th Gen (24 MB cache, 14 cores, 20 threads, 2.7 GHz to 5.2 GHz, 65W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 i7 14700 14th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i7 14700 14th Gen Small Form Factor Workstation
- Processor Structure : Intel Core i7 14700 14th Gen (33 MB cache, 20 cores, 28 threads, 2.1 GHz to 5.4 GHz, 65W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3460 i9 14900 14th Gen Small Form Factor Workstation
- Brand : Dell
- Shape Factor: Small Form Factor Workstation
- Product : Dell Precision 3460 i9 14900 14th Gen Small Form Factor Workstation
- Processor Structure : Intel Core i9 14900 14th Gen (36 MB cache, 24 cores, 32 threads, 2.0 GHz to 5.8 GHz, 65W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3460 SFF with 260W (80 Plus Bronze) PSU, RPL and ADL Compatible
Dell Precision 3260 Intel 13th Gen Compact Workstation
Dell Precision 3260 13th Gen Intel i3 13100 Compact Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3260 13th Gen Intel i3 13100 Compact Workstation
- Processor Structure : 13th Gen Intel Core i3 13100 (12 MB cache, 4 cores, 8 threads, 3.40 GHz to 4.50 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia Quadro RTX 3000, 6 GB GDDR6, low profile, 4 mDP
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3260 240W A/C Adapter, TCO9, RPL
Dell Precision 3260 13th Gen Intel i5 13600 Compact Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3260 13th Gen Intel i5 13600 Compact Workstation
- Processor Structure : 13th Gen Intel Core i5-13600 (24 MB cache, 14 cores, 20 threads, 2.70 GHz to 5.00 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia Quadro RTX 3000, 6 GB GDDR6, low profile, 4 mDP
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3260 240W A/C Adapter, TCO9, RPL
Dell Precision 3260 13th Gen Intel i7 13700 Compact Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3260 13th Gen Intel i7 13700 Compact Workstation
- Processor Structure : 13th Gen Intel Core i7-13700 (30 MB cache, 16 cores, 24 threads, 2.10 GHz to 5.20 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia Quadro RTX 3000, 6 GB GDDR6, low profile, 4 mDP
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3260 240W A/C Adapter, TCO9, RPL
Dell Precision 3260 13th Gen Intel i9 13900 Compact Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3260 13th Gen Intel i9 13900 Compact Workstation
- Processor Structure : 13th Gen Intel Core i9-13900 (36 MB cache, 24 cores, 32 threads, 2.00 GHz to 5.60 GHz Turbo, 65 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia Quadro RTX 3000, 6 GB GDDR6, low profile, 4 mDP
- RAM: 16 GB: 1 x 16 GB, DDR5, 5600MT/s, SO-DIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3260 240W A/C Adapter, TCO9, RPL
Dell Precision 3680 Intel 14th Gen Tower Workstation
Dell Precision 3680 14th Gen Intel i3 14100 Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3680 14th Gen Intel i3 14100 Tower Workstation
- Processor Structure : Intel Core i3 14100 14th Gen (12 MB cache, 4 cores, 8 threads, 3.5 GHz to 4.7 GHz, 60W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 8GB: 1 x 8 GB, DDR5, 4400 MT/s, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3680 Tower with 300W (80 Plus Platinum) PSU
Dell Precision 3680 14th Gen Intel i5 14600 Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3680 14th Gen Intel i5 14600 Tower Workstation
- Processor Structure : Intel Core i5 14600 14th Gen (24 MB cache, 14 cores, 20 threads, 2.7 GHz to 5.2 GHz, 65W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 8GB: 1 x 8 GB, DDR5, 4400 MT/s, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3680 Tower with 300W (80 Plus Platinum) PSU
Dell Precision 3680 14th Gen Intel i7 14700 Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3680 14th Gen Intel i7 14700 Tower Workstation
- Processor Structure : Intel Core i7 14700 14th Gen (33 MB cache, 20 cores, 28 threads, 2.1 GHz to 5.4 GHz, 65W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 8GB: 1 x 8 GB, DDR5, 4400 MT/s, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3680 Tower with 300W (80 Plus Platinum) PSU
Dell Precision 3680 14th Gen Intel i9 14900 Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 3680 14th Gen Intel i9 14900 Tower Workstation
- Processor Structure : Intel Core i9 14900 14th Gen (36 MB cache, 24 cores, 32 threads, 2.0 GHz to 5.8 GHz, 65W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Integrated Graphics
- RAM: 8GB: 1 x 8 GB, DDR5, 4400 MT/s, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 - Black
- Power: Precision 3680 Tower with 300W (80 Plus Platinum) PSU
Dell Precision 7875 AMD Tower Workstation
Dell Precision 7875 AMD Ryzen Threadripper PRO 7945WX Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 7875 AMD Ryzen Threadripper PRO 7945WX Tower Workstation
- Processor Structure : AMD Ryzen Threadripper PRO 7945WX (64 MB cache, 12 cores, 24 threads, 4.7GHz to 5.3GHz, 350 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 7875 Tower 1000W Chassis (WW 2SATA Flexbay)
Dell Precision 7875 AMD Ryzen Threadripper PRO 7965WX Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 7875 AMD Ryzen Threadripper PRO 7965WX Tower Workstation
- Processor Structure : AMD Ryzen Threadripper PRO 7965WX (128 MB cache, 24 cores, 48 threads, 4.2GHz to 5.3GHz, 350 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 7875 Tower 1000W Chassis (WW 2SATA Flexbay)
Dell Precision 7875 AMD Ryzen Threadripper PRO 7985WX Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 7875 AMD Ryzen Threadripper PRO 7985WX Tower Workstation
- Processor Structure : AMD Ryzen Threadripper PRO 7985WX (256 MB cache, 64 cores, 128 threads, 3.2GHz to 5.1GHz, 350 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 7875 Tower 1000W Chassis (WW 2SATA Flexbay)
Dell Precision 7875 AMD Ryzen Threadripper PRO 7995WX Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 7875 AMD Ryzen Threadripper PRO 7995WX Tower Workstation
- Processor Structure : AMD Ryzen Threadripper PRO 7995WX (384 MB cache, 96 cores, 192 threads, 2.5GHz to 5.1GHz, 350 W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 7875 Tower 1000W Chassis (WW 2SATA Flexbay)
Dell Precision 5860 Tower Workstation
Dell Precision 5860 Intel Xeon W3 2423 Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 5860 Intel Xeon W3 2423 Tower Workstation
- Processor Structure : Intel Xeon W3-2423 (15 MB cache, 6 cores, 12 threads, 2.1 GHz to 4.2 GHz Turbo, 120 W)
- Operating System : Windows 11 Pro for Workstations (6 cores), English
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : [C1] Internal M.2 SSD Boot with Dual SATA Flexbay
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 5860 Tower 750W Chassis (2SATA Flexbay L6)
Dell Precision 5860 Intel Xeon W5 2445 Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 5860 Intel Xeon W5 2445 Tower Workstation
- Processor Structure : Intel Xeon W5-2445 (26.25 MB cache, 10 cores, 20 threads, 3.1 GHz to 4.6 GHz Turbo, 175 W)
- Operating System : Windows 11 Pro for Workstations (6 cores), English
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : [C1] Internal M.2 SSD Boot with Dual SATA Flexbay
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 5860 Tower 750W Chassis (2SATA Flexbay L6)
Dell Precision 5860 Intel Xeon W7 2475X Tower Workstation
- Brand : Dell
- Shape Factor: Tower Workstation
- Product : Dell Precision 5860 Intel Xeon W7 2475X Tower Workstation
- Processor Structure : Intel Xeon W7-2475X (37.5 MB cache, 20 cores, 40 threads, 2.6 GHz to 4.8 GHz Turbo, 225 W)
- Operating System : Windows 11 Pro for Workstations (6 cores), English
- Graphics Card: Nvidia T400, 4 GB GDDR6, 3 mDP to DP adapters
- RAM: 16 GB: 1 x 16 GB, DDR5, 4800 MT/s, RDIMM, ECC
- Storage : [C1] Internal M.2 SSD Boot with Dual SATA Flexbay
- Keyboard : Dell Multimedia Keyboard-KB216 - US International (QWERTY) - Black
- Mouse: Dell USB Optical Mouse-MS116 (EPEAT) - Black
- Power: Precision 5860 Tower 750W Chassis (2SATA Flexbay L6)
Dell New Precision 5690 Intel Ultra vPro Mobile Workstation
Dell New Precision 5690 Intel Core Ultra 5 135H vPro Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 5690 Intel Core Ultra 5 135H vPro Mobile Workstation
- Processor Structure : Intel Core Ultra 5 135H vPro Enterprise (18 MB cache, 14 cores, 18 threads, up to 4.6 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Arc Pro Graphics
- Display Size: 16 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, IPS, 100% DCI-P3, Low Blue Light, IR Camera and Mic
- RAM: 16 GB LPDDR5x 7467 MT/s
- Storage : 256GB, M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
- Wireless : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader & AI hotkey
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Power : 100W E5 Type C Power Adapter
Dell New Precision 5690 Intel Core Ultra 7 155H vPro Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 5690 Intel Core Ultra 7 155H vPro Mobile Workstation
- Processor Structure : Intel Core Ultra 7 155H vPro Essentials (24 MB cache, 16 cores, 22 threads, up to 4.8 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Arc Pro Graphics
- Display Size: 16 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, IPS, 100% DCI-P3, Low Blue Light, IR Camera and Mic
- RAM: 16 GB LPDDR5x 7467 MT/s
- Storage : 256GB, M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
- Wireless : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader & AI hotkey
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Power : 100W E5 Type C Power Adapter
Dell New Precision 5690 Intel Core Ultra 9 185H vPro Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 5690 Intel Core Ultra 9 185H vPro Mobile Workstation
- Processor Structure : Intel Core Ultra 9 185H vPro Enterprise (24 MB cache, 16 cores, 22 threads, up to 5.1 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Arc Pro Graphics
- Display Size: 16 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, IPS, 100% DCI-P3, Low Blue Light, IR Camera and Mic
- RAM: 16 GB LPDDR5x 7467 MT/s
- Storage : 256GB, M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
- Wireless : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader & AI hotkey
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Power : 100W E5 Type C Power Adapter
Dell Precision 7680 Intel Mobile Workstation
Dell Precision 7680 Intel i5 13600HX vPro Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell Precision 7680 Intel i5 13600HX vPro Mobile Workstation
- Processor Structure : Intel Core i5-13600HX vPro (24 MB cache, 14 cores, 20 threads, up to 4.8 GHz, 55 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel UHD Graphics
- Display Size: 16 inch FHD+ 1920x1200, WVA, 60Hz, anti-glare, non-touch, 45% NTSC, 250 nits, RGB Camera, with Mic
- RAM: 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
Dell Precision 7680 Intel i7 13850HX vPro Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell Precision 7680 Intel i7 13850HX vPro Mobile Workstation
- Processor Structure : Intel Core i7-13850HX vPro (30 MB cache, 20 cores, 28 threads, up to 5.3 GHz, 55 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel UHD Graphics
- Display Size: 16 inch FHD+ 1920x1200, WVA, 60Hz, anti-glare, non-touch, 45% NTSC, 250 nits, RGB Camera, with Mic
- RAM: 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
Dell Precision 7680 Intel i9 13950HX vPro Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell Precision 7680 Intel i9 13950HX vPro Mobile Workstation
- Processor Structure : Intel Core i9-13950HX vPro (36 MB cache, 24 cores, 32 threads, up to 5.5 GHz, 55 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel UHD Graphics
- Display Size: 16 inch FHD+ 1920x1200, WVA, 60Hz, anti-glare, non-touch, 45% NTSC, 250 nits, RGB Camera, with Mic
- RAM: 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 6-cell 100Whr Lithium battery
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
Dell Precision 7780 Intel vPro Mobile Workstation
Dell Precision 7780 Intel i5 13600HX vPro 17 inch Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell Precision 7780 Intel i5 13600HX vPro Mobile Workstation
- Processor Structure : Intel Core i5-13600HX vPro (24 MB cache, 14 cores, 20 threads, up to 4.8 GHz, 55 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel UHD Graphics
- Display Size: 17.3 inch FHD 1920x1080 WVA, 60Hz, anti-glare, non-touch, 99% DCI-P3, 500 nits, RGB Camera, with Mic
- RAM: 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 83 Wh, 6 Cell, Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
Dell Precision 7780 Intel i7 13850HX vPro 17 inch Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell Precision 7780 Intel i7 13850HX vPro Mobile Workstation
- Processor Structure : Intel Core i7-13850HX vPro (30 MB cache, 20 cores, 28 threads, up to 5.3 GHz, 55 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel UHD Graphics
- Display Size: 17.3 inch FHD 1920x1080 WVA, 60Hz, anti-glare, non-touch, 99% DCI-P3, 500 nits, RGB Camera, with Mic
- RAM: 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD HDR IR Camera, Express Sign-In, TNR, Intelligent Privacy, Camera, Microphone, No Camera Shutter
- Battery : 83 Wh, 6 Cell, Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
Dell Precision 7780 Intel i9 13950HX vPro 17 inch Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell Precision 7780 Intel i9 13950HX vPro Mobile Workstation
- Processor Structure : Intel Core i9-13950HX vPro (36 MB cache, 24 cores, 32 threads, up to 5.5 GHz, 55 W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel UHD Graphics
- Display Size: 17.3 inch FHD 1920x1080 WVA, 60Hz, anti-glare, non-touch, 99% DCI-P3, 500 nits, RGB Camera, with Mic
- RAM: 16GB, 1x16GB 4800MT/s CAMM, non-ECC
- Storage : 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Battery : 83 Wh, 6 Cell, Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 180W Power Adapter
Dell New Precision 3591 Intel vPro 8GB RAM 15 inch Mobile Workstation
Dell New Precision 3591 Intel Ultra 5 135H vPro Enterprise Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 3591 Intel Ultra 5 135H vPro Enterprise Mobile Workstation
- Processor Structure : Intel Core Ultra 5 135H vPro Enterprise (18 MB cache, 14 cores, 18 threads, up to 4.6 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 15.6 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard with numeric keypad, 99-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 4 Cell, 64 Wh Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 100W AC adapter, USB Type-C, EPEAT, TCO Gen9 compliant
Dell New Precision 3591 Intel Ultra 7 155H vPro Enterprise Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 3591 Intel Ultra 7 155H vPro Enterprise Mobile Workstation
- Processor Structure : Intel Core Ultra 7 155H vPro Essentials (24 MB cache, 16 cores, 22 threads, up to 4.8 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 15.6 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard with numeric keypad, 99-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 4 Cell, 64 Wh Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 100W AC adapter, USB Type-C, EPEAT, TCO Gen9 compliant
Dell New Precision 3591 Intel Ultra 9 185H vPro Enterprise Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 3591 Intel Ultra 9 185H vPro Enterprise Mobile Workstation
- Processor Structure : Intel Core Ultra 9 185H vPro Enterprise (24 MB cache, 16 cores, 22 threads, up to 5.1 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 15.6 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard with numeric keypad, 99-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 4 Cell, 64 Wh Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 100W AC adapter, USB Type-C, EPEAT, TCO Gen9 compliant
Dell New Precision 5490 Nvidia 1000 Ada Mobile Workstation
Dell New Precision 5490 Intel Ultra 5 135H vPro 16GB RAM Enterprise Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 5490 Intel Ultra 5 135H vPro Enterprise Mobile Workstation
- Processor Structure : Intel Core Ultra 5 135H vPro Enterprise (18 MB cache, 14 cores, 18 threads, up to 4.6 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia RTX 1000 Ada Generation, 6 GB GDDR6
- Display Size: 14 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, WLED, 100% sRGB, Low Blue Light, IR Camera and Mic
- RAM: 16 GB: LPDDR5x, 7467 MT/s, dual-channel (onboard)
- Storage : 256 GB M.2 PCIe NVMe Gen 4 2230 SSD
- Wireless : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader & AI hotkey
- Camera : HD/IR Camera, ExpressSign-In, No Camera Shutter, Mic
- Battery : 4 Cell, 72 Wh Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 100W Power Adapter
Dell New Precision 5490 Intel Ultra 7 155H vPro 16GB RAM Enterprise Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 5490 Intel Ultra 7 155H vPro Enterprise Mobile Workstation
- Processor Structure : Intel Core Ultra 7 155H vPro Essentials (24 MB cache, 16 cores, 22 threads, up to 4.8 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia RTX 1000 Ada Generation, 6 GB GDDR6
- Display Size: 14 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, WLED, 100% sRGB, Low Blue Light, IR Camera and Mic
- RAM: 16 GB: LPDDR5x, 7467 MT/s, dual-channel (onboard)
- Storage : 256 GB M.2 PCIe NVMe Gen 4 2230 SSD
- Wireless : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader & AI hotkey
- Camera : HD/IR Camera, ExpressSign-In, No Camera Shutter, Mic
- Battery : 4 Cell, 72 Wh Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 100W Power Adapter
Dell New Precision 5490 Intel Ultra 9 185H vPro 32GB RAM Enterprise Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 5490 Intel Ultra 9 185H vPro Enterprise Mobile Workstation
- Processor Structure : Intel Core Ultra 9 185H vPro Enterprise (24 MB cache, 16 cores, 22 threads, up to 5.1 GHz, 45W)
- Operating System : Windows 11 Pro
- Graphics Card: Nvidia RTX 1000 Ada Generation, 6 GB GDDR6
- Display Size: 14 inch FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, WLED, 100% sRGB, Low Blue Light, IR Camera and Mic
- RAM: 32 GB: LPDDR5x, 7467 MT/s, dual-channel (onboard)
- Storage : 256 GB M.2 PCIe NVMe Gen 4 2230 SSD
- Wireless : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
- Keyboard : International English Backlight Keyboard with fingerprint reader & AI hotkey
- Camera : HD/IR Camera, ExpressSign-In, No Camera Shutter, Mic
- Battery : 4 Cell, 72 Wh Lithium Ion Polymer
- Power Cord : E5 Power Cord 1M for India
- Power : 100W Power Adapter
Dell New Precision 3490 Mobile Workstation
Dell New Precision 3490 Intel Ultra 5 125U vPro Essentials Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 3490 Intel Ultra 5 125U vPro Essentials Mobile Workstation
- Processor Structure : Intel Core Ultra 5 125U vPro Essentials (12 MB cache, 12 cores, 14 threads, up to 4.30 GHz, 15W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 14 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 TLC PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard, 79-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 3 Cell, 42 Wh Lithium Ion Polymer
- Power Cord : E4 Power Cord 1M for India
- Power : 65W AC adapter, USB Type-C, EcoDesign
Dell New Precision 3490 Intel Ultra 7 155U vPro Essentials Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 3490 Intel Ultra 7 155U vPro Essentials Mobile Workstation
- Processor Structure : Intel Core Ultra 7 155U vPro Essentials (12 MB cache, 12 cores, 14 threads, up to 4.80 GHz, 15W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 14 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 TLC PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard, 79-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 3 Cell, 42 Wh Lithium Ion Polymer
- Power Cord : E4 Power Cord 1M for India
- Power : 65W AC adapter, USB Type-C, EcoDesign
Dell New Precision 3590 Intel 15 inch 8GB RAM Mobile Workstation
Dell New Precision 3590 Intel Ultra 5 125U vPro Essentials Mobile Workstation
- Brand : Dell
- Shape Factor: Mobile Workstation
- Product : Dell New Precision 3590 Intel Ultra 5 125U vPro Essentials Mobile Workstation
- Processor Structure : Intel Core Ultra 5 125U vPro Essentials (12 MB cache, 12 cores, 14 threads, up to 4.30 GHz, 15W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 15.6 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 TLC PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard, 79-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 3 Cell, 42 Wh Lithium Ion Polymer
- Power Cord : E4 Power Cord 1M for India
- Power : 65W AC adapter, USB Type-C, EcoDesign
Dell New Precision 3590 Intel Ultra 7 155U vPro Essentials Mobile Workstation
- Brand : Dell
- Form Factor: Mobile Workstation
- Product : Dell New Precision 3590 Intel Ultra 7 155U vPro Essentials Mobile Workstation
- Processor Structure : Intel Core Ultra 7 155U vPro Essentials (12 MB cache, 12 cores, 14 threads, up to 4.80 GHz, 15W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics or Intel Arc Pro Graphics
- Display Size: 15.6 inch FHD 1920x1080, 60Hz, 250 nits, Non-Touch, FHD HDR RGB Camera, Mic, WLAN
- RAM: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, non-ECC
- Storage : 256GB, M.2 2230, Gen4 TLC PCIe NVMe, SSD, Class 35
- Wireless : Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6/6E (WiFi 802.11ax), Bluetooth
- Keyboard : English International non-backlit AI hotkey keyboard, 79-key
- Camera : FHD HDR RGB Camera, TNR, Camera Shutter, Microphone
- Battery : 3 Cell, 42 Wh Lithium Ion Polymer
- Power Cord : E4 Power Cord 1M for India
- Power : 65W AC adapter, USB Type-C, EcoDesign
Dell Precision 3580 13th Gen 15 inch Mobile Workstation
Dell New Precision 3580 13th Gen i5 1335U vPro Workstation
- Brand : Dell
- Form Factor: Mobile Workstation
- Product : Dell New Precision 3580 13th Gen i5 1335U vPro Essentials Mobile Workstation
- Processor Structure : 13th Gen Intel Core i5-1335U, vPro Essentials (12MB, 10 core 12 thread 1.30 - 4.60GHz Turbo, 15W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics
- Display Size: 15.6 inch FHD 1920 x 1080, 60 Hz, 250 nits, non-touch, RGB FHD Camera and Mic with WLAN
- RAM: 8 GB: 1 x 8 GB, DDR4, 3200 MT/s, non-ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Battery : 3 Cell, 42 Wh Lithium Ion Polymer
- Power Cord : E4 Power Cord 1M for India
- Power : 65W AC adapter, USB Type-C, TCO Gen9 compliant
Dell New Precision 3580 13th Gen i7 1355U vPro Essentials Workstation
- Brand : Dell
- Form Factor: Mobile Workstation
- Product : Dell New Precision 3580 13th Gen i7 1355U vPro Essentials Mobile Workstation
- Processor Structure : 13th Gen Intel Core i7-1355U, vPro Essentials (12MB, 10 core 12 thread 1.70 - 5.00GHz Turbo, 15W)
- Operating System : Windows 11 Pro
- Graphics Card: Intel Graphics
- Display Size: 15.6 inch FHD 1920 x 1080, 60 Hz, 250 nits, non-touch, RGB FHD Camera and Mic with WLAN
- RAM: 8 GB: 1 x 8 GB, DDR4, 3200 MT/s, non-ECC
- Storage : 256 GB, M.2, PCIe NVMe, SSD, Class 35
- Wireless : Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card
- Keyboard : Single Pointing Non-Backlit US International Keyboard with numeric keypad
- Camera : FHD Camera, Temporal Noise Reduction, No ExpressSign-In, Camera Shutter, Mic
- Battery : 3 Cell, 42 Wh Lithium Ion Polymer
- Power Cord : E4 Power Cord 1M for India
- Power : 65W AC adapter, USB Type-C, TCO Gen9 compliant
Dell Precision 5820 Desktop Tower Workstation
Compact tower workstation with scalable performance for mainstream industry applications. Featuring professional graphics and Intel Xeon processors.
Processor:
Intel Xeon Processor W Family CPUs (Skylake-W) with up to 10 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System:
Windows 11 Pro
Windows 11 Pro for Workstations
Red Hat Enterprise Linux WS v7.3 with 3 YR RHN
Red Hat Enterprise Linux WS v7.3 with 1 YR RHN
Ubuntu Linux 16.04,FI,WW
Video Card:
Support for 2 PCI Express x16 Gen 3 graphics card2 - up to 600W with maximum of up to 2 x 300W double width graphics cards.
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
NVIDIA NVS 315
Memory:
Four channel memory up to 256GB 2666MHz DDR4 ECC memory. 8 DIMM slots
Storage:
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel® RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC).
M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs Up to 2 x 1TB drives
2.5” SATA SSD Up to 6 x 1TB drives
2.5” SAS SSD Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s Up to 6 x 900GB
2.5” Self Encrypting Drives 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
Ports:
Front:
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Headphone Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header (requires 3rd party splitter cable to support USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.1 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Slots:
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
Dimensions & Weight:
Height: 16.45'' (417.9 mm)
Width: 6.94'' (176.5 mm)
Depth: 20.4'' (518.3 mm)
Starting weight: 32 lb (15.9kg)
Chassis:
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled)
Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
- Windows 11.
- up to 512GB of 2666MHz RDIMM ECC memory (not available with Core X CPUs).
- multichannel thermal design delivers advanced cooling and acoustics, for enhanced cooling and quiet operation when your system is under heavy workloads.
- Intel Xeon processor powers your most demanding applications. Now featuring a new generation of single-socket architecture with up to 18 cores, you can extract maximum performance for your biggest ideas.
Processor:
Intel Xeon Processor W Family CPUs (Skylake-W) with up to 10 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System:
Windows 11 Pro
Windows 11 Pro for Workstations
Red Hat Enterprise Linux WS v7.3 with 3 YR RHN
Red Hat Enterprise Linux WS v7.3 with 1 YR RHN
Ubuntu Linux 16.04,FI,WW
Video Card:
Support for 2 PCI Express x16 Gen 3 graphics card2 - up to 600W with maximum of up to 2 x 300W double width graphics cards.
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
NVIDIA NVS 315
Memory:
Four channel memory up to 256GB 2666MHz DDR4 ECC memory. 8 DIMM slots
Storage:
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel® RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC).
M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs Up to 2 x 1TB drives
2.5” SATA SSD Up to 6 x 1TB drives
2.5” SAS SSD Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s Up to 6 x 900GB
2.5” Self Encrypting Drives 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
Ports:
Front:
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Headphone Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header (requires 3rd party splitter cable to support USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.1 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Slots:
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
Dimensions & Weight:
Height: 16.45'' (417.9 mm)
Width: 6.94'' (176.5 mm)
Depth: 20.4'' (518.3 mm)
Starting weight: 32 lb (15.9kg)
Chassis:
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled)
Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
Dell Precision 7820 Win 11 Tower Workstation
Push your ideas beyond boundaries with the Precision 7820 Tower. Featuring a dual-socket architecture for maximum performance in a compact design.
Processor:
Intel Xeon Bronze 3204 (1.9GHz, 6C, 9.6GT/s 2UPI, 8.25MB Cache, HT [85W] DDR4-2133)
Intel Xeon Silver 4208 (2.1GHz, 3.2GHz Turbo, 8C, 9.6GT/s 2UPI, 11MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4210 (2.2GHz, 3.2GHz Turbo, 10C, 9.6GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4214 (2.2GHz, 3.2GHz Turbo, 12C, 9.6GT/s 2UPI, 16.5MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4215 (2.5GHz, 3.5GHz Turbo, 8C, 9.6GT/s 2UPI,11MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4216 (2.1GHz, 3.2GHz Turbo, 16C, 9.6GT/s 2UPI,22MB Cache, HT [100W] DDR4-2400)
Intel Xeon Gold 5215 (2.5GHz, 3.4GHz Turbo, 10C, 10.4GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2666)
Intel Xeon Gold 5217 (3.0GHz, 3.7GHz Turbo, 8C, 10.4GT/s 2UPI, 11MB Cache, HT [115W] DDR4-2666)
Intel Xeon Gold 5218 (2.3GHz, 3.7GHz Turbo, 16C, 10.4GT/s 2UPI, 22MB Cache, HT [125W] DDR4-2666)
Intel Xeon Gold 5220 (2.2GHz, 3.9GHz Turbo, 18C, 10.4GT/s 2UPI, 24.75MB Cache, HT [125W] DDR4-2666)
Intel Xeon Gold 5222 (3.8GHz, ?GHz Turbo, 4C, 10.4GT/s 2UPI, 5.5MB Cache, HT [105W] DDR4-2933)
Intel Xeon Gold 6230 (2.1GHz, 3.9GHz Turbo, 20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [125W] DDR4-2933)
Intel Xeon Gold 6240 (2.6GHz, 3.9GHz Turbo, 18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6242 (2.8GHz, 3.9GHz Turbo, 16C, 10.4GT/s 3UPI, 22MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6244 (3.6GHz, 4.4GHz Turbo, 8C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6252 (2.1GHz, 3.7GHz Turbo,24C, 10.4GT/s 3UPI, 35.75MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6254 (3.1GHz, 4.0GHz Turbo,18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [200W] DDR4-2933)
Intel Xeon Gold 6248 (2.5GHz, 3.9GHz Turbo,20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [150W] DDR4-2933)
Intel Xeon Platinum 8253 (2.2GHz, ?GHz Turbo,16C, 10.4GT/s 3UPI, 22MB Cache, HT [125W] DDR4-2933)
Intel Xeon Platinum 8256 (3.8GHz, ?GHz Turbo,4C, 10.4GT/s 3UPI,5.5MB Cache, HT [105W] DDR4-2933)
Intel Xeon Platinum 8260 (2.4GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [165W] DDR4-2933)
Intel Xeon Platinum 8268 (2.9GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [205W] DDR4-2933)
Intel Xeon Platinum 8270 (2.7GHz, 4.0GHz Turbo,26C, 10.4GT/s 3UPI, 35.75MB Cache, HT [205W] DDR4-2933)
Intel Xeon Platinum 8276 (2.2GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI,38.5MB Cache, HT [165W] DDR4-2933)
Intel Xeon Platinum 8280 (2.7GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI, 38.5MB Cache, HT [205W] DDR4-2933)
Dual CPU:
Dual Intel Xeon Bronze 3204 (1.9GHz, 6C, 9.6GT/s 2UPI, 8.25MB Cache, HT [85W] DDR4-2133)
Dual Intel Xeon Silver 4208 (2.1GHz, 3.2GHz Turbo, 8C, 9.6GT/s 2UPI, 11MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4210 (2.2GHz, 3.2GHz Turbo, 10C, 9.6GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4214 (2.2GHz, 3.2GHz Turbo, 12C, 9.6GT/s 2UPI, 16.5MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4215 (2.5GHz, 3.5GHz Turbo, 8C, 9.6GT/s 2UPI,11MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4216 (2.1GHz, 3.2GHz Turbo, 16C, 9.6GT/s 2UPI,22MB Cache, HT [100W] DDR4-2400)
Dual Intel Xeon Gold 5215 (2.5GHz, 3.4GHz Turbo, 10C, 10.4GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2666)
Dual Intel Xeon Gold 5217 (3.0GHz, 3.7GHz Turbo, 8C, 10.4GT/s 2UPI, 11MB Cache, HT [115W] DDR4-2666)
Dual Intel Xeon Gold 5218 (2.3GHz, 3.7GHz Turbo, 16C, 10.4GT/s 2UPI, 22MB Cache, HT [125W] DDR4-2666)
Dual Intel Xeon Gold 5220 (2.2GHz, 3.9GHz Turbo, 18C, 10.4GT/s 2UPI, 24.75MB Cache, HT [125W] DDR4-2666)
Dual Intel Xeon Gold 5222 (3.8GHz, ?GHz Turbo, 4C, 10.4GT/s 2UPI, 5.5MB Cache, HT [105W] DDR4-2933)
Dual Intel Xeon Gold 6230 (2.1GHz, 3.9GHz Turbo, 20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [125W] DDR4-2933)
Dual Intel Xeon Gold 6240 (2.6GHz, 3.9GHz Turbo, 18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6242 (2.8GHz, 3.9GHz Turbo, 16C, 10.4GT/s 3UPI, 22MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6244 (3.6GHz, 4.4GHz Turbo, 8C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6252 (2.1GHz, 3.7GHz Turbo,24C, 10.4GT/s 3UPI, 35.75MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6254 (3.1GHz, 4.0GHz Turbo,18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [200W] DDR4-2933)
Dual Intel Xeon Gold 6248 (2.5GHz, 3.9GHz Turbo,20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Platinum 8253 (2.2GHz, ?GHz Turbo,16C, 10.4GT/s 3UPI, 22MB Cache, HT [125W] DDR4-2933)
Dual Intel Xeon Platinum 8256 (3.8GHz, ?GHz Turbo,4C, 10.4GT/s 3UPI,5.5MB Cache, HT [105W] DDR4-2933)
Dual Intel Xeon Platinum 8260 (2.4GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [165W] DDR4-2933)
Dual Intel Xeon Platinum 8268 (2.9GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [205W] DDR4-2933)
Dual Intel Xeon Platinum 8270 (2.7GHz, 4.0GHz Turbo,26C, 10.4GT/s 3UPI, 35.75MB Cache, HT [205W] DDR4-2933)
Dual Intel Xeon Platinum 8276 (2.2GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI,38.5MB Cache, HT [165W] DDR4-2933)
Dual Intel Xeon Platinum 8280 (2.7GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI, 38.5MB Cache, HT [205W] DDR4-2933)
Operating System:
Windows 11 Pro (64 bit)
Red Hat Enterprise Linux 7.3
Ubuntu Linux 18.04 LTS
NeoKylin 6.0 SP3 (China only)
Video Card:
NVIDIA Quadro RTX6000, 24GB, 4DP, VirtualLink (XX20T)
Dual NVIDIA Quadro RTX6000, 24GB, 4DP, VirtualLink (7920T)
NVIDIA Quadro RTX5000, 16GB, 4DP, VirtualLink (XX20T)
Dual NVIDIA Quadro RTX5000, 16GB, 4DP, VirtualLink (7920T)
NVIDIA Quadro RTX4000, 8GB, 3DP, VirtualLink (XX20T)
Dual NVIDIA Quadro RTX4000, 8GB, 8DP, VirtualLink (7920T)
Memory:
8 GB, 1x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
16 GB, 2x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 2x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
48 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 8x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 4x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 8x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 2x4 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 12x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 6x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 8x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 4x64 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
Storage:
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC) M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards. Front FlexBay M.2 NVMe PCIe SSDs
Up to 2 x 1TB drives 2.5” SATA SSD
Up to 6 x 1TB drives 2.5” SAS SSD
Up to 6 x 800GB drives 3.5” SAS 7200 RPM 12Gb/s
Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s
Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s
Up to 6 x 900GB 2.5” Self Encrypting Drives 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
512GB and 1TB Intel M.2 PCIe SED SSD
Ports:
Front:
2 USB 3.2 Type A
2 USB 3.2 Type C
1 Universal Audio Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.2 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Slots:
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
Dimensions & Weight:
Height: 417.9 mm (16.45)
Width: 176.5 mm (6.94)
Depth: 518.3 mm (20.4)
Starting weight: 15.9kg (32 lb)
Chassis:
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3. Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
- Intel Xeon vPro processor Scalable Family powers your most demanding applications. Now featuring a new generation of dual-socket architecture with up to 28 cores per processor (or up to 56 cores when built with dual processors)
- Up to 10th Gen Intel Core and Xeon vPro processors offer businesses the performance, manageability, built-in security features, and stability of Intel architecture and align to a future-proof roadmap.
- Run your software as fast as possible and get real-time results thanks to this memory expandable machine with up to 768GB of 2933 MHz RDIMM memory.
- multichannel thermal design delivers advanced cooling and acoustics for enhanced cooling and quiet operation when your system is under heavy workloads.
Processor:
Intel Xeon Bronze 3204 (1.9GHz, 6C, 9.6GT/s 2UPI, 8.25MB Cache, HT [85W] DDR4-2133)
Intel Xeon Silver 4208 (2.1GHz, 3.2GHz Turbo, 8C, 9.6GT/s 2UPI, 11MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4210 (2.2GHz, 3.2GHz Turbo, 10C, 9.6GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4214 (2.2GHz, 3.2GHz Turbo, 12C, 9.6GT/s 2UPI, 16.5MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4215 (2.5GHz, 3.5GHz Turbo, 8C, 9.6GT/s 2UPI,11MB Cache, HT [85W] DDR4-2400)
Intel Xeon Silver 4216 (2.1GHz, 3.2GHz Turbo, 16C, 9.6GT/s 2UPI,22MB Cache, HT [100W] DDR4-2400)
Intel Xeon Gold 5215 (2.5GHz, 3.4GHz Turbo, 10C, 10.4GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2666)
Intel Xeon Gold 5217 (3.0GHz, 3.7GHz Turbo, 8C, 10.4GT/s 2UPI, 11MB Cache, HT [115W] DDR4-2666)
Intel Xeon Gold 5218 (2.3GHz, 3.7GHz Turbo, 16C, 10.4GT/s 2UPI, 22MB Cache, HT [125W] DDR4-2666)
Intel Xeon Gold 5220 (2.2GHz, 3.9GHz Turbo, 18C, 10.4GT/s 2UPI, 24.75MB Cache, HT [125W] DDR4-2666)
Intel Xeon Gold 5222 (3.8GHz, ?GHz Turbo, 4C, 10.4GT/s 2UPI, 5.5MB Cache, HT [105W] DDR4-2933)
Intel Xeon Gold 6230 (2.1GHz, 3.9GHz Turbo, 20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [125W] DDR4-2933)
Intel Xeon Gold 6240 (2.6GHz, 3.9GHz Turbo, 18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6242 (2.8GHz, 3.9GHz Turbo, 16C, 10.4GT/s 3UPI, 22MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6244 (3.6GHz, 4.4GHz Turbo, 8C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6252 (2.1GHz, 3.7GHz Turbo,24C, 10.4GT/s 3UPI, 35.75MB Cache, HT [150W] DDR4-2933)
Intel Xeon Gold 6254 (3.1GHz, 4.0GHz Turbo,18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [200W] DDR4-2933)
Intel Xeon Gold 6248 (2.5GHz, 3.9GHz Turbo,20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [150W] DDR4-2933)
Intel Xeon Platinum 8253 (2.2GHz, ?GHz Turbo,16C, 10.4GT/s 3UPI, 22MB Cache, HT [125W] DDR4-2933)
Intel Xeon Platinum 8256 (3.8GHz, ?GHz Turbo,4C, 10.4GT/s 3UPI,5.5MB Cache, HT [105W] DDR4-2933)
Intel Xeon Platinum 8260 (2.4GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [165W] DDR4-2933)
Intel Xeon Platinum 8268 (2.9GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [205W] DDR4-2933)
Intel Xeon Platinum 8270 (2.7GHz, 4.0GHz Turbo,26C, 10.4GT/s 3UPI, 35.75MB Cache, HT [205W] DDR4-2933)
Intel Xeon Platinum 8276 (2.2GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI,38.5MB Cache, HT [165W] DDR4-2933)
Intel Xeon Platinum 8280 (2.7GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI, 38.5MB Cache, HT [205W] DDR4-2933)
Dual CPU:
Dual Intel Xeon Bronze 3204 (1.9GHz, 6C, 9.6GT/s 2UPI, 8.25MB Cache, HT [85W] DDR4-2133)
Dual Intel Xeon Silver 4208 (2.1GHz, 3.2GHz Turbo, 8C, 9.6GT/s 2UPI, 11MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4210 (2.2GHz, 3.2GHz Turbo, 10C, 9.6GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4214 (2.2GHz, 3.2GHz Turbo, 12C, 9.6GT/s 2UPI, 16.5MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4215 (2.5GHz, 3.5GHz Turbo, 8C, 9.6GT/s 2UPI,11MB Cache, HT [85W] DDR4-2400)
Dual Intel Xeon Silver 4216 (2.1GHz, 3.2GHz Turbo, 16C, 9.6GT/s 2UPI,22MB Cache, HT [100W] DDR4-2400)
Dual Intel Xeon Gold 5215 (2.5GHz, 3.4GHz Turbo, 10C, 10.4GT/s 2UPI, 13.75MB Cache, HT [85W] DDR4-2666)
Dual Intel Xeon Gold 5217 (3.0GHz, 3.7GHz Turbo, 8C, 10.4GT/s 2UPI, 11MB Cache, HT [115W] DDR4-2666)
Dual Intel Xeon Gold 5218 (2.3GHz, 3.7GHz Turbo, 16C, 10.4GT/s 2UPI, 22MB Cache, HT [125W] DDR4-2666)
Dual Intel Xeon Gold 5220 (2.2GHz, 3.9GHz Turbo, 18C, 10.4GT/s 2UPI, 24.75MB Cache, HT [125W] DDR4-2666)
Dual Intel Xeon Gold 5222 (3.8GHz, ?GHz Turbo, 4C, 10.4GT/s 2UPI, 5.5MB Cache, HT [105W] DDR4-2933)
Dual Intel Xeon Gold 6230 (2.1GHz, 3.9GHz Turbo, 20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [125W] DDR4-2933)
Dual Intel Xeon Gold 6240 (2.6GHz, 3.9GHz Turbo, 18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6242 (2.8GHz, 3.9GHz Turbo, 16C, 10.4GT/s 3UPI, 22MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6244 (3.6GHz, 4.4GHz Turbo, 8C, 10.4GT/s 3UPI, 24.75MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6252 (2.1GHz, 3.7GHz Turbo,24C, 10.4GT/s 3UPI, 35.75MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Gold 6254 (3.1GHz, 4.0GHz Turbo,18C, 10.4GT/s 3UPI, 24.75MB Cache, HT [200W] DDR4-2933)
Dual Intel Xeon Gold 6248 (2.5GHz, 3.9GHz Turbo,20C, 10.4GT/s 3UPI, 27.5MB Cache, HT [150W] DDR4-2933)
Dual Intel Xeon Platinum 8253 (2.2GHz, ?GHz Turbo,16C, 10.4GT/s 3UPI, 22MB Cache, HT [125W] DDR4-2933)
Dual Intel Xeon Platinum 8256 (3.8GHz, ?GHz Turbo,4C, 10.4GT/s 3UPI,5.5MB Cache, HT [105W] DDR4-2933)
Dual Intel Xeon Platinum 8260 (2.4GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [165W] DDR4-2933)
Dual Intel Xeon Platinum 8268 (2.9GHz, 3.9GHz Turbo,24C, 10.4GT/s 3UPI,35.75MB Cache, HT [205W] DDR4-2933)
Dual Intel Xeon Platinum 8270 (2.7GHz, 4.0GHz Turbo,26C, 10.4GT/s 3UPI, 35.75MB Cache, HT [205W] DDR4-2933)
Dual Intel Xeon Platinum 8276 (2.2GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI,38.5MB Cache, HT [165W] DDR4-2933)
Dual Intel Xeon Platinum 8280 (2.7GHz, 4.0GHz Turbo,28C, 10.4GT/s 3UPI, 38.5MB Cache, HT [205W] DDR4-2933)
Operating System:
Windows 11 Pro (64 bit)
Red Hat Enterprise Linux 7.3
Ubuntu Linux 18.04 LTS
NeoKylin 6.0 SP3 (China only)
Video Card:
NVIDIA Quadro RTX6000, 24GB, 4DP, VirtualLink (XX20T)
Dual NVIDIA Quadro RTX6000, 24GB, 4DP, VirtualLink (7920T)
NVIDIA Quadro RTX5000, 16GB, 4DP, VirtualLink (XX20T)
Dual NVIDIA Quadro RTX5000, 16GB, 4DP, VirtualLink (7920T)
NVIDIA Quadro RTX4000, 8GB, 3DP, VirtualLink (XX20T)
Dual NVIDIA Quadro RTX4000, 8GB, 8DP, VirtualLink (7920T)
Memory:
8 GB, 1x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
16 GB, 2x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 2x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
48 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 8x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 4x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 8x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 2x4 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 12x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 6x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 8x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 4x64 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
Storage:
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC) M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards. Front FlexBay M.2 NVMe PCIe SSDs
Up to 2 x 1TB drives 2.5” SATA SSD
Up to 6 x 1TB drives 2.5” SAS SSD
Up to 6 x 800GB drives 3.5” SAS 7200 RPM 12Gb/s
Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s
Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s
Up to 6 x 900GB 2.5” Self Encrypting Drives 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
512GB and 1TB Intel M.2 PCIe SED SSD
Ports:
Front:
2 USB 3.2 Type A
2 USB 3.2 Type C
1 Universal Audio Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.2 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Slots:
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
Dimensions & Weight:
Height: 417.9 mm (16.45)
Width: 176.5 mm (6.94)
Depth: 518.3 mm (20.4)
Starting weight: 15.9kg (32 lb)
Chassis:
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3. Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
Dell Precision 7920 Desktop Tower Workstation
Dell’s most powerful workstation, the Precision 7920 Tower, provides ultimate performance and scalability to grow alongside your vision for even VR and AI applications.
Processor:
One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System:
Windows 11 Pro (64 bit)
Enterprise Linux 7.3
Ubuntu Linux 18.04
NeoKylin 6.0 SP3 (China only)
Video Card:
Support for 4 PCI Express x16 Gen 3 graphics cards, 1 - up to 750W with maximum of 3 x 250W double width graphics cards in 3 slots (dual CPU configuration) and up to 2 x 375W cards 220VAC input supply recommended for 750W configurations and some restrictions apply
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
Memory:
8 GB, 1x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
16 GB, 2x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 2x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
48 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 8x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 4x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
DDR4, 2933 MHz, RDIMM, ECC SDRAM
DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 8x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 2x4 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 12x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 6x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 8x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 4x64 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
DDR4, 2933 MHz, RDIMM, ECC SDRAM
96 GB, 12x8 GB, DDR4, 2933 MHz, RDIMM, ECC
96 GB, 6x16 GB, DDR4, 2933 MHz, RDIMM, ECC
Storage:
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 8 drives with rear FlexBays populated with integrated Intel SATA controller.
Up to 10 x 2.5”/3.5” SATA/SAS drives - requires the Broadcom MegaRAID 9460-16i controller.
Up to 4 front accessible (hot plug) M.2 NVMe PCIe SSDs in FlexBays on enabled PCIe chassis with integrated Intel controller (>2 drives requires dual CPUs. NVMe RAID 0,1 option (Intel RSTe vROC).
Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
Up to 8 x M.2 NVMe PCIe SSDs via 2 x Dell Ultra-Speed Drive Quad x16 cards (maximum requires dual CPUs), NVMe RAID 0,1,10 option on 1st card (Intel RSTe vROC).
M.2 NVMe PCIe SSDs Up to 8* x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16 cards. *Requires dual CPU config.
Front FlexBay M.2 NVMe PCIe SSDs Up to 4* x 1TB drives, 2 drives per CPU. *Requires dual CPU config.
2.5” SATA SSD Up to 10 x 1TB drives
2.5” SAS SSDUp to 10 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s Up to 10 x 4TB
2.5” SAS 10K RPM 12Gb/s Up to 10 x 1.8TB
2.5” SAS 15K RPM 12Gb/s Up to 10 x 900GB 2.5” Self Encrypting Drives512GB 2.5” SED (OPAL/ FIPS (140-2) HDDM.2 PCIe SED SSD512GB and 1TB
Ports:
Front:
1 SD card slot
2 USB 3.2 Type-A ports
2 USB 3.2 Type-C ports (1 with PowerShare)
1 Universal Audio Jack
4 PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.2 Type-A ports (1 support smart Power-On)
1 Serial port
2 RJ45 Network (1 managed optionally)
1 PS/2 Mouse port
1 PS/2 Keyboard port
1 Audio Line-out port
1 Audio Line-in/Microphone port
1 Security cable slot
Slots:
All slots PCIe Gen 3:
2 PCIe x16
2 Additional x16 slots with 2nd CPU
1 PCIe x8 open ended
1 x16 wired as x 4
1 x16 wired as x1
Dimensions & Weight:
Height: 433 mm (17.05) x Width: 218 mm (8.58) x Depth: 566 mm (22.29)
Weight: 20.4kg (45.0 lbs)
Chassis:
Bays: (4) FlexBays and (1) 5.25" FlexBay supporting up to 10 x 3.5" or 2.5" drives (with MegaRAID 9460i-16 controller)
(1) Slimline optical bay option adjacent to 5.25” bay; Available 2nd 5.25" bay – consumes/converts 2 FlexBays, (1) SD slot UHS ll Class 3. Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available
- Windows 11.
- latest Intel Xeon vPro processor Scalable family with up to 28 cores per processor or a total of 56 cores when customized with Dual processors.
- Up to Intel Xeon vPro processors offer businesses the performance, manageability, built-in security features, and stability of Intel architecture and align to a future-proof .
- With up to 3TB of 2666 MHz RDIMM/LRDIMM expandable memory (requires dual processors), you can accelerate your workflow without slowdown.
- multichannel thermal design for advanced cooling and acoustics for a quieter overall system under heavy workloads.
- FlexBay design with up to 10x2.5"/3.5" SATA/SAS drives or up to 4x M.2 or U.2 PCIe NVMe SSD.
Processor:
One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System:
Windows 11 Pro (64 bit)
Enterprise Linux 7.3
Ubuntu Linux 18.04
NeoKylin 6.0 SP3 (China only)
Video Card:
Support for 4 PCI Express x16 Gen 3 graphics cards, 1 - up to 750W with maximum of 3 x 250W double width graphics cards in 3 slots (dual CPU configuration) and up to 2 x 375W cards 220VAC input supply recommended for 750W configurations and some restrictions apply
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
Memory:
8 GB, 1x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
16 GB, 2x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
32 GB, 2x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
48 GB, 4x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 8x8 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
64 GB, 4x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
DDR4, 2933 MHz, RDIMM, ECC SDRAM
DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 8x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
128 GB, 2x4 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 12x16 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
192 GB, 6x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 8x32 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
256 GB, 4x64 GB, DDR4, 2933 MHz, RDIMM, ECC SDRAM
DDR4, 2933 MHz, RDIMM, ECC SDRAM
96 GB, 12x8 GB, DDR4, 2933 MHz, RDIMM, ECC
96 GB, 6x16 GB, DDR4, 2933 MHz, RDIMM, ECC
Storage:
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 8 drives with rear FlexBays populated with integrated Intel SATA controller.
Up to 10 x 2.5”/3.5” SATA/SAS drives - requires the Broadcom MegaRAID 9460-16i controller.
Up to 4 front accessible (hot plug) M.2 NVMe PCIe SSDs in FlexBays on enabled PCIe chassis with integrated Intel controller (>2 drives requires dual CPUs. NVMe RAID 0,1 option (Intel RSTe vROC).
Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
Up to 8 x M.2 NVMe PCIe SSDs via 2 x Dell Ultra-Speed Drive Quad x16 cards (maximum requires dual CPUs), NVMe RAID 0,1,10 option on 1st card (Intel RSTe vROC).
M.2 NVMe PCIe SSDs Up to 8* x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16 cards. *Requires dual CPU config.
Front FlexBay M.2 NVMe PCIe SSDs Up to 4* x 1TB drives, 2 drives per CPU. *Requires dual CPU config.
2.5” SATA SSD Up to 10 x 1TB drives
2.5” SAS SSDUp to 10 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s Up to 10 x 4TB
2.5” SAS 10K RPM 12Gb/s Up to 10 x 1.8TB
2.5” SAS 15K RPM 12Gb/s Up to 10 x 900GB 2.5” Self Encrypting Drives512GB 2.5” SED (OPAL/ FIPS (140-2) HDDM.2 PCIe SED SSD512GB and 1TB
Ports:
Front:
1 SD card slot
2 USB 3.2 Type-A ports
2 USB 3.2 Type-C ports (1 with PowerShare)
1 Universal Audio Jack
4 PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.2 Type-A ports (1 support smart Power-On)
1 Serial port
2 RJ45 Network (1 managed optionally)
1 PS/2 Mouse port
1 PS/2 Keyboard port
1 Audio Line-out port
1 Audio Line-in/Microphone port
1 Security cable slot
Slots:
All slots PCIe Gen 3:
2 PCIe x16
2 Additional x16 slots with 2nd CPU
1 PCIe x8 open ended
1 x16 wired as x 4
1 x16 wired as x1
Dimensions & Weight:
Height: 433 mm (17.05) x Width: 218 mm (8.58) x Depth: 566 mm (22.29)
Weight: 20.4kg (45.0 lbs)
Chassis:
Bays: (4) FlexBays and (1) 5.25" FlexBay supporting up to 10 x 3.5" or 2.5" drives (with MegaRAID 9460i-16 controller)
(1) Slimline optical bay option adjacent to 5.25” bay; Available 2nd 5.25" bay – consumes/converts 2 FlexBays, (1) SD slot UHS ll Class 3. Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available
Dell Precision 7960 Win 11 Tower Workstation
A scalable tower that’s built to power your most demanding software. Features professional graphics and up to a 56 Core Intel Xeon processor.
Processor:
Intel Xeon W5-3423 (30 MB cache, 12 cores, 24 threads, 2.10 GHz to 4.20 GHz, 220 W)
Intel Xeon W5-3425 (30 MB cache, 12 cores, 24 threads, 3.20 GHz to 4.60 GHz, 270 W)
Intel Xeon W5-3433 (45 MB cache, 16 cores, 32 threads, 2.0 GHz to 4.20 GHz, 220 W)
Intel Xeon W5-3435X (45 MB cache, 16 cores, 32 threads, 3.10 GHz to 4.70 GHz, 270 W)
Intel Xeon W7-3445 (52.5 MB cache, 20 cores, 40 threads, 2.60 GHz to 4.80 GHz, 270 W)
Intel Xeon W7-3455 (67.5 MB cache, 24 cores, 48 threads, 2.50 GHz to 4.80 GHz, 270 W)
Intel Xeon W7-3465X (75 MB cache, 28 cores, 56 threads, 2.50 GHz to 4.80 GHz, 300 W)
Intel Xeon W9-3475X (82.5 MB cache, 36 cores, 72 threads, 2.20 GHz to 4.80 GHz, 300 W)
Intel Xeon W9-3495X (105 MB cache, 56 cores, 112 threads, 1.90 GHz to 4.80 GHz, 350 W)
Operating System:
Windows 11 Pro for Workstations
Ubuntu 22.04 LTS, 64-bit
Red Hat Enterprise Linux 8.6
Video Card:
NVIDIA:
NVIDIA RTX A6000, 48 GB GDDR6
NVIDIA RTX A5500, 24 GB GDDR6
NVIDIA RTX A4500, 20 GB GDDR6
NVIDIA RTX A4000, 16 GB GDDR6
NVIDIA RTX A2000, 12 GB GDDR6
NVIDIA T1000, 8 GB GDDR6
NVIDIA T400, 4 GB GDDR6
AMD:
AMD Radeon Pro W6800, 16 GB GDDR6
AMD Radeon Pro W6600, 8 GB GDDR6
AMD Radeon Pro W6300, 2 GB GDDR6
AMD Radeon Pro W6400, 4 GB GDDR6
Memory:
16 GB, 1 x 16 GB, DDR5, 4800 MHz, ECC
32 GB, 1 x 32 GB, DDR5, 4800 MHz, ECC
32 GB, 2 x 16 GB, DDR5, 4800 MHz, ECC
64 GB, 1 x 64 GB, DDR5, 4800 MHz, ECC
64 GB, 2 x 32 GB, DDR5, 4800 MHz, ECC
64 GB, 4 x 16 GB, DDR5, 4800 MHz, ECC
96 GB, 6 x 16 GB, DDR5, 4800 MHz, ECC
128 GB, 1 x 128 GB, DDR5, 4800 MHz, ECC
128 GB, 2 x 64 GB, DDR5, 4800 MHz, ECC
128 GB, 4 x 32 GB, DDR5, 4800 MHz, ECC
128 GB, 8 x 16 GB, DDR5, 4800 MHz, ECC
192 GB, 6 x 32 GB, DDR5, 4800 MHz, ECC
192 GB, 12 x 16 GB, DDR5, 4800 MHz, ECC
256 GB, 1 x 256 GB, DDR5, 4800 MHz, ECC
256 GB, 2 x 128 GB, DDR5, 4800 MHz, ECC
256 GB, 4 x 64 GB, DDR5, 4800 MHz, ECC
256 GB, 16 x 16 GB, DDR5, 4800 MHz, ECC
384 GB, 6 x 64 GB, DDR5, 4800 MHz, ECC
384 GB, 12 x 32 GB, DDR5, 4800 MHz, ECC
512 GB, 2 x 256 GB, DDR5, 4800 MHz, ECC
512 GB, 4 x 128 GB, DDR5, 4800 MHz, ECC
512 GB, 8 x 64 GB, DDR5, 4800 MHz, ECC
512 GB, 16 x 32 GB, DDR5, 4800 MHz, ECC
768 GB, 6 x 128 GB, DDR5, 4800 MHz, ECC
768 GB, 12 x 64 GB, DDR5, 4800 MHz, ECC
1 TB, 4 x 256 GB, DDR5, 4800 MHz, ECC
1 TB, 8 x 128 GB, DDR5, 4800 MHz, ECC
1 TB, 16 x 64 GB, DDR5, 4800 MHz, ECC
1.5 TB, 6 x 256 GB, DDR5, 4800 MHz, ECC
1.5 TB, 12 x 128 GB, DDR5, 4800 MHz, ECC
2 TB, 8 x 256 GB, DDR5, 4800 MHz, ECC
2 TB, 16 x 128 GB, DDR5, 4800 MHz, ECC
3 TB, 12 x 256 GB, DDR5, 4800 MHz, ECC
4 TB, 16 x 256 GB, DDR5, 4800 MHz, ECC
Storage:
Boot drives:
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 4 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS (Post RTS)
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS (Post RTS)
Data drives:
2.5-inch, 500 GB, 7200 RPM, SATA, HDD
3.5-inch, 1 TB, 7200 RPM, SATA, HDD
2.5-inch, 600 GB, 15,000 RPM, SATA, Enterprise HDD
2.5-inch, 1.2 TB, 10,000 RPM, SATA, Enterprise HDD
2.5-inch, 2.4 TB, 10,000 RPM, SATA, Enterprise HDD
3.5-inch, 2 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 4 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 8 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 12 TB, 7200 RPM, SATA, Enterprise HDD
2.5-inch, 1.92 TB, MU, SATA, SSD
Microsoft Office:
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Dell Optimizer for PrecisionSecurity Software:
McAfee Small Business Security 30-day free trial/12-month subscription/36-month subscription
Dell Encryption Personal
Dell Encryption Enterprise
Dell Encryption External Media
Dell Bitlocker Manager
Dell SafeGuard and Response VMW Carbonblack Endpoint Standard
D-Pedigree (Secure Supply Chain Functionality)
Ports:
Front:
2 USB 3.2 Gen 1 ports
1 USB 3.2 Gen 2x2 Type-C port with PowerShare
1 USB 3.2 Gen 2 Type-C port
1 Universal audio port
1 SD-card slot
Rear:
3 USB 3.2 Gen 2 Type-C ports
2 USB 3.2 Gen 1 ports
1 USB 3.2 Gen 1 port with Smart Power On
1 RJ45 Ethernet port, 1 GbE
1 RJ45 Ethernet port, 10 GbE
1 Line-out port
1 Serial port
2 PS2 ports
Optical Drive:
8x DVD-ROM 9.5mm optical drive
8x DVD+/-RW 9.5mm optical drive
16x DVD+/-RW half-height optical drive
Slots:
2 full-height Gen5 PCIe x16 slots
2 full-height Gen4 PCIe x16 slots
2 full-height Gen4 PCIe x8 slots
2 half-height, half-length Gen4 PCIe x8 slots wired as x4 electrically
8 Externally facing (4 front and 4 rear) storage flexbays with optical drive configuration
10 Externally facing (6 front and 4 rear) storage flexbays without optical drive configuration
Up to 8 M.2 NVMe drives (4 front and 4 rear)
Dimensions & Weight:
Height: 430.70 mm (16.90 in.)
Width: 218.00 mm (8.60 in.)
Depth: 538.30 mm (22.30 in.)
Starting weight: 21.04 kg (46.39 lbs.)
Chassis:
Full-size tower
Wireless:
Qualcomm WCN6856-DBS, 2x2 MIMO, 3571 Mbps, 2.4 GHz/5 GHz/6 GHz, Wi-Fi 6E (Wi-Fi 802.11ax), Bluetooth wireless card
Power:
1100 W (for AC input voltage of 108VAC - 180VAC)/1400 W (input voltage 181VAC - 240VAC) –90% efficient (80PLUS Gold Certified)
1500 W (for AC input voltage of 108VAC - 180VAC)/2200 W (input voltage 181VAC - 240VAC) –90% efficient (80PLUS Platinum Certified)
- Windows 11, Ubuntu or Red Hat 8.6.
- Up to 56 Core, 350W Intel Xeon Processor.
- Up to 4x 300W graphics.
- Up to 8 hot-swap NVME drives for up to 32TB of storage.
- Up to 4TB of 4800MHz DDR5, 8-channel memory.
- Keep your system running cool and quietly for extended periods of time.
- FlexBay front and rear access storage.
- up to an 350W Intel Xeon Processor.
- Support advanced engineering and artificial intelligence GPU workloads with up to four 300W graphic cards. An extensive range of professional AMD and NVIDIA graphic options are available.
- Power your system with an up to 2200W PSU.
Processor:
Intel Xeon W5-3423 (30 MB cache, 12 cores, 24 threads, 2.10 GHz to 4.20 GHz, 220 W)
Intel Xeon W5-3425 (30 MB cache, 12 cores, 24 threads, 3.20 GHz to 4.60 GHz, 270 W)
Intel Xeon W5-3433 (45 MB cache, 16 cores, 32 threads, 2.0 GHz to 4.20 GHz, 220 W)
Intel Xeon W5-3435X (45 MB cache, 16 cores, 32 threads, 3.10 GHz to 4.70 GHz, 270 W)
Intel Xeon W7-3445 (52.5 MB cache, 20 cores, 40 threads, 2.60 GHz to 4.80 GHz, 270 W)
Intel Xeon W7-3455 (67.5 MB cache, 24 cores, 48 threads, 2.50 GHz to 4.80 GHz, 270 W)
Intel Xeon W7-3465X (75 MB cache, 28 cores, 56 threads, 2.50 GHz to 4.80 GHz, 300 W)
Intel Xeon W9-3475X (82.5 MB cache, 36 cores, 72 threads, 2.20 GHz to 4.80 GHz, 300 W)
Intel Xeon W9-3495X (105 MB cache, 56 cores, 112 threads, 1.90 GHz to 4.80 GHz, 350 W)
Operating System:
Windows 11 Pro for Workstations
Ubuntu 22.04 LTS, 64-bit
Red Hat Enterprise Linux 8.6
Video Card:
NVIDIA:
NVIDIA RTX A6000, 48 GB GDDR6
NVIDIA RTX A5500, 24 GB GDDR6
NVIDIA RTX A4500, 20 GB GDDR6
NVIDIA RTX A4000, 16 GB GDDR6
NVIDIA RTX A2000, 12 GB GDDR6
NVIDIA T1000, 8 GB GDDR6
NVIDIA T400, 4 GB GDDR6
AMD:
AMD Radeon Pro W6800, 16 GB GDDR6
AMD Radeon Pro W6600, 8 GB GDDR6
AMD Radeon Pro W6300, 2 GB GDDR6
AMD Radeon Pro W6400, 4 GB GDDR6
Memory:
16 GB, 1 x 16 GB, DDR5, 4800 MHz, ECC
32 GB, 1 x 32 GB, DDR5, 4800 MHz, ECC
32 GB, 2 x 16 GB, DDR5, 4800 MHz, ECC
64 GB, 1 x 64 GB, DDR5, 4800 MHz, ECC
64 GB, 2 x 32 GB, DDR5, 4800 MHz, ECC
64 GB, 4 x 16 GB, DDR5, 4800 MHz, ECC
96 GB, 6 x 16 GB, DDR5, 4800 MHz, ECC
128 GB, 1 x 128 GB, DDR5, 4800 MHz, ECC
128 GB, 2 x 64 GB, DDR5, 4800 MHz, ECC
128 GB, 4 x 32 GB, DDR5, 4800 MHz, ECC
128 GB, 8 x 16 GB, DDR5, 4800 MHz, ECC
192 GB, 6 x 32 GB, DDR5, 4800 MHz, ECC
192 GB, 12 x 16 GB, DDR5, 4800 MHz, ECC
256 GB, 1 x 256 GB, DDR5, 4800 MHz, ECC
256 GB, 2 x 128 GB, DDR5, 4800 MHz, ECC
256 GB, 4 x 64 GB, DDR5, 4800 MHz, ECC
256 GB, 16 x 16 GB, DDR5, 4800 MHz, ECC
384 GB, 6 x 64 GB, DDR5, 4800 MHz, ECC
384 GB, 12 x 32 GB, DDR5, 4800 MHz, ECC
512 GB, 2 x 256 GB, DDR5, 4800 MHz, ECC
512 GB, 4 x 128 GB, DDR5, 4800 MHz, ECC
512 GB, 8 x 64 GB, DDR5, 4800 MHz, ECC
512 GB, 16 x 32 GB, DDR5, 4800 MHz, ECC
768 GB, 6 x 128 GB, DDR5, 4800 MHz, ECC
768 GB, 12 x 64 GB, DDR5, 4800 MHz, ECC
1 TB, 4 x 256 GB, DDR5, 4800 MHz, ECC
1 TB, 8 x 128 GB, DDR5, 4800 MHz, ECC
1 TB, 16 x 64 GB, DDR5, 4800 MHz, ECC
1.5 TB, 6 x 256 GB, DDR5, 4800 MHz, ECC
1.5 TB, 12 x 128 GB, DDR5, 4800 MHz, ECC
2 TB, 8 x 256 GB, DDR5, 4800 MHz, ECC
2 TB, 16 x 128 GB, DDR5, 4800 MHz, ECC
3 TB, 12 x 256 GB, DDR5, 4800 MHz, ECC
4 TB, 16 x 256 GB, DDR5, 4800 MHz, ECC
Storage:
Boot drives:
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 4 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS (Post RTS)
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS (Post RTS)
Data drives:
2.5-inch, 500 GB, 7200 RPM, SATA, HDD
3.5-inch, 1 TB, 7200 RPM, SATA, HDD
2.5-inch, 600 GB, 15,000 RPM, SATA, Enterprise HDD
2.5-inch, 1.2 TB, 10,000 RPM, SATA, Enterprise HDD
2.5-inch, 2.4 TB, 10,000 RPM, SATA, Enterprise HDD
3.5-inch, 2 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 4 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 8 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 12 TB, 7200 RPM, SATA, Enterprise HDD
2.5-inch, 1.92 TB, MU, SATA, SSD
Microsoft Office:
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Dell Optimizer for PrecisionSecurity Software:
McAfee Small Business Security 30-day free trial/12-month subscription/36-month subscription
Dell Encryption Personal
Dell Encryption Enterprise
Dell Encryption External Media
Dell Bitlocker Manager
Dell SafeGuard and Response VMW Carbonblack Endpoint Standard
D-Pedigree (Secure Supply Chain Functionality)
Ports:
Front:
2 USB 3.2 Gen 1 ports
1 USB 3.2 Gen 2x2 Type-C port with PowerShare
1 USB 3.2 Gen 2 Type-C port
1 Universal audio port
1 SD-card slot
Rear:
3 USB 3.2 Gen 2 Type-C ports
2 USB 3.2 Gen 1 ports
1 USB 3.2 Gen 1 port with Smart Power On
1 RJ45 Ethernet port, 1 GbE
1 RJ45 Ethernet port, 10 GbE
1 Line-out port
1 Serial port
2 PS2 ports
Optical Drive:
8x DVD-ROM 9.5mm optical drive
8x DVD+/-RW 9.5mm optical drive
16x DVD+/-RW half-height optical drive
Slots:
2 full-height Gen5 PCIe x16 slots
2 full-height Gen4 PCIe x16 slots
2 full-height Gen4 PCIe x8 slots
2 half-height, half-length Gen4 PCIe x8 slots wired as x4 electrically
8 Externally facing (4 front and 4 rear) storage flexbays with optical drive configuration
10 Externally facing (6 front and 4 rear) storage flexbays without optical drive configuration
Up to 8 M.2 NVMe drives (4 front and 4 rear)
Dimensions & Weight:
Height: 430.70 mm (16.90 in.)
Width: 218.00 mm (8.60 in.)
Depth: 538.30 mm (22.30 in.)
Starting weight: 21.04 kg (46.39 lbs.)
Chassis:
Full-size tower
Wireless:
Qualcomm WCN6856-DBS, 2x2 MIMO, 3571 Mbps, 2.4 GHz/5 GHz/6 GHz, Wi-Fi 6E (Wi-Fi 802.11ax), Bluetooth wireless card
Power:
1100 W (for AC input voltage of 108VAC - 180VAC)/1400 W (input voltage 181VAC - 240VAC) –90% efficient (80PLUS Gold Certified)
1500 W (for AC input voltage of 108VAC - 180VAC)/2200 W (input voltage 181VAC - 240VAC) –90% efficient (80PLUS Platinum Certified)
Dell Precision 3660 Intel Core I7 Tower Workstation
Tower workstation designed for outstanding performance scalability. Featuring improved CPU cooling, built-in AI responsiveness, professional graphics and Intel Core processors.
Processor:
12th Generation Intel Core i9-12900K (30 MB cache, 16 cores (8+8), 3.2 GHz to 5.2 GHz, 125 W)
12th Generation Intel Core i9-12900 (30 MB cache, 16 cores (8+8), 2.4 GHz to 5.1 GHz, 65 W)
12th Generation Intel Core i7-12700K (25 MB cache, 12 cores (8+4), 3.6 GHz to 5.0 GHz, 125 W)
12th Generation Intel Core i7-12700 (25 MB cache, 12 cores (8+4), 2.1 GHz to 4.9 GHz, 65 W)
12th Generation Intel Core i5-12600K (20 MB cache, 10 cores (6+4), 3.7 GHz to 4.9 GHz, 125 W)
12th Generation Intel Core i5-12600 (18 MB cache, 6 cores (6+0), 3.3 GHz to 4.8 GHz, 65 W)
12th Generation Intel Core i5-12500 (18 MB cache, 6 cores (6+0), 3.0 GHz to 4.6 GHz, 65 W)
12th Generation Intel Core i3-12100 (12 MB cache, 4 cores (4+0), 3.3 GHz to 4.3 GHz, 60 W)
Note:
1. All processors come with Intel Integrated Graphics.
2. Intel Turbo Boost Max Technology 3.0 is only available with i7-12700, i9-12900, i7-12700K, i9-12900K processors.
3. Intel Turbo Max Technology 3.0 is only available on Performance Cores.
Processor Cooling options:
1. Standard CPU Air Cooler
2. Advanced CPU Air Cooler
3. Premium CPU Liquid Cooler
Operating System:
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Ubuntu Linux 20.04 LTS, 64-bit
Kylin V 10 SP1 (PRTS)
Red Hat Enterprise Linux® 8.6 (PRTS)
Video Card:
Intel UHD Graphics 730 for 12th Generation Core i3 processors
Intel UHD Graphics 770 for 12th Generation Core i5/i7/i9 processors
NVIDIA Quadro RTX A6000, 48 GB, GDDR6
AMD Radeon Pro W6800, 32 GB, GDDR6
NVIDIA Quadro RTX A5000, 24 GB, GDDR6
NVIDIA Quadro RTX A4000, 16 GB, GDDR6
AMD Radeon Pro RX6900XT, 16 GB, GDDR6
AMD Radeon Pro W6600, 8 GB, GDDR6
AMD Radeon Pro W5700, 8 GB, GDDR6
NVIDIA Quadro RTX A2000, 6 GB, GDDR6
AMD Radeon Pro WX3200, 4 GB, GDDR5
NVIDIA Quadro T1000, 4 GB, GDDR6
NVIDIA Quadro T600 class, 4 GB, GDDR6
NVIDIA Quadro T400 class, 2 GB, GDDR6
Memory:
8 GB, 1 x 8 GB, DDR5, 4400 MHz, Non-ECC
16 GB, 1 x 16 GB, DDR5, 4400 MHz, Non-ECC
32 GB, 1 x 32 GB, DDR5, 4400 MHz, Non-ECC
16 GB, 2 x 8 GB, DDR5, 4400 MHz, Non-ECC, dual-channel
32 GB, 2 x 16 GB, DDR5, 4400 MHz, Non-ECC, dual-channel
64 GB, 2 x 32 GB, DDR5, 4400 MHz, Non-ECC, dual-channel
32 GB, 4 x 8 GB, DDR5, 4000 MHz, Non-ECC, dual-channel
64 GB, 4 x 16 GB, DDR5, 4000 MHz, Non-ECC, dual-channel
128 GB, 4 x 32 GB, DDR5, 3600 MHz, Non-ECC, dual-channel
16 GB, 1 x 16 GB, DDR5, 4400 MHz, ECC
32 GB, 1 x 32 GB, DDR5, 4400 MHz, ECC
32 GB, 2 x 16 GB, DDR5, 4400 MHz, ECC, dual-channel
64 GB, 2 x 32 GB, DDR5, 4400 MHz, ECC, dual-channel
64 GB 4 x 16 GB, DDR5, 4000 MHz, ECC, dual-channel
128 GB 4 x 32 GB, DDR5, 3600 MHz, ECC, dual-channel
4 DIMM Slots: Up to 128 GB or up to 4400 MHz ECC and Non-ECC DDR5
Maximum speed: 4400 MHz
Maximum capacity: 128 GB
Maximum memory speed varies by the following configuration on each channel. If the 2 DIMM configuration is not symmetrical, the maximum speed may drop.
4400 MHz : 1 DIMM-1R/2R
4000 MHz : 2 DIMM-1R
3600 MHz : 2 DIMM-2R
Storage:
2.5-inch, 500 GB, 7200 RPM, SATA, HDD
2.5-inch, 500 GB, 7200 RPM, Self-Encrypting, Opal 2.0, FIPS, SATA, HDD
2.5-inch, 1 TB, 7200 RPM, SATA, HDD
3.5-inch, 1 TB, 7200 RPM, SATA, HDD
3.5-inch, 2 TB, 7200 RPM, SATA, HDD
3.5-inch, 4 TB, 5400 RPM, SATA, HDD
3.5-inch, 4 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 8 TB, 7200 RPM, SATA, Enterprise HDD
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, Class 35 SSD
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 4 TB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, SSD, Self-Encrypting drive
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, SSD, Self-Encrypting drive
Microsoft Office:
Microsoft Office 30 Day Trial
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Dell Optimizer for Precision
Security Software:
McAfee Small Business Security 30 Day Free Trial/12-month subscription/36 month Subscription
Intel Guard Technologies & Secure Key: Software Guard (SGX), Data Guard (vPro only), Boot Guard, BIOS Guard (Core CPU's only), OS Guard (Core CPU's only) and Secure Key (i5 or greater only)
Intel Runtime BIOS Resilience (Copper Point) with attestation via Nifty Rock + Intel TXT
Support of Absolute Persistent Module BIOS agent v2
OpenXT validation required
SafeGuard and Response, powered by VMware Carbon Black and Secureworks
Next Generation Antivirus (NGAV)
Endpoint Detection and Response (EDR)
Threat Detection and Response (TDR)
Managed Endpoint Detection and Response
Incident Management Retainer
Emergency Incident Response
SafeData
Keyboard:
N/A
Ports:
Front:
1 Universal audio port
2 USB 3.2 Type-A Gen 1 ports
1 USB 3.2 Type-C Gen2 port
1 USB 3.2 Type-C Gen 2x2 port
1 SD Card slot
Rear:
2 DisplayPort 1.4 ports
2 USB 3.2 Type-C Gen2 ports
2 USB 3.2 Type-A Gen2 ports
2 USB 2.0 Type-A ports
1 RJ45 Ethernet port
1 Power port
1 Video port
1 Audio Line out
Optical Drive:
8x DVD-ROM 9.5mm Optical Disk Drive
8x DVD+/-RW 9.5mm Optical Disk Drive
Integrated Smart Card Reader with Contact and Contactless Support (CAC/PIV)
Slots:
1 full-height Gen5 PCIe x16 slot
1 full-height Gen3 PCIe x4 slot
1 full-height Gen 4 PCIe x4 slot
1 M.2 2230 slot for WiFi and Bluetooth card
2 M.2 2230/2280 PCIe Gen4 slots for NVMe SSD
1 M.2 2280 PCIe Gen 3 for NVMe SSD
5 SATA slots for 2.5/3.5-inch HDD/ODD
Dimensions & Weight:
Height: 369.00 mm (14.52 in.)
Width: 173.00 mm (6.81 in.)
Depth: 420.00 mm (16.53 in.)
Starting Weight: 8.50 kg (18.739 lbs)
Chassis:
MTX Tower
Wireless:
Qualcomm WCN6856, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card, external antenna
Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
Power:
300 W, 500 W, 750 W internal power supply unit, 92% Efficient PSU, 80 Plus Platinum
- Windows 11 or Linux Ubuntu.
- Intel integrated graphics or up to AMD Radeon Pro or NVIDIA pro graphics (up to 400W) ensure a smooth and elevated visual experience every time.
- 125W 12th Gen Intel Core processors. Up to Intel Core i9, 24 (8P + 16E) Core processors and NVIDA RTX A6000. Up to 128GB or up to 4400MHz DDR5 memory. Up to 28TB of RAID-capable storage.
- Integrated Wi-Fi 6 and Bluetooth 5.2 with vPro.
Processor:
12th Generation Intel Core i9-12900K (30 MB cache, 16 cores (8+8), 3.2 GHz to 5.2 GHz, 125 W)
12th Generation Intel Core i9-12900 (30 MB cache, 16 cores (8+8), 2.4 GHz to 5.1 GHz, 65 W)
12th Generation Intel Core i7-12700K (25 MB cache, 12 cores (8+4), 3.6 GHz to 5.0 GHz, 125 W)
12th Generation Intel Core i7-12700 (25 MB cache, 12 cores (8+4), 2.1 GHz to 4.9 GHz, 65 W)
12th Generation Intel Core i5-12600K (20 MB cache, 10 cores (6+4), 3.7 GHz to 4.9 GHz, 125 W)
12th Generation Intel Core i5-12600 (18 MB cache, 6 cores (6+0), 3.3 GHz to 4.8 GHz, 65 W)
12th Generation Intel Core i5-12500 (18 MB cache, 6 cores (6+0), 3.0 GHz to 4.6 GHz, 65 W)
12th Generation Intel Core i3-12100 (12 MB cache, 4 cores (4+0), 3.3 GHz to 4.3 GHz, 60 W)
Note:
1. All processors come with Intel Integrated Graphics.
2. Intel Turbo Boost Max Technology 3.0 is only available with i7-12700, i9-12900, i7-12700K, i9-12900K processors.
3. Intel Turbo Max Technology 3.0 is only available on Performance Cores.
Processor Cooling options:
1. Standard CPU Air Cooler
2. Advanced CPU Air Cooler
3. Premium CPU Liquid Cooler
Operating System:
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Ubuntu Linux 20.04 LTS, 64-bit
Kylin V 10 SP1 (PRTS)
Red Hat Enterprise Linux® 8.6 (PRTS)
Video Card:
Intel UHD Graphics 730 for 12th Generation Core i3 processors
Intel UHD Graphics 770 for 12th Generation Core i5/i7/i9 processors
NVIDIA Quadro RTX A6000, 48 GB, GDDR6
AMD Radeon Pro W6800, 32 GB, GDDR6
NVIDIA Quadro RTX A5000, 24 GB, GDDR6
NVIDIA Quadro RTX A4000, 16 GB, GDDR6
AMD Radeon Pro RX6900XT, 16 GB, GDDR6
AMD Radeon Pro W6600, 8 GB, GDDR6
AMD Radeon Pro W5700, 8 GB, GDDR6
NVIDIA Quadro RTX A2000, 6 GB, GDDR6
AMD Radeon Pro WX3200, 4 GB, GDDR5
NVIDIA Quadro T1000, 4 GB, GDDR6
NVIDIA Quadro T600 class, 4 GB, GDDR6
NVIDIA Quadro T400 class, 2 GB, GDDR6
Memory:
8 GB, 1 x 8 GB, DDR5, 4400 MHz, Non-ECC
16 GB, 1 x 16 GB, DDR5, 4400 MHz, Non-ECC
32 GB, 1 x 32 GB, DDR5, 4400 MHz, Non-ECC
16 GB, 2 x 8 GB, DDR5, 4400 MHz, Non-ECC, dual-channel
32 GB, 2 x 16 GB, DDR5, 4400 MHz, Non-ECC, dual-channel
64 GB, 2 x 32 GB, DDR5, 4400 MHz, Non-ECC, dual-channel
32 GB, 4 x 8 GB, DDR5, 4000 MHz, Non-ECC, dual-channel
64 GB, 4 x 16 GB, DDR5, 4000 MHz, Non-ECC, dual-channel
128 GB, 4 x 32 GB, DDR5, 3600 MHz, Non-ECC, dual-channel
16 GB, 1 x 16 GB, DDR5, 4400 MHz, ECC
32 GB, 1 x 32 GB, DDR5, 4400 MHz, ECC
32 GB, 2 x 16 GB, DDR5, 4400 MHz, ECC, dual-channel
64 GB, 2 x 32 GB, DDR5, 4400 MHz, ECC, dual-channel
64 GB 4 x 16 GB, DDR5, 4000 MHz, ECC, dual-channel
128 GB 4 x 32 GB, DDR5, 3600 MHz, ECC, dual-channel
4 DIMM Slots: Up to 128 GB or up to 4400 MHz ECC and Non-ECC DDR5
Maximum speed: 4400 MHz
Maximum capacity: 128 GB
Maximum memory speed varies by the following configuration on each channel. If the 2 DIMM configuration is not symmetrical, the maximum speed may drop.
4400 MHz : 1 DIMM-1R/2R
4000 MHz : 2 DIMM-1R
3600 MHz : 2 DIMM-2R
Storage:
2.5-inch, 500 GB, 7200 RPM, SATA, HDD
2.5-inch, 500 GB, 7200 RPM, Self-Encrypting, Opal 2.0, FIPS, SATA, HDD
2.5-inch, 1 TB, 7200 RPM, SATA, HDD
3.5-inch, 1 TB, 7200 RPM, SATA, HDD
3.5-inch, 2 TB, 7200 RPM, SATA, HDD
3.5-inch, 4 TB, 5400 RPM, SATA, HDD
3.5-inch, 4 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 8 TB, 7200 RPM, SATA, Enterprise HDD
M.2 2230, 256 GB, PCIe NVMe Gen3 x4, Class 35 SSD
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 4 TB, PCIe NVMe Gen4 x4, Class 40 SSD
M.2 2280, 512 GB, PCIe NVMe Gen3 x4, SSD, Self-Encrypting drive
M.2 2280, 1 TB, PCIe NVMe Gen3 x4, SSD, Self-Encrypting drive
Microsoft Office:
Microsoft Office 30 Day Trial
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Dell Optimizer for Precision
Security Software:
McAfee Small Business Security 30 Day Free Trial/12-month subscription/36 month Subscription
Intel Guard Technologies & Secure Key: Software Guard (SGX), Data Guard (vPro only), Boot Guard, BIOS Guard (Core CPU's only), OS Guard (Core CPU's only) and Secure Key (i5 or greater only)
Intel Runtime BIOS Resilience (Copper Point) with attestation via Nifty Rock + Intel TXT
Support of Absolute Persistent Module BIOS agent v2
OpenXT validation required
SafeGuard and Response, powered by VMware Carbon Black and Secureworks
Next Generation Antivirus (NGAV)
Endpoint Detection and Response (EDR)
Threat Detection and Response (TDR)
Managed Endpoint Detection and Response
Incident Management Retainer
Emergency Incident Response
SafeData
Keyboard:
N/A
Ports:
Front:
1 Universal audio port
2 USB 3.2 Type-A Gen 1 ports
1 USB 3.2 Type-C Gen2 port
1 USB 3.2 Type-C Gen 2x2 port
1 SD Card slot
Rear:
2 DisplayPort 1.4 ports
2 USB 3.2 Type-C Gen2 ports
2 USB 3.2 Type-A Gen2 ports
2 USB 2.0 Type-A ports
1 RJ45 Ethernet port
1 Power port
1 Video port
1 Audio Line out
Optical Drive:
8x DVD-ROM 9.5mm Optical Disk Drive
8x DVD+/-RW 9.5mm Optical Disk Drive
Integrated Smart Card Reader with Contact and Contactless Support (CAC/PIV)
Slots:
1 full-height Gen5 PCIe x16 slot
1 full-height Gen3 PCIe x4 slot
1 full-height Gen 4 PCIe x4 slot
1 M.2 2230 slot for WiFi and Bluetooth card
2 M.2 2230/2280 PCIe Gen4 slots for NVMe SSD
1 M.2 2280 PCIe Gen 3 for NVMe SSD
5 SATA slots for 2.5/3.5-inch HDD/ODD
Dimensions & Weight:
Height: 369.00 mm (14.52 in.)
Width: 173.00 mm (6.81 in.)
Depth: 420.00 mm (16.53 in.)
Starting Weight: 8.50 kg (18.739 lbs)
Chassis:
MTX Tower
Wireless:
Qualcomm WCN6856, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card, external antenna
Intel Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth wireless card
Power:
300 W, 500 W, 750 W internal power supply unit, 92% Efficient PSU, 80 Plus Platinum
Dell Precision 7960 2U Rack Workstation
Power your most demanding applications with a scalable and secure rack workstation.
Processor:
Intel Xeon Silver 4410Y (23 MB cache, 12 cores, 24 threads, 2.0 GHz to 3.9 GHz Turbo, 150 W)
Intel Xeon Gold 5415 (15 MB cache, 8 cores, 16 threads, 2.9 GHz to 4.1 GHz Turbo, 150 W)
Intel Xeon Silver 4416 (38 MB cache, 20 cores, 40 threads, 2.0 GHz to 3.9 GHz Turbo, 165 W)
Intel Xeon Gold 5418Y (45 MB cache, 24 cores, 48 threads, 2.0 GHz to 3.8 GHz Turbo, 185 W)
Intel Xeon Gold 5420 (53 MB cache, 28 cores, 56 threads, 2.0 GHz to 4.1 GHz Turbo, 205 W)
Intel Xeon Gold 6430 (60 MB cache, 32 cores, 64 threads, 2.1 GHz to 3.4 GHz Turbo, 270 W)
Intel Xeon Gold 6434 (15 MB cache, 8 cores, 16 threads, 3.7 GHz to 4.1 GHz Turbo, 195 W)
Intel Xeon Gold 6426Y (30 MB cache, 16 cores, 32 threads, 2.6 GHz to 4.0 GHz Turbo, 225 W)
Intel Xeon Gold 6442Y (45 MB cache, 24 cores, 48 threads, 2.6 GHz to 4.0 GHz Turbo, 225 W)
Intel Xeon Gold 6448Y (60 MB cache, 32 cores, 64 threads, 2.1 GHz to 4.1 GHz Turbo, 225 W)
Intel Xeon Gold 6444Y (30 MB cache, 16 cores, 32 threads, 3.6 GHz to 4.0 GHz Turbo, 270 W)
Intel Xeon Platinum 8452Y (68 MB cache, 36 cores, 72 threads, 2.0 GHz to 3.2 GHz Turbo, 300 W)
Intel Xeon Platinum 8460Y (75 MB cache, 40 cores, 80 threads, 2.0 GHz to 3.7 GHz Turbo, 300 W)
Intel Xeon Platinum 8462Y (60 MB cache, 32 cores, 64 threads, 2.8 GHz to 4.1 GHz Turbo, 300 W)
Intel Xeon Platinum 8468 (90 MB cache, 48 cores, 96 threads, 2.1 GHz to 3.8 GHz Turbo, 300 W)
Intel Xeon Platinum 8470 (98 MB cache, 52 cores, 104 threads, 2.0 GHz to 3.8 GHz Turbo, 350 W)
Intel Xeon Platinum 8480 (105 MB cache, 56 cores, 112 threads, 2.0 GHz to 3.8 GHz Turbo, 350 W)
Operating System:
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Pro
Ubuntu 22.04, 64-bit
Red Hat Linux 8.6 Enterprise WS
Video Card:
NVIDIA:
NVIDIA RTX A6000, 48 GB GDDR6
NVIDIA RTX A5500, 24 GB GDDR6
NVIDIA RTX A4500, 20 GB GDDR6
NVIDIA RTX A4000, 16 GB GDDR6
NVIDIA RTX A2000, 12 GB GDDR6
NVIDIA T1000 LP/FH, 8 GB GDDR6
NVIDIA T400 LP/FH, 4 GB GDDR6
AMD:
AMD Radeon W6800, 32 GB GDDR6 (PRTS)
AMD Radeon W6600, 8 GB GDDR6 (PRTS)
AMD Radeon W6400 LP/FH, 4 GB GDDR6 (PRTS)
AMD Radeon W6300 LP/FH, 2 GB GDDR6 (PRTS)
Memory:
16 GB, 1 x 16 GB, DDR5, 4800 MHz
32 GB, 1 x 32 GB, DDR5, 4800 MHz
32 GB, 2 x 16 GB, DDR5, 4800 MHz
64 GB, 1 x 64 GB, DDR5, 4800 MHz
64 GB, 2 x 32 GB, DDR5, 4800 MHz
64 GB, 4 x 16 GB, DDR5, 4800 MHz
96 GB, 6 x 16 GB, DDR5, 4800 MHz
128 GB, 2 x 64 GB, DDR5, 4800 MHz
128 GB, 4 x 32 GB, DDR5, 4800 MHz
128 GB, 8 x 16 GB, DDR5, 4800 MHz
192 GB, 6 x 32 GB, DDR5, 4800 MHz
192 GB, 12 x 16 GB, DDR5, 4800 MHz
256 GB, 4 x 64 GB, DDR5, 4800 MHz
256 GB, 8 x 32 GB, DDR5, 4800 MHz
384 GB, 6 x 64 GB, DDR5, 4800 MHz
384 GB, 12 x 32 GB, DDR5, 4800 MHz
384 GB, 24 x 16 GB, DDR5, 4800 MHz
512 GB, 8 x 64 GB, DDR5, 4800 MHz
512 GB, 32 x 16 GB, DDR5, 4800 MHz
768 GB, 12 x 64 GB, DDR5, 4800 MHz
768 GB, 24 x 32 GB, DDR5, 4800 MHz
1 TB, 16 x 64 GB, DDR5, 4800 MHz
1 TB, 32 x 32 GB, DDR5, 4800 MHz
1.5 TB, 24 x 64 GB, DDR5, 4800 MHz
2 TB, 32 x 64 GB, DDR5, 4800 MHz
Storage:
2.5-inch, 600 GB, 15,000 RPM, SAS, Enterprise HDD
2.5-inch, 1.2 TB, 10,000 RPM, SAS, Enterprise HDD
2.5-inch, 2.4 TB, 10,000 RPM, SAS, Enterprise HDD
3.5-inch, 2 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 4 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 8 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 12 TB, 7200 RPM, SATA, Enterprise HDD
2.5-inch, 1.92 TB, MU, SATA, SSD
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 4 TB, PCIe NVMe Gen4 x4, SSD, Class 40
Microsoft Office:
Microsoft Office Home & Business 2021
Microsoft Office Professional 2021
Dell Optimizer for Precision
Security Software:
McAfee Small Business Security 30-day free trial
McAfee Small Business Security 12-month subscription
McAfee Small Business Security 36-month subscription
Dell Encryption Personal
Dell Encryption Enterprise
Ports:
Front:
1 iDRAC Direct port (1x Micro USB)
1 USB 2.0 portRear:
1 USB 2.0 port
1 USB 3.0 Gen1 port
1 iDRAC9 Enterprise Dedicated Network connector
2 RJ45 Ethernet ports, 1 GbE
4 RJ45 Ethernet ports, 1 GbE (OCP3 card option)
4 RJ45 Ethernet ports, 10 GbE (OCP3 card option)
4 SFP28 Ethernet ports, 25 GbE (OCP3 card option)
Optical Drive:
8x DVD-ROM 9.5mm optical drive
8x DVD+/-RW 9.5mm optical drive
Dimensions & Weight:
Height (rear): 434.00 mm (17.08 in.)
Height (front): 482.00 mm (18.97 in.)
Width: 735.00 mm (28.93 in.)
Depth: 772,13 mm (30.44 in.)
Weight:
Maximum: 29.64 kg (65.36 lbs.)
Minimum: 20.98 kg (46.25 lbs.)
Precision 7960 Rack Spec Sheet
Chassis:
2U Rack form factor
Wireless:
NA
Power:
800 W internal power supply unit
1050 W/1100 W internal power supply unit
1400 W/2400 W internal power supply unit
- One or two 350W Intel Xeon Processors.
- Up to (2) NVIDIA RTX 300W graphics.
- Up to 32TB of NVME storage, and 96TB of enterprise HDD storage.
- Up to 8TB of 4800MHz DDR5 memory.
- Keep your IP in the datacenter with a rack workstation.
- Two power supplies ensure auto fail-over.
Processor:
Intel Xeon Silver 4410Y (23 MB cache, 12 cores, 24 threads, 2.0 GHz to 3.9 GHz Turbo, 150 W)
Intel Xeon Gold 5415 (15 MB cache, 8 cores, 16 threads, 2.9 GHz to 4.1 GHz Turbo, 150 W)
Intel Xeon Silver 4416 (38 MB cache, 20 cores, 40 threads, 2.0 GHz to 3.9 GHz Turbo, 165 W)
Intel Xeon Gold 5418Y (45 MB cache, 24 cores, 48 threads, 2.0 GHz to 3.8 GHz Turbo, 185 W)
Intel Xeon Gold 5420 (53 MB cache, 28 cores, 56 threads, 2.0 GHz to 4.1 GHz Turbo, 205 W)
Intel Xeon Gold 6430 (60 MB cache, 32 cores, 64 threads, 2.1 GHz to 3.4 GHz Turbo, 270 W)
Intel Xeon Gold 6434 (15 MB cache, 8 cores, 16 threads, 3.7 GHz to 4.1 GHz Turbo, 195 W)
Intel Xeon Gold 6426Y (30 MB cache, 16 cores, 32 threads, 2.6 GHz to 4.0 GHz Turbo, 225 W)
Intel Xeon Gold 6442Y (45 MB cache, 24 cores, 48 threads, 2.6 GHz to 4.0 GHz Turbo, 225 W)
Intel Xeon Gold 6448Y (60 MB cache, 32 cores, 64 threads, 2.1 GHz to 4.1 GHz Turbo, 225 W)
Intel Xeon Gold 6444Y (30 MB cache, 16 cores, 32 threads, 3.6 GHz to 4.0 GHz Turbo, 270 W)
Intel Xeon Platinum 8452Y (68 MB cache, 36 cores, 72 threads, 2.0 GHz to 3.2 GHz Turbo, 300 W)
Intel Xeon Platinum 8460Y (75 MB cache, 40 cores, 80 threads, 2.0 GHz to 3.7 GHz Turbo, 300 W)
Intel Xeon Platinum 8462Y (60 MB cache, 32 cores, 64 threads, 2.8 GHz to 4.1 GHz Turbo, 300 W)
Intel Xeon Platinum 8468 (90 MB cache, 48 cores, 96 threads, 2.1 GHz to 3.8 GHz Turbo, 300 W)
Intel Xeon Platinum 8470 (98 MB cache, 52 cores, 104 threads, 2.0 GHz to 3.8 GHz Turbo, 350 W)
Intel Xeon Platinum 8480 (105 MB cache, 56 cores, 112 threads, 2.0 GHz to 3.8 GHz Turbo, 350 W)
Operating System:
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Pro
Ubuntu 22.04, 64-bit
Red Hat Linux 8.6 Enterprise WS
Video Card:
NVIDIA:
NVIDIA RTX A6000, 48 GB GDDR6
NVIDIA RTX A5500, 24 GB GDDR6
NVIDIA RTX A4500, 20 GB GDDR6
NVIDIA RTX A4000, 16 GB GDDR6
NVIDIA RTX A2000, 12 GB GDDR6
NVIDIA T1000 LP/FH, 8 GB GDDR6
NVIDIA T400 LP/FH, 4 GB GDDR6
AMD:
AMD Radeon W6800, 32 GB GDDR6 (PRTS)
AMD Radeon W6600, 8 GB GDDR6 (PRTS)
AMD Radeon W6400 LP/FH, 4 GB GDDR6 (PRTS)
AMD Radeon W6300 LP/FH, 2 GB GDDR6 (PRTS)
Memory:
16 GB, 1 x 16 GB, DDR5, 4800 MHz
32 GB, 1 x 32 GB, DDR5, 4800 MHz
32 GB, 2 x 16 GB, DDR5, 4800 MHz
64 GB, 1 x 64 GB, DDR5, 4800 MHz
64 GB, 2 x 32 GB, DDR5, 4800 MHz
64 GB, 4 x 16 GB, DDR5, 4800 MHz
96 GB, 6 x 16 GB, DDR5, 4800 MHz
128 GB, 2 x 64 GB, DDR5, 4800 MHz
128 GB, 4 x 32 GB, DDR5, 4800 MHz
128 GB, 8 x 16 GB, DDR5, 4800 MHz
192 GB, 6 x 32 GB, DDR5, 4800 MHz
192 GB, 12 x 16 GB, DDR5, 4800 MHz
256 GB, 4 x 64 GB, DDR5, 4800 MHz
256 GB, 8 x 32 GB, DDR5, 4800 MHz
384 GB, 6 x 64 GB, DDR5, 4800 MHz
384 GB, 12 x 32 GB, DDR5, 4800 MHz
384 GB, 24 x 16 GB, DDR5, 4800 MHz
512 GB, 8 x 64 GB, DDR5, 4800 MHz
512 GB, 32 x 16 GB, DDR5, 4800 MHz
768 GB, 12 x 64 GB, DDR5, 4800 MHz
768 GB, 24 x 32 GB, DDR5, 4800 MHz
1 TB, 16 x 64 GB, DDR5, 4800 MHz
1 TB, 32 x 32 GB, DDR5, 4800 MHz
1.5 TB, 24 x 64 GB, DDR5, 4800 MHz
2 TB, 32 x 64 GB, DDR5, 4800 MHz
Storage:
2.5-inch, 600 GB, 15,000 RPM, SAS, Enterprise HDD
2.5-inch, 1.2 TB, 10,000 RPM, SAS, Enterprise HDD
2.5-inch, 2.4 TB, 10,000 RPM, SAS, Enterprise HDD
3.5-inch, 2 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 4 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 8 TB, 7200 RPM, SATA, Enterprise HDD
3.5-inch, 12 TB, 7200 RPM, SATA, Enterprise HDD
2.5-inch, 1.92 TB, MU, SATA, SSD
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 2 TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 4 TB, PCIe NVMe Gen4 x4, SSD, Class 40
Microsoft Office:
Microsoft Office Home & Business 2021
Microsoft Office Professional 2021
Dell Optimizer for Precision
Security Software:
McAfee Small Business Security 30-day free trial
McAfee Small Business Security 12-month subscription
McAfee Small Business Security 36-month subscription
Dell Encryption Personal
Dell Encryption Enterprise
Ports:
Front:
1 iDRAC Direct port (1x Micro USB)
1 USB 2.0 portRear:
1 USB 2.0 port
1 USB 3.0 Gen1 port
1 iDRAC9 Enterprise Dedicated Network connector
2 RJ45 Ethernet ports, 1 GbE
4 RJ45 Ethernet ports, 1 GbE (OCP3 card option)
4 RJ45 Ethernet ports, 10 GbE (OCP3 card option)
4 SFP28 Ethernet ports, 25 GbE (OCP3 card option)
Optical Drive:
8x DVD-ROM 9.5mm optical drive
8x DVD+/-RW 9.5mm optical drive
Dimensions & Weight:
Height (rear): 434.00 mm (17.08 in.)
Height (front): 482.00 mm (18.97 in.)
Width: 735.00 mm (28.93 in.)
Depth: 772,13 mm (30.44 in.)
Weight:
Maximum: 29.64 kg (65.36 lbs.)
Minimum: 20.98 kg (46.25 lbs.)
Precision 7960 Rack Spec Sheet
Chassis:
2U Rack form factor
Wireless:
NA
Power:
800 W internal power supply unit
1050 W/1100 W internal power supply unit
1400 W/2400 W internal power supply unit
Dell Precision 3280 Compact Tower Workstation
Exceptional performance within a compact design with multiple mounting options for your workspace.
Processor:
Intel Core i9 14th Gen 14900 vPro (36 MB cache, 24 cores, 32 threads, 2.0 GHz to 5.8 GHz Turbo, 65W)
Intel Core i7 14th Gen 14700 vPro (33 MB cache, 20 cores, 28 threads, 2.1 GHz to 5.4 GHz Turbo, 65W)
Intel Core i5 14th Gen 14600 vPro (24 MB cache, 14 cores, 20 threads, 2.7 GHz to 5.2 GHz Turbo, 65W)
Intel Core i5 14th Gen 14500 vPro (24 MB cache, 14 cores, 20 threads, 2.6 GHz to 5.0 GHz Turbo, 65W)
Intel Core i3 14th Gen 14100 (12 MB cache, 4 cores, 8 threads, 3.5 GHz to 4.7 GHz Turbo, 60W)
Operating System:
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Pro
Windows 11 Pro National Academic
Windows 11 Pro for Workstations
Red Hat Linux 8.4 Enterprise
Ubuntu Linux 20.04 LTS, 64-bit
Video Card:
Intel UHD Graphics 730 14th Gen Intel Core i3-14100 processor
Intel UHD Graphics 770 14th Gen Intel Core i5-14400 vPro, i5-14500 vPro, i5-14600 vPro, i7-14700 vPro, i9-14900 vPro processors
NVIDIA RTX 4000 Ada Generation, 20 GB GDDR6
NVIDIA RTX 2000 Ada Generation, 12 GB GDDR6
NVIDIA T1000, 8 GB GDDR6
NVIDIA T400, 4 GB GDDR6
Memory:
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, ECC
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, ECC, dual-channel
32 GB: 1 x 32 GB, DDR5, 5200 MT/s, ECC
64 GB: 2 x 32 GB, DDR5, 5200 MT/s, ECC, dual-channel8 GB: 1 x 8 GB, DDR5, 5600 MT/s, Non-ECC
16 GB: 2 x 8 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, Non-ECC
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
Storage:
256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35
512 GB, 1 TB,2 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40
512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40
1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40
Microsoft Office:
Microsoft Office 30-day trial
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Microsoft 365 Business Standard
Dell Optimizer for Precision
Intel Unite solution (optional)
Dell Client Command Suite (DCCS)
Dell Premier Color
Intel WiFi Direct
Dell Support Center
Security Software:
Certificate Based Authentication (CBA)/Authenticated BIOS Interface (ABI)
McAfee Small Business Security 30-day Trial
Dell Encryption Personal
Dell Encryption Enterprise
Dell Encryption External Media
Dell Data Protection | Bitlocker Manager (DDP | BLM)
Dell Trusted Device (SafeBIOS)
Digital Device Identity and Secured Component Verification
Secure BIOS Baseline
Secured-core PC
Support Assist for PCs
Support Assist OS Recovery (Excalibur)
Ports:
Front:
2 USB 3.2 Gen 2 Type A (10Gbps), One with PowerShare
1 USB 3.2 Type C (20Gbps)
1 Universal audio port
Rear:
1 RJ45
2 USB 3.2 Gen 1 Type A (5Gbps), One with PowerShare
3 USB 3.2 Gen 2 Type A (10 Gbps)
3 DP 1.4 ports
1 Optional port
1 power-adapter port
Optical Drive:
No optical drive
Slots:
1 Kensington security-cable slot
1 Padlock ring
2 PCIe x8 slot (x8 and x1 electrically)
2 M.2 2230/2280 Gen4 PCIe NVMe SSD
1 M.2 2230 slot for WiFi and Bluetooth card
Dimensions & Weight:
Height: 206.00 mm (8.11 in.)
Width: 79.30 mm (3.12 in.)
Depth: 178.00 mm (7.00 in.)
Weight (maximum): 2.54 kg (5.59 lbs.)
Weight (minimum): 1.83 kg (4.03 lbs.)
Chassis:
Compact Form Factor (CFF)
Wireless:
Qualcomm Wi-Fi 6E WCN6856-DBS, 2x2, 802.11ax, MU-MIMO, Bluetooth 5.3 wireless card
Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card
Power:
180W AC adapter, 7.4mm barrel
280W AC adapter, 7.4mm barrel
- Equipped with up to 14th Gen Intel Core i9 processor and 64GB of DDR5 memory, your renders and datasets load faster than ever.
- Take your AI and HPC tasks to new heights with the NVIDIA RTX 4000 Ada SFF (75W) graphics within an ultra-small form factor.
- Up to 8TBs of internal storage ensures there's enough room to natively store even your biggest projects.
Processor:
Intel Core i9 14th Gen 14900 vPro (36 MB cache, 24 cores, 32 threads, 2.0 GHz to 5.8 GHz Turbo, 65W)
Intel Core i7 14th Gen 14700 vPro (33 MB cache, 20 cores, 28 threads, 2.1 GHz to 5.4 GHz Turbo, 65W)
Intel Core i5 14th Gen 14600 vPro (24 MB cache, 14 cores, 20 threads, 2.7 GHz to 5.2 GHz Turbo, 65W)
Intel Core i5 14th Gen 14500 vPro (24 MB cache, 14 cores, 20 threads, 2.6 GHz to 5.0 GHz Turbo, 65W)
Intel Core i3 14th Gen 14100 (12 MB cache, 4 cores, 8 threads, 3.5 GHz to 4.7 GHz Turbo, 60W)
Operating System:
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Pro
Windows 11 Pro National Academic
Windows 11 Pro for Workstations
Red Hat Linux 8.4 Enterprise
Ubuntu Linux 20.04 LTS, 64-bit
Video Card:
Intel UHD Graphics 730 14th Gen Intel Core i3-14100 processor
Intel UHD Graphics 770 14th Gen Intel Core i5-14400 vPro, i5-14500 vPro, i5-14600 vPro, i7-14700 vPro, i9-14900 vPro processors
NVIDIA RTX 4000 Ada Generation, 20 GB GDDR6
NVIDIA RTX 2000 Ada Generation, 12 GB GDDR6
NVIDIA T1000, 8 GB GDDR6
NVIDIA T400, 4 GB GDDR6
Memory:
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, ECC
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, ECC, dual-channel
32 GB: 1 x 32 GB, DDR5, 5200 MT/s, ECC
64 GB: 2 x 32 GB, DDR5, 5200 MT/s, ECC, dual-channel8 GB: 1 x 8 GB, DDR5, 5600 MT/s, Non-ECC
16 GB: 2 x 8 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, Non-ECC
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
Storage:
256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35
512 GB, 1 TB,2 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40
512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40
1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40
Microsoft Office:
Microsoft Office 30-day trial
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Microsoft 365 Business Standard
Dell Optimizer for Precision
Intel Unite solution (optional)
Dell Client Command Suite (DCCS)
Dell Premier Color
Intel WiFi Direct
Dell Support Center
Security Software:
Certificate Based Authentication (CBA)/Authenticated BIOS Interface (ABI)
McAfee Small Business Security 30-day Trial
Dell Encryption Personal
Dell Encryption Enterprise
Dell Encryption External Media
Dell Data Protection | Bitlocker Manager (DDP | BLM)
Dell Trusted Device (SafeBIOS)
Digital Device Identity and Secured Component Verification
Secure BIOS Baseline
Secured-core PC
Support Assist for PCs
Support Assist OS Recovery (Excalibur)
Ports:
Front:
2 USB 3.2 Gen 2 Type A (10Gbps), One with PowerShare
1 USB 3.2 Type C (20Gbps)
1 Universal audio port
Rear:
1 RJ45
2 USB 3.2 Gen 1 Type A (5Gbps), One with PowerShare
3 USB 3.2 Gen 2 Type A (10 Gbps)
3 DP 1.4 ports
1 Optional port
1 power-adapter port
Optical Drive:
No optical drive
Slots:
1 Kensington security-cable slot
1 Padlock ring
2 PCIe x8 slot (x8 and x1 electrically)
2 M.2 2230/2280 Gen4 PCIe NVMe SSD
1 M.2 2230 slot for WiFi and Bluetooth card
Dimensions & Weight:
Height: 206.00 mm (8.11 in.)
Width: 79.30 mm (3.12 in.)
Depth: 178.00 mm (7.00 in.)
Weight (maximum): 2.54 kg (5.59 lbs.)
Weight (minimum): 1.83 kg (4.03 lbs.)
Chassis:
Compact Form Factor (CFF)
Wireless:
Qualcomm Wi-Fi 6E WCN6856-DBS, 2x2, 802.11ax, MU-MIMO, Bluetooth 5.3 wireless card
Intel Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card
Power:
180W AC adapter, 7.4mm barrel
280W AC adapter, 7.4mm barrel
Dell Precision 3660 I7 Tower Workstation
Brand: Dell
Model No: Dell Precision 3660 Workstation
Processor:-
Processor Make: Intel
Processor Generation: 12
Number of Cores per Processor: 12
Processor Base Frequency (GHz): 2.1
Processor Turbo Frequency (GHz): 4.9
Processor Description: Intel Core i7
Processor Number: Intel Core i7 12700
Number of sockets available on the motherboard: 1
Number of Sockets populated with the Processors: 1
Cache (MB): 25
Out of Band Management: Intel vPro
Motherboard:-
Chipset Number: Intel W680
Expansion Slots (PCIe x 1) (Number): 0
Expansion Slots (PCIe x 4) (Number): 2
Expansion Slots (PCIe x 8) (Number): 0
Expansion Slots (PCIe x 16) (Number): 1
Expansion Slots (PCI) (Number): 0
Graphics:-
Graphics Type: Dedicated/Discrete
Number of Graphic Cards: 1
Graphic Card Description: NVIDIA T400 4GB
Operating System :-
Operating System (Factory Pre-Loaded): Windows 11 Professional
Recovery Image Media: NA
OS Certification: Windows
Memory:-
RAM Type: DDR5
RAM Speed (MHz): 2933
Type of Memory: Non ECC
RAM Size (GB): 32
Total Numbers of DIMM Slots Available: 4
Number of DIMM Slots Populated: 2
RAM Expandability upto using spare DIMM Slots (GB): 128
Connectivity:-
Type of Ethernet Ports: Single Gigabit NIC 10/100/1000
Number of Ethernet Ports: 1
Wireless Connectivity: Yes
If Yes, Type of Wireless Connectivity: Wi-Fi 6E AX211 BT 5.2
Bluetooth Connectivity: Yes
If Yes, Version of Bluetooth Available: 5
Ports:-
Number of USB Version 2 Point 0 Ports: 2
Number of USB Version 3 point 0 / 3 point 1, Gen 1 Ports: 2
Number of USB Version 3 point 1, Gen 2 Ports: 2
Number of USB Type C Ports: 2
Number of VGA Ports: 0
Number of HDMI Ports: 1
Number of Mini DP Ports: 0
Number of DP Ports: 2
Power:-
Maximum Power (Watts): 1000
Minimum Power Efficiency: 90
Power Management Unit: Yes
Redundant Power Supply: No
Dimensions & Weight:-
Height: 369.00 mm (14.52 in.)
Width: 173.00 mm (6.81 in.)
Depth: 420.00 mm (16.53 in.)
Starting Weight: 8.50 kg (18.739 lbs)
Warranty:
3 Years Onsite Warranty
3 Years Onsite Warranty
Dell Precision 3660 I9 Tower Workstation
Brand: Dell
Model No: Dell Precision 3660 Workstation
Processor:-
Processor Make: Intel
Processor Generation: 12
Number of Cores per Processor: 16
Processor Base Frequency (GHz): 2.4
Processor Turbo Frequency (GHz): 5.1
Processor Description: Intel Core i9
Processor Number: Intel Core i9 12900
Number of sockets available on the motherboard: 1
Number of Sockets populated with the Processors: 1
Cache (MB): 30
Out of Band Management: NA
Motherboard:-
Chipset Number: Intel W680
Expansion Slots (PCIe x 1) (Number): 0
Expansion Slots (PCIe x 4) (Number): 2
Expansion Slots (PCIe x 8) (Number): 0
Expansion Slots (PCIe x 16) (Number): 1
Expansion Slots (PCI) (Number): 0
Graphics:-
Graphics Type: Dedicated/Discrete
Number of Graphic Cards: 1
Graphic Card Description: NVIDIA T1000 8GB
Operating System:-
Operating System (Factory Pre-Loaded): Windows 11 Professional
Recovery Image Media: NA
OS Certification: Windows
Memory:-
RAM Type: DDR5
RAM Speed (MHz): 2933
Type of Memory: Non ECC
RAM Size (GB): 64
Total Numbers of DIMM Slots Available: 4
Number of DIMM Slots Populated: 2
RAM Expandability upto using spare DIMM Slots (GB): 128
Connectivity:-
Type of Ethernet Ports: Single Gigabit NIC 10/100/1000
Number of Ethernet Ports: 2
Wireless Connectivity: Yes
If Yes, Type of Wireless Connectivity: Wi-Fi 802.11ac
Bluetooth Connectivity: Yes
If Yes, Version of Bluetooth Available: 5
Ports:-
Number of USB Version 2 Point 0 Ports: 2
Number of USB Version 3 point 0 / 3 point 1, Gen 1 Ports: 2
Number of USB Version 3 point 1, Gen 2 Ports: 2
Number of USB Type C Ports: 2
Number of VGA Ports: 0
Number of HDMI Ports: 0
Number of Mini DP Ports: 0
Number of DP Ports: 4
Power:-
Maximum Power (Watts): 500
Minimum Power Efficiency: 90
Power Management Unit: Yes
Redundant Power Supply: No
Dimensions & Weight:-
Height: 369.00 mm (14.52 in.)
Width: 173.00 mm (6.81 in.)
Depth: 420.00 mm (16.53 in.)
Starting Weight: 8.50 kg (18.739 lbs)
Warranty:
3 Years Onsite Warranty
3 Years Onsite Warranty
Dell Precision 3660 Intel Xeon Tower Workstation
Brand: Dell
Model No: Dell Precision 3660 Workstation
Processor:-
Processor Make: Intel
Processor Generation: 12
Number of Cores per Processor: 16
Processor Base Frequency (GHz): 3.2
Processor Turbo Frequency (GHz): 5.2
Processor Description: Intel Core i9
Processor Number: Intel Core i9 12900K
Number of sockets available on the motherboard: 1
Number of Sockets populated with the Processors: 1
Cache (MB): 30
Out of Band Management: NA
Motherboard:-
Chipset Number: Intel W680
Expansion Slots (PCIe x 1) (Number): 0
Expansion Slots (PCIe x 4) (Number): 2
Expansion Slots (PCIe x 8) (Number): 0
Expansion Slots (PCIe x 16) (Number): 1
Expansion Slots (PCI) (Number): 0
Graphics:-
Graphics Type: Dedicated/Discrete
Number of Graphic Cards: 1
Graphic Card Description: NVIDIA T1000 8GB
Operating System:-
Operating System (Factory Pre-Loaded): Windows 11 Professional
Recovery Image Media: NA
OS Certification: Windows
Memory:-
RAM Type: DDR5
RAM Speed (MHz): 2933
Type of Memory: Non ECC
RAM Size (GB): 32
Total Numbers of DIMM Slots Available: 4
Number of DIMM Slots Populated: 2
RAM Expandability upto using spare DIMM Slots (GB): 128
Connectivity:-
Type of Ethernet Ports: Single Gigabit NIC 10/100/1000
Number of Ethernet Ports: 1
Wireless Connectivity: Yes
If Yes, Type of Wireless Connectivity: Wi-Fi 802.11ac
Bluetooth Connectivity: Yes
If Yes, Version of Bluetooth Available: 5
Ports:-
Number of USB Version 2 Point 0 Ports: 2
Number of USB Version 3 point 0 / 3 point 1, Gen 1 Ports: 2
Number of USB Version 3 point 1, Gen 2 Ports: 2
Number of USB Type C Ports: 2
Number of VGA Ports: 0
Number of HDMI Ports: 0
Number of Mini DP Ports: 0
Number of DP Ports: 4
Power:-
Maximum Power (Watts): 500
Minimum Power Efficiency: 90
Power Management Unit: Yes
Redundant Power Supply: No
Dimensions & Weight:-
Height: 369.00 mm (14.52 in.)
Width: 173.00 mm (6.81 in.)
Depth: 420.00 mm (16.53 in.)
Starting Weight: 8.50 kg (18.739 lbs)
Warranty:
3 Years Onsite Warranty
3 Years Onsite Warranty
Dell Precision 3560 I7 Mobile Workstation
- Brand: Dell
- Model No: Dell Precision 3560 Workstation
- Processor: Intel Core i7 11th Gen i7-1165G7 Quad-core (4 Core)
- Memory: 8GB DDR4 SDRAM
- Storage: 512GB SSD
- Display: 15.6 inch Full HD 1920 x 1080 pixels
- Operating System: Windows 10 Professional
- Keyboard: Backlit Keyboard, 3 Cell Battery
- PORTS: 1. MicroSD card reader | 2. Audio out | 3. (2) USB 3.2 Gen 2 Type A (1x power enabled) | 4. HDMI 2.0 | 5. RJ-45 | 6. Wedge lock slot | 7. (2) Thunderbolt 4 USB-C ports with power-in | 8. Smart Card Reader (optional)
- Dimension & Weight: 1. Height (front): 10.8 mm (0.42) Height (rear): 14.4 mm (0.56) | 2. Width: 358 mm (14.09) | 3. Depth: 232 mm (9.13) | Starting Weight: 1.58 kg (3.5 lb.)
- Contents: Laptop, Laptop Charger, Manual.
- Dimensions (W X D X H) : 258 mm X 232 mm X 10.8 mm
- Color : Black
- Weight : 1.58 kg
- Warranty: 3 Years Onsite Warranty
Dell Precision 3560 I9 Mobile Workstation
- Brand: Dell
- Model No: Dell Precision 3560 Workstation
- Processor: Intel Core i9 11th Gen Quad-core (4 Core)
- Memory: 8GB DDR4 SDRAM
- Storage: 512GB SSD
- Display: 15.6 inch Full HD 1920 x 1080 pixels
- Operating System: Windows 10 Professional
- Keyboard: Backlit Keyboard, 3 Cell Battery
- PORTS: 1. MicroSD card reader | 2. Audio out | 3. (2) USB 3.2 Gen 2 Type A (1x power enabled) | 4. HDMI 2.0 | 5. RJ-45 | 6. Wedge lock slot | 7. (2) Thunderbolt 4 USB-C ports with power-in | 8. Smart Card Reader (optional)
- Dimension & Weight: 1. Height (front): 10.8 mm (0.42) Height (rear): 14.4 mm (0.56) | 2. Width: 358 mm (14.09) | 3. Depth: 232 mm (9.13) | Starting Weight: 1.58 kg (3.5 lb.)
- Contents: Laptop, Laptop Charger, Manual.
- Dimensions (W X D X H) : 258 mm X 232 mm X 10.8 mm
- Color : Black
- Weight : 1.58 kg
- Warranty: 3 Years Onsite Warranty
Dell Precision 3560 Intel Xeon Mobile Workstation
- Brand: Dell
- Model No: Dell Precision 3560 Workstation
- Processor: Intel Xeon 11th Gen i7 Quad-core (4 Core)
- Memory: 8GB DDR4 SDRAM
- Storage: 512GB SSD
- Display: 15.6 inch Full HD 1920 x 1080 pixels
- Operating System: Windows 10 Professional
- Keyboard: Backlit Keyboard, 3 Cell Battery
- PORTS: 1. MicroSD card reader | 2. Audio out | 3. (2) USB 3.2 Gen 2 Type A (1x power enabled) | 4. HDMI 2.0 | 5. RJ-45 | 6. Wedge lock slot | 7. (2) Thunderbolt 4 USB-C ports with power-in | 8. Smart Card Reader (optional)
- Dimension & Weight: 1. Height (front): 10.8 mm (0.42) Height (rear): 14.4 mm (0.56) | 2. Width: 358 mm (14.09) | 3. Depth: 232 mm (9.13) | Starting Weight: 1.58 kg (3.5 lb.)
- Contents: Laptop, Laptop Charger, Manual.
- Dimensions (W X D X H) : 258 mm X 232 mm X 10.8 mm
- Color : Black
- Weight : 1.58 kg
- Warranty: 3 Years Onsite Warranty
