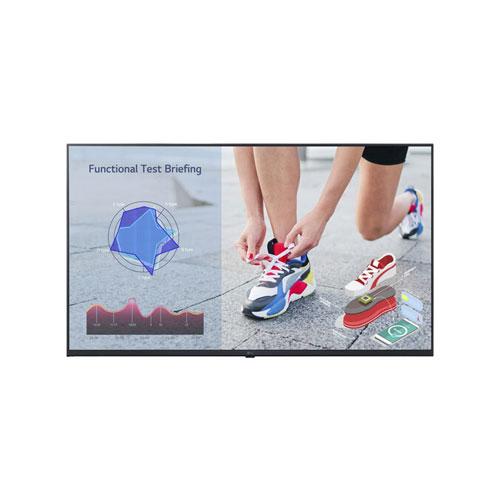

LG 55TC3D Interactive Digital Board
Brightness: 500 cd/?
- Touch Type: P-Cap(Ag Metal Mesh)
- Touch Point: Max. 40 points
- Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in
PANEL
- Screen Size 55” Native Resolution 3,840 x 2,160 (UHD)
- Brightness (Module, cd/?) 500
CONNECTIVITY
- Input HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2)
- External Control RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
- Bezel Width 41.6 mm(T/L/R/B) Monitor Dimension (W x H x D) 1,732.8 x 1011.1 x 69.7 mm (w/o Handle)
- Weight (Head) 74.5 kg Carton Dimensions (W x H x D) 1,870 x 1,264 x 285 mm(with pallet)
- Packed Weight 94 kg VESA™ Standard Mount Interface 600 x 400 mm
ENVIRONMENT CONDITIONS
- Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
POWER CONSUMPTION
- Typ. = 240 W Smart Energy Saving = 170 W
STANDARD(CERTIFICATION)
- Safety UL / cUL / CB / TUV / KC EMC FCC Class “A” / CE / KCC
SOFTWARE COMPATIBILITY
- Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link
ACCESSORY
- Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea),
- Touch Pen Tip (1ea) Optional OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)
TOUCH
- Touch type P-Cap(Ag Metal Mesh) Available object size for touch more than Ø 6 mm
- Accuracy 2 mm Interface USB 2.0
- Protection Glass Thickness 4T (Anti-Glare) Multi touch point Max. 40 Points
