BEST SELLING OTHER SWITCH PRICELIST
CP Plus CP ANW HPU8H2 N12 8 Port Fast Ethernet PoE Switch
- Brand: CP Plus
- Model No: CP Plus CP-ANW-HPU8H2-N12 8 Port POE Plus 2 Uplink Port PoE Switch
- Network Port PoE (1-6): 10/100Mbps PoE ports (RJ45), PoE (7~8): 10/100Mbps PoE ports (RJ45),Support bt 60W High Power, LAN: 10/100Mbps uplink ports (RJ45)
- Network Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
- Transmission Rate: 200Mbps Full Duplex; 10 or 100Mbps Half Duplex
- Transmission Distance: 1-2 ports 250m 10Mbps / 3~8 ports 130m 100Mbps
- MAC Address List: 2K
- Bandwidth: 2.0 Gbps
- Network Latency (10 to 100Mbps): ?16?s (use the 64byte package size)
- Frame Filter & Transmission Rate: 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port
- Power Budget: 120W
- Power Input: AC 90~240V, Total: ?120W
- Power Output PoE 1-6 Port: 1/2(+52V), 3/6 (GND)?30W, PoE 7~8 Port: 1245(+53V), 3678 (GND) compatible 1/2 (+52V), 3/6 (GND)?60W
- Watchdog Port 1-8
- Lightning Protection 6KV, Per: IEC61000-4-5
- ESD Protection 8KV, Per: IEC61000-4-2
- Operating Temperature: -30°C ~60°C
- Operating Humidity: 10%~90% (Non-condensing)
- Storage Temperature: -40°C ~70°C
- Storage Humidity: 5%~90% (Non-condensing)
- Package Content: AC Power Cable, User Manual
- Dimension: 187mm(L) x 139mm(W) x 43mm(H)
- Weight: 1Kg
NVIDIA Spectrum SN2201 Network Switch
- Brand: Dell
- Form Factors: 48xRJ45 + 4x QSFP28
- Max 100GbE ports: 4
- Max 50GbE ports: 8
- Max 40GbE ports: 4
- Max 25GbE ports: 16
- Max 10GbE ports: 16
- Max 1GbE ports: 16
- Max 1Gbase-T ports: 48
- Max 100Mbase-T ports: 48
- Max 10Mbase-T ports: 48
- Throughput: 448Gb/s
- Packet Rate: 667Mpps
- Packet Buffer: 16 MB
- CPU: Dual-core x86
- System Memory: 8 GB
- SSD Memory: 20 GB
- 10/100/1000 Ethernet management Port: Single RJ45
- Serial Port: Single RJ45
- Config and Backup: Single USB port
- Power Supplies: 2 (1+1 redundant)
- Fans: 4 (N+1 redundant)
- Airflow Options: Forward/Reverse
- Power Supplies: Frequency: 50-60Hz
- Input range: 100-264 AC
- Input current 4.5-2.9A
- Typical Power (ATIS): 100W
- Rack Mounting: 4-Post 19” rack, Tool-Less Railkit
- Size (W x H x D): 1.72” x 16.84” x 17”
- (43.9mm x 428mm x 432mm)
- Weight: 7.41kg
NVIDIA Spectrum SN5600 Network Switch
- Brand: Dell
- NVIDIA Spectrum SN5600 Switch
- Connectors: 64 OSFP 800GbE
- + 1 SFP28 25GbE
- Max. 800GbE ports: 64
- Max. 400GbE ports: 128
- Max. 200GbE ports: 256
- Max. 100GbE ports: 256
- Max. 50GbE ports: 256
- Max. 40GbE ports: 128
- Max. 25 ports: 256+1
- Max. 10GbE ports: 256+1
- Max. 1GbE ports: 1
- Switching capacity (Tb/s): 51.2Tb/s
- Wire-speed switching (Bpps): 33.3Bpps
- Lanes per port x max. speed per lane: 8x 100G PAM4
- CPU: Hexa-core x86
- System memory: 32G
- SSD memory: 160GB
- Packet buffer: 160MB
- 100/1000Mb/s management ports: RJ45
- Serial ports: RJ45
- USB ports: USB Type 3
- Hot-swap power supplies: 2 (1+1 redundant)
- Hot-swappable fans: 4 (N+1 redundant)
- Airflow: Reverse
- Power supplies: Frequency: 50–60Hz
- Input range: 208–264Vac
- Operating conditions: 0–35ºC
- Size (H x W x D) 3.39’’ (H) x 17.2’’ (W) x 28.3’’ (D)
- 86.2mm (H) x 438mm (W) x 720mm (D)
NVIDIA Quantum X800 Q3200 XDR InfiniBand Switches
- Dell NVIDIA Quantum X800 Q3200 RA InfiniBand Switches
- Performance:Two switches, each of 28.8Tb/s throughput
- Switch radix: Two switches, each of 36 800Gb/s nonblocking ports
- Connectors and cabling: Two groups of 18 OSFP connectors
- Management ports: Separate 400Gb/s InfiniBand in-band
- management port (UFM)
- CPU: Intel CFL 4 Cores,i3-8100H 3GHz
- Security: CPU/CPLD/Switch IC, based on IRoT
- Software: NVOS
- Rack mount: 2U
- Cooling Mechanism: Air-cooled
- EMC (emissions): CE, FCC, VCCI, ICES, and RCM
- Product safety compliant/certified:RoHS, CB, cTUVus,CE, and CU
- Warranty: One year
- Dell NVIDIA Quantum X800 Q3400 RA InfiniBand Switches
- Performance: 115.2Tb/s throughput
- Switch radix: 144 800Gb/s non-blocking ports
- Connectors and cabling: 72 OSFP connectors
- Management ports: Separate 400Gb/s InfiniBand in-band
- management port (UFM)
- CPU: Intel CFL 4 Cores, i3-8100H 3GHz
- Security:CPU/CPLD/Switch IC, based on IRoT
- Software: NVOS
- Rack mount: 4U
- Cooling Mechanism: Air-cooled
- EMC (emissions): CE, FCC, VCCI, ICES,and RCM
- Product safety compliant/certified:RoHS, CB, cTUVus,CE, and CU
Dinstar UC200 Pro Network Switch
- Brand: Dinstar
- Product: Dinstar UC200 Pro Switch
- SIP Extensions: 60/200/500
- Concurrent Calls: 15/30/50
- Default Analog Ports: 2 FXS, 2 FXO
- Max FXS Ports: 8
- Max FXO Ports: 8
- concurrent calls: Up to 500 SIP users and 50 concurrent calls
- Power Supply: 12VDC, 2A
- Dimensions (W/D/H): 260×154×42mm
- Weight: 1.1kg
CP Plus CP ANW HPU8H2 N12 8 Port Fast Ethernet PoE Switch
- Brand: CP Plus
- Model No: CP Plus CP-ANW-HPU8H2-N12 8 Port POE Plus 2 Uplink Port PoE Switch
- Network Port PoE (1-6): 10/100Mbps PoE ports (RJ45), PoE (7~8): 10/100Mbps PoE ports (RJ45),Support bt 60W High Power, LAN: 10/100Mbps uplink ports (RJ45)
- Network Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
- Transmission Rate: 200Mbps Full Duplex; 10 or 100Mbps Half Duplex
- Transmission Distance: 1-2 ports 250m 10Mbps / 3~8 ports 130m 100Mbps
- MAC Address List: 2K
- Bandwidth: 2.0 Gbps
- Network Latency (10 to 100Mbps): ?16?s (use the 64byte package size)
- Frame Filter & Transmission Rate: 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port
- Power Budget: 120W
- Power Input: AC 90~240V, Total: ?120W
- Power Output PoE 1-6 Port: 1/2(+52V), 3/6 (GND)?30W, PoE 7~8 Port: 1245(+53V), 3678 (GND) compatible 1/2 (+52V), 3/6 (GND)?60W
- Watchdog Port 1-8
- Lightning Protection 6KV, Per: IEC61000-4-5
- ESD Protection 8KV, Per: IEC61000-4-2
- Operating Temperature: -30°C ~60°C
- Operating Humidity: 10%~90% (Non-condensing)
- Storage Temperature: -40°C ~70°C
- Storage Humidity: 5%~90% (Non-condensing)
- Package Content: AC Power Cable, User Manual
- Dimension: 187mm(L) x 139mm(W) x 43mm(H)
- Weight: 1 Kg

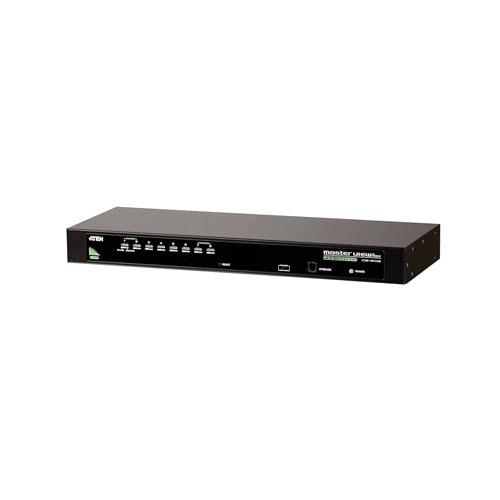

Aten CS1308 8 Port PS2 USB VGA KVM Switch
- Brand: Aten
- Product: Aten CS1308 8 Port PS/2-USB VGA KVM Switch
- Computer Connections Direct: 8 Port
- Computer Connections Maximum: 64 (via Cascade)
- Port Selection: OSD, Hotkey, Pushbutton
- Console Ports: 1 x SPHD-18 Male (Yellow)
- KVM Ports: 8 x SPHD-15 Female (Yellow)
- Firmware Upgrade: 1 x RJ-11 Female (Black)
- Power: 1 x DC Jack
- Ports: 8 x Pushbutton
- Firmware Upgrade: 1 x Slide
- Keyboard / Mouse: PS/2, USB
- Video: 2048 x 1536; DDC2B
- Scan Interval: 1 – 255 Seconds (Default: 5 secs)
- Power Consumption: DC5.3V:2.34W:19BTU/h
Ruiji RG ES226GCP 2 SFP 370W 24 Gigabit Smart PoE Switch
- Brand: Ruiji
- Model Mo: RG-ES226GC-P
- Product: Ruiji RG ES226GCP 2 SFP 370W 24 Gigabit PoE Port Switch
- Port: 24 port PoE+ 10/100/1000Base-T, 2 uplink SFP
- MAC address: 8000
- Switching Capacity: 52 Gbps
- Delivery speed: 38.69 Mpps
- Maximum VLAN: 16
- Port Power Surge Protection: 4 kV
- MTBF: Greater 200,000
- PoE: 370W, IEEE 802.3at / IEEE 802.3af
- Product Dimension: 440 mm x 289 mm x 43.6 mm
- Product Weight: 4.2 kg
- Warranty: 3 years Warranty
