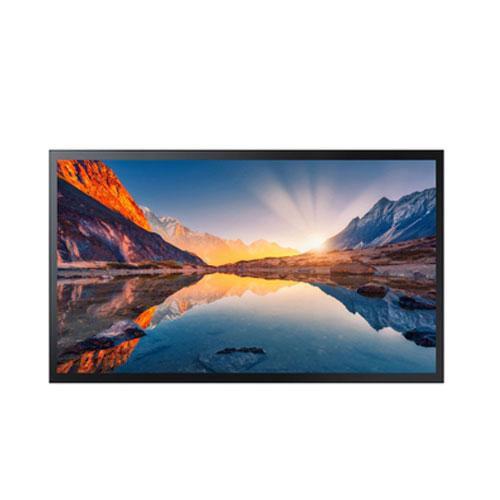

Samsung LH46UHFCDBB XL monitor
Display
- Diagonal Size : 1m 15cm (46")
- Panel Type : D-LED DID
- Resolution :1920 x 1080
- Pixel Pitch (HxV) : 0.53025 (H) x 0.53025(V)
- Active Display Size (HxV) : 1018.08(H) x 572.67(V)
- Brightness (Typical) :Max 700 cd/m2
- Contrast Ratio : 4000:1
- Viewing Angle (H/V) : 178/178
- Response Time :8 ms
- Display Color : 8 bit - 16.7M
- Color Gamut : 72 %
- H-Scanning Frequency :30kHz ~ 81kHz
- Maximum Pixel Frequency :148.5MHz
- V-Scanning Frequency :48Hz ~ 75Hz
- Brightness :Max 700
- Dynamic Contrast Ratio : MEGA DCR
Connectivity
- HDMI In :2
- DP In :1
- DVI In : 1
- USB : 1
- RGB In : D-Sub
- Audio In : Stereo Mini Jack, DVI/HDMI
- Audio Out :Stereo Mini Jack
- Video Out : DP 1.2
- RS232 In : Yes
- RS232 Out : Yes
- RJ45 In : Yes
- IR In : Yes
- IR Out : Yes
Power
- Power Supply :AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
- Power Consumption (Off Mode) : less than 0.5 W
- Power Consumption (On Mode) : Max:132W, Typ.:98W, BTU(Max):450.4W
- Power Consumption (Sleep Mode) : less than 0.5 W
Dimension
- Set Dimension (WxHxD) : 1023.8 x 578.4 x 47.9 mm
- Package Dimension (WxHxD) : 1171 x 734 x 277 mm
Weight
- Set Weight : 13.2 kg
- Package Weight : 19.2 kg
Mechanical Specification
- VESA Mount :400 x 400 mm
- Bezel Width : 3.4mm(U/L), 2.0mm(R/B)
Media Player Option Type
- SBB, Signage player box
Operation Conditions
- Temperature :0~40 ?
- Humidity : 10~80 (non-condensing)
General Feature
- Special :ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 11%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
Optional Feature
- Mount : WMN-46VD
