Video Conferencing
Polycom RealPresence Group 500 Video Conference System
- Package includes: RealPresence Group 500 codec
- Cable bundle
- Remote control
- EagleEye IV camera and RealPresence
- Group Microphone Array, or EagleEye
- Acoustic camera
- Video standards and protocols: H.261, H.263, H.264 AVC, H.264 High
- Profile, H.264 SVC, RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- Video Input: 1 x HDCI, 1 x HDMI 1.3, 1 x VGA
- Video Output: 2 x HDMI 1.3
- People video resolution
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 kbps
- QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Reconfigurable MTU size
- RS232 with API support
- Microsoft Office Communications
- Server integration
- Microsoft ICE support
- Microsoft Lync and Skype for Business support
- IBM Sametime support
- Content video resolution
- Input: HD (1920 x 1080i), HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p), XGA (1024 x 768)
- SVGA (800 x 600)
- Output: WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- VGA (640 x 480)
- Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content Sharing: People+Content and People+Content IP
- Audio input: 1 x RealPresence Group microphone
- array input port (supporting a total of 4 microphone arrays)
- USB headset support
- 1 x HDCI (camera)
- 1 x HDMI
- 1 x 3.5 mm stereo line in
- Audio output: 1 x HDMI
- USB headset support
- 1 x 3.5 mm stereo line-out
- Network intrusion detection system
- Local account password
- policy configuration
- Security profiles
- Web UI / SNMP Whitelists
- Local account and login port lockout
- Options: Polycom RealPresence Touch
- Polycom EagleEye Producer
- Polycom EagleEye Director II
- Polycom SoundStation IP 7000
- conference phone integration
- Polycom SoundStructure integration through a digital interface
- Other interfaces: 2 x USB 2.0, 1 x RS-232, 8 pin mini DIN
- Audio standards and protocols
- 22 kHz bandwidth with Polycom
- Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
- 14 kHz bandwidth with Polycom
- Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- Polycom Constant Clarity technology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Polycom NoiseBlock technology
- Polycom Acoustic Fence
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment
- Polycom Siren Lost Packet Recovery (LPR) technology
- Polycom StereoSurround technology
- Other supported standards: H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
- BFCP (RFC 4582), TIP
- Network: IPv4 and IPv6 support
- 1 x 10/100/1G Ethernet
- Auto MDIX
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Electrical: Auto sensing power supply
- Typical operating voltage/power
- 37VA 120V 60 Hz
- 37VA 230V 50/6 0Hz
- Typical BTU/h: 65
- Environmental specification
- Operating temperature: 0 to 40 °C
- Operating humidity: 15 to 80%
- Non operating temperature: -40 to 70 °C
- Non operating humidity (non-condensing): 5 to 95%
- Maximum altitude: 10000 ft
- Physical characteristics: RealPresence Group 500 base box
- 11.3 H x 1.2 W x 4.8 D
- 2.45 lbs
- Warranty: 1 year return to factory parts and labor
Polycom RealPresence Group 310 Video Conference System
- Packages include: RealPresence Group 310 codec
- Cable bundle
- Remote control
- EagleEye IV 4x camera and RealPresence
- Group Microphone Array, or EagleEye
- Acoustic camera
- Video standards and protocols
- H.261, H.263, H.264 AVC, H.264 High
- Profile, H.264 SVC, RTV
- H.239/BFCP for content sharing
- H.263 & H.264 Video error concealment
- Video In 1 x HDCI, 1 x HDMI 1.3, 1 x VGA
- Video Output: 2 x HDMI 1.3
- One HDMI output enabled standard, second output enabled with optional license key
- People video resolution
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Content video resolution
- Input: HD (1920 x 1080i), HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p), XGA (1024 x 768)
- SVGA (800 x 600)
- Output: HD (1920 x 1080i)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720p)
- XGA (1024 x 768)
- VGA (640 x 480)
- Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content Sharing: Polycom People+Content IP and
- Polycom Pano app support
- VbSS content in Microsoft environments
- PKI/Certificate Management: SSL 3.0, TLS 1.0, 1.1, 1.2
- Self-signed and CA-signed
- certificate support
- CRL and OCSP based certificate
- revocation checking
- Network intrusion detection system
- Local account password policy
- configuration
- Security profiles
- Web UI/SNMP Whitelists
- Local account and login port lockout
- API via Telnet and secure SSH interfaces
- Options: Polycom Pano
- Polycom RealPresence Touch
- Polycom EagleEye Cube camera
- Polycom EagleEye Producer
- Polycom EagleEye Director II
- Polycom SoundStation IP 7000
- conference phone integration
- Polycom SoundStructure integration through a digital interface
- Audio Input: 1 x RealPresence Group microphone
- array input port (supporting a total of 2 microphone arrays)
- USB headset support
- 1 x HDCI (camera)
- 1 x HDMI
- 1 x 3.5mm stereo line in
- Audio output: 1 x HDMI
- USB headset support
- 1 x 3.5mm stereo line-out
- Other interfaces: 2 x USB 2.0
- 1 x RS-232, 8-pin mini DIN
- Audio standards and protocols
- 22 kHz bandwidth with Polycom
- Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
- 14 kHz bandwidth with Polycom
- Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- Polycom Constant Clarity technology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Polycom NoiseBlock technology
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment
- Polycom Siren Lost Packet Recovery technology
- Polycom StereoSurround technology
- Active Lip Synchronization
- Other supported standards
- H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
- BFCP (RFC 4582), TIP
- Network: IPv4 and IPv6 support
- 1 x 10/100/1G Ethernet
- Auto MDIX
- H.323 and/or SIP up to 3 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Reconfigurable MTU size
- RS232 with API support
- Web Proxy support Basic, Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- Interoperability
- Microsoft Lync and Skype for Business
- certification, including Skype for Business
- Online / Office 365
- IBM Sametime support
- Zoom Meetings interoperability
- BlueJeans Cloud Services Interoperability
- Microsoft Office Communications
- Server integration
- Microsoft ICE support
- Security
- Media Encryption (H.323, SIP): AES-128, AES-256
- Authenticated access to admin menus, web interface, and telnet API
- H.235.6 support
- FIPS 140 2 Validated Cryptography (Validation Certificate 1747)
- Software options: Skype for Business and Lync Integration (including Skype for Business Online / Office 365)
- TIP interoperability
- Enhanced display license for 2nd monitor and touch monitor support
- 1080p license, providing up to 1080p60 for people and content
- Electrical: Auto sensing power supply
- Typical operating voltage/power
- 37VA 120V 60Hz
- 37VA 230V 50/60Hz
- Typical BTU/h: 65
- Environmental specification
- Operating temperature: 0 to 40 °C
- Operating humidity: 15 to 80%
- Non operating temperature: -40 to 70 °C
- Non operating humidity (non condensing): 5 to 95%
- Maximum altitude: 10000 ft
- Physical characteristics: RealPresence Group 310 base box
- 11.3 H x 1.2 W x 4.8 D
- 2.45 lbs
- Warranty: 1 year Warranty
Polycom RealPresence Group 700 Video Conference System
- Package includes: RealPresence Group 700 codec
- RealPresence Group Microphone Array
- Polycom EagleEye IV camera
- Cable bundle
- Remote control
- Rack (19) mounting ears
- Video standards and protocols
- H.261, H.263, H.264 AVC, H.264 High
- Profile, H.264 SVC, RTV
- H.239/Polycom People+Content
- H.263 & H.264 Video error concealment
- Video Input: 2 x HDCI
- 3 x HDMI 1.4
- 1 x YPbPr component
- 1 x dual RCA composite
- 1 x VGA
- Video Output: 3 x HDMI 1.3, 3 x VGA
- People video resolution
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448p from 384 Kbps
- w576p from 512 Kbps
- Network: IPv4 and IPv6 support
- 2 x 10/100/1G Ethernet Switch
- Auto MDIX
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Reconfigurable MTU size
- RS232 with API support
- Web Proxy support Basic, Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- Interoperability
- Microsoft Lync and Skype for Business
- certification, including Skype for Business Online
- IBM Sametime support
- Zoom Meetings interoperability
- BlueJeans Cloud Services Interoperability
- Microsoft Office Communications
- Server integration
- Microsoft ICE support
- Security: US DoD UC APL Certified (see the Polycom US Federal Government Accreditation site for details)
- Media Encryption (H.323, SIP): AES-128, AES-256
- Content video resolution
- Input: HD (1920 x 1080i)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- (1024 x 768)
- SVGA (800 x 600)
- Output: WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- VGA (640 x 480)
- Content Frame Rate: 5–60 fps (up to 1080p resolution at 60 fps)
- Content Sharing: Polycom People+Content IP and Polycom Pano app support
- VbSS content in Microsoft environments
- Audio input: 2 x RealPresence Group microphone
- array input ports (supporting a total of 4 microphone arrays)
- USB headset support
- 2 x HDCI (camera)
- 3 x HDMI
- 2 x RCA line in
- H.235.6 support
- Authenticated access to admin menus, web
- interface, and telnet API
- FIPS 140-2 Validated Cryptography (Validation Certificate 1747)
- PKI/Certificate Management:
- SSL 3.0, TLS 1.0, 1.1, 1.2
- Self-signed and CA signed
- certificate support
- CRL and OCSP-based certificate
- revocation checking
- Network intrusion detection system
- Local account password policy
- configuration
- Security profiles
- Web UI/SNMP Whitelists
- Local account and login port lockout
- Options: Polycom Pano
- Polycom RealPresence Touch
- Polycom EagleEye Producer
- Polycom EagleEye Director II
- Polycom SoundStation IP 7000 conference
- phone integration
- Polycom SoundStructure integration
- Software options: Skype for Business and Lync Integration
- (including Skype for Business Online
- TIP interoperability
- Audio output: 1 x HDMI (to in-room audio system)
- 1 x HDMI (to conference recording device)
- USB headset support
- 1 x RCA pair stereo line out
- Other interfaces: 2 x USB 3.0 (back)
- 1 x USB 2.0 (front)
- 1 x RS-232 DB9
- Audio standards and protocols
- 22 kHz bandwidth with Polycom
- Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
- 14 kHz bandwidth with Polycom
- Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- Polycom Constant Clarity technology
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Polycom NoiseBlock technology
- Polycom Acoustic Fence technology
- Live music mode
- Instant adaptation echo cancellation
- Audio error concealment
- Polycom Siren Lost Packet Recovery
- technology
- Polycom StereoSurround technology
- Active Lip Synchronization
- Other supported standards
- H224/H.281, H.323 Annex Q, H.225
- H.245, H.241, H.239, H.243, H.460
- BFCP (RFC 4582)
- TIP
- 1080p license, providing up to 1080p60 for people and content
- Multipoint license for up to 8 sites at 720p30, or 4 sites at 1080p30
- Electrical: Auto sensing power supply
- Typical operating voltage/power
- 85VA 120V 60 Hz
- 85VA 230V 50/60 Hz
- Typical BTU/h: 280
- Environmental specification
- Operating temperature: 0 to 40 °C
- Operating humidity: 15 to 80%
- Non operating temperature: -40 to 70 °C
- Non operating humidity (non condensing): 5 to 95%
- Maximum altitude: 10,000 ft
- Physical characteristics
- RealPresence Group 700 base box
- 17.2 H x 2.6 W x 12.8 D
- 11.45 lbs
- Warranty: 1 year return to factory parts and labor
Polycom CX5500 Unified Conference Station
- Dimensions: Table Console
- Footprint (W x D): 369 x 325 mm
- Height: 348 mm (privacy cap closed)
- 401 mm (privacy cap extended)
- Weight: 2.44 kg (exclusive of cables)
- Power Data Box
- Size (W x H x D): 209.5 x 300 x 56 mm (excluding stand)
- Weight: 2.9 kg
- Shipping
- Size (W x H x D): 520 x 430 x 430 mm
- Weight: 9.29 kg
- Power
- Power consumption: 110 watts, typical
- Universal power supply 100–240 V AC, 50–60 Hz
- Video performance
- Panoramic video resolutions supported:
- 1920 x 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1280 x 192 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1056 x 144 pixels
- Active speaker video
- resolutions supported
- HD 1080: 1920 x 1080 pixels (requires USB 3.0 & Lync 2013 or Skype for Business)
- HD 720: 1280 x 720 pixels
- VGA: 640 x 480 pixels
- CIF: 352 x 288 pixels
- Frame rate for panoramic and active speaker video, maximum
- 30 frames per second with 60 Hz AC power
- 25 frames per second with 50 Hz AC power
- Maximum frame rates with systems
- prior to Lync 2013 will be limited to 15 fps (12.5 50 Hz)
- Audio performance: Console Loudspeaker
- Frequency response: 160 Hz–22 kHz
- Volume: adjustable to 88 dBA SPL (peak) volume at 0.5 meters
- Console microphones
- 3 microphones for omnidirectional coverage
- Frequency response: 160 Hz–22 kHz
- EMC: CISPR 22 Class B (FCC, ICES, AS/NZS)
- VCCI Class B
- EN 55022 Class B
- EN 55024
- GB9254:2008, YD/T993-1998 (China)
- KCC approval (Korea)
- ANATEL (Brazil)
- Environmental requirements: Operating temperature: 0–40ºC
- Relative humidity: 15–85% (non-condensing)
- Storage temperature: -40–60ºC
- Recommended room conditions
- Telephony Performance
- Full Duplex (Class 1) with noise suppression
- Comfort noise fill
- DTMF tone generation/DTMF
- event RTP payload
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- Acoustic echo cancellation
- Background noise suppression
- Supported codecs are G.711 (A-law and µ-law), G.729AB, G.722, G.722.1, G.722.1C, G.719
- Call handling features: Call timer
- Call transfer, hold, divert (forward), pickup
- Called, calling, connected party information
- Local three way conferencing
- One-touch speed dial, redial
- Call waiting
- Remote missed call notification
- Automatic off-hook call placement
- Do not disturb function
- Lync client device synchronization
- Lync USB call control for Answer, Reject
- End Call, Hold, Resume and Swap
- Protocol supportNetwork and provisioning
- IP Address Configuration: DHCP and Static IP
- Time synchronization with SNTP server
- FTP/TFTP/HTTP/HTTPS serverbased
- central provisioning for mass deployments
- Provisioning server redundancy supported
- Web portal for individual unit configuration
- QoS Support IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
- Network Address Translation (NAT)
- support static
- RTCP support (RFC 1889)
- Event logging
- Local digit map
- Hardware diagnostics
- Status and statistics
- User selectable ringer tones
- Convenient volume adjustment keys
- Field upgradeable
- Security: Transport Layer Security (TLS)
- Encrypted configuration files
- Digest authentication
- Room reverberation time: RT60 <0.600 seconds
- Ambient noise level: <50 dBA SPL
- Optimal lighting conditions: 300 lux, with a single lighting temperature (no mixed lighting)
- Warranty: 1 Year Warranty
- Polycom CX5500 ships with Tabletop console with integrated 360º camera
- Power data box with stand
- Quick setup card
- Cables
- Password login
- Support for URL syntax with password for boot server
- HTTPS secure provisioning Support for signed software executables
- User interface
- 3 mute buttons with mute/in call
- indication lamps
- Camera on/off indication lamp
- Captive privacy cap with integrated on/ off switch for client synch
- Gesture based, multi touch capable
- capacitive touchscreen for voice calls
- 4.3in LCD (480 x 272 pixels) resolution
- User configurable contact directory and call history (missed, placed, and received)
- Customizable call progress tones
- Wave file support for call progress tones
- Console connectivity: Proprietary system port for connection to Power Data Box
- USB 3.0 Type A port for proprietary
- connection to Power Data Box
- USB 3.0 Type B port for connection to PC
- USB 2.0 Type A port for diagnostics/ software update
- 2 extension microphone ports
- Power data box connectivity
- Proprietary system port for connection to console
- USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
- USB 2.0 Type A for diagnostics/software update
- Ethernet: RJ-45 10/100/1000 Mbit
- Audio RCA jacks (reserved for future use)
- AC power input
- Physical security: Kensington-style lock slot on Console and Power Data Box
- Extension microphones (optional accessory)
- Frequency response: 160 Hz–22 kHz
- Mute button and indicator lamp
- Regulatory compliance
- Safety
- UL 60950 1
- EN 60950 1
- CSA C22.2 60950 1
- IEC 60950 1
- AS/NZS 60950 1
- GB4943-2011 (China)
- KCC approval (Korea)
- Proprietary system cable
- USB 3.0 Type A Type A cable
- USB 3.0 Type A Type B cable
- Ethernet cable
- AC power cord with local plug
- Optional accessories: Extension microphone kit with pair of microphones and cables
- Cable length is 25 ft (7.6 meters)
Polycom CX5100 Unified Conference Station
- Dimensions: Table Console
- Footprint (W x D): 369 x 325 mm
- Height: 348 mm (privacy cap closed)
- 401 mm (privacy cap extended)
- Weight: 2.3 kg (exclusive of cables)
- Power Data Box: Size (W x H x D): 209.5 x 300 x 56 mm (excluding stand)
- Weight: 2.9 kg
- Shipping: Size (W x H x D): 520 x 430 x 430 mm
- Weight: 9.07 kg
- Power
- Power consumption: 110 watts, typical
- Universal power supply 100–240 V AC,50–60 Hz
- Video performance:
- Panoramic video resolutions supported: 1920 x 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1280 x 192 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
- 1056 x 144 pixels
- Active speaker video resolutions supported
- HD 1080: 1920 x 1080 pixels (requires USB 3.0 & Lync 2013 or Skype for Business)
- HD 720: 1280 x 720 pixels
- VGA: 640 x 480 pixels
- CIF: 352 x 288 pixels
- Frame rate for panoramic and active speaker video, maximum
- 30 frames per second with 60 Hz AC power
- 25 frames per second with 50 Hz AC power
- Maximum frame rates with systems
- prior to Lync 2013 will be limited to 15 fps (12.5 50 Hz)
- Audio performance: Console Loudspeaker
- Frequency response: 160 Hz–22 kHz
- Volume: adjustable to 88 dBA SPL
- (peak) volume at 0.5 meters
- Console microphones: 3 microphones for omnidirectional coverage
- Frequency response: 160 Hz–22 kHz
- Full Duplex (Class 1) with noise suppression
- User interface: 3 mute buttons with mute/in call indication lamps
- Camera on/off indication lamp
- Captive privacy cap with integrated
- on/off switch for client synch
- Console connectivity
- Proprietary system port for connection to Power Data Box
- USB 3.0 Type A port for proprietary
- connection to Power Data Box
- USB 3.0 Type B port for connection to PC
- USB 2.0 Type A port for diagnostics/ software update
- 2 extension microphone ports
- Power data box connectivity
- Proprietary system port for connection to console
- USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
- USB 2.0 Type A for diagnostics/software update
- Ethernet: RJ-45 10/100/1000 Mbit
- Audio RCA jacks (reserved for future use)
- AC power input
- Physical security: Kensington-style lock slot on Console and Power Data Box
- Extension microphones (optional accessory)
- Frequency response: 160 Hz–22 kHz
- Mute button and indicator lamp
- Regulatory compliance
- Safety
- UL 60950 1
- EN 60950 1
- CSA C22.2 60950 1
- IEC 60950 1
- AS/NZS 60950 1
- GB4943-2011 (China)
- KCC approval (Korea)
- EMC
- CISPR 22 Class B (FCC, ICES, AS/NZS)
- VCCI Class B
- EN 55022 Class B
- EN 55024
- GB9254:2008, YD/T993-1998 (China)
- KCC approval (Korea)
- ANATEL (Brazil)
- Environmental requirements
- Operating temperature: 0–40ºC
- Relative humidity: 15–85% (non-condensing)
- Storage temperature: -40–60ºC
- Recommended room conditions
- Room reverberation time: RT60 <0.600 seconds
- Ambient noise level: <50 dBA SPL
- Optimal lighting conditions: 300 lux, with a single lighting temperature (no mixed lighting)
- Polycom CX5100 ships with Tabletop console with integrated 360º camera
- Power data box with stand
- Quick setup card
- Cables
- Proprietary system cable
- USB 3.0 Type A Type A cable
- USB 3.0 Type A Type B cable
- Ethernet cable
- AC power cord with local plug
- Optional accessories: Extension microphone kit with pair of microphones and cables
- Cable length is 25 ft (7.6 meters)
- Warranty: 1 Year Warranty
Polycom RealPresence EduCart 500 Video Conferencing Kit
- Easily expand the visual learning experience across multiple classrooms without expanding your budget
- Video Display: 55 LED flat panel
- Video standards and protocols
- H.261, H.263, H.264 AVC, H.264 High
- Profile, H.264 SVC, RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- People video resolution
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 kbps
- QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Video Input: 1 x EagleEye HD camera (HDCI)
- 1 x HDMI 1.3, 1 x VGA
- Video Output: 2 x HDMI 1.3
- Content video resolution
- Input: WUXGA (1920 x 1200)
- HD (1920 x 1080i), HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p), XGA (1024 x 768)
- SVGA (800 x 600)
- Audio standards & protocols
- Polycom StereoSurround technology
- 22 kHz bandwidth with Polycom
- Siren 22 technology
- 14 kHz bandwidth with Polycom
- Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- Automatic gain control
- Automatic noise suppression
- Instant adaptation echo cancellation
- Audio error concealment
- Keyboard noise reduction
- Live Polycom MusicMode technology
- Other ITU-supported standards
- H.224/H.281 far end camera control
- H.323 Annex Q far end camera control
- H.225, H.245, H.241
- H.239 dual stream
- H.460 NAT/firewall traversal
- Cart: Structural support for the included 55 display
- Adjustable height to accommodate user need, center of display height: 46, 50 or 54
- 2 x powered speakers (25W LF & 16W HF per speaker) with integrated high efficiency digital amplifier
- Sturdy side handles allow cart to be safely and easily moved and maneuvered
- 4 locking heavy duty swivel casters
- Integral cable runs from display top to base for hiding unsightly cables
- Integrated basket with cover to hold microphone/cable, IR remote
- Rear cover to neatly hide codec, power supply, and power bar behind display
- Options: 1080p license, providing up to 1080p60 for people and content
- Multipoint license for up to 6 sites (SDCP), or 4 sites (HDCP)
- Physical size: 49 W x 74 H x 33.25 D (with display and camera)
- Weight: 144 lbs
Polycom RealPresence Video Protect 500 Video Conferencing Kit
- Video Display: 24 LCD, EagleEye Acoustic with built in speakers
- Video standards and protocols
- H.261, H.263, H.264 AVC, H.264 High
- Profile, H.264 SVC, RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- People video resolution
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 kbps
- QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps, w448 from 384 Kbps and w576p from 512 Kbps
- Exterior Housing: 14 gauge steel
- High impact ¼ PETG Polycarbonate front panel for display and camera
- Exterior grade powder coat paint
- Sloping top, louvers and channels to prevent fluids from entering housing
- Pin-Torx security screws to access interior, with hinged front panel for easy service
- High impact handset with 36 armoured cable (left or right side mounting or none)
- Vandal resistant volume up/down buttons mounted to handset plate
- Separate wall mounting bracket to facilitate installation
- Choice of camera front panel with or without holes for hands free operation if desired
- Intelligent activation module
- Additional external control features
- available for system integrators:
- Master call hang up
- Mute microphone
- Call directory preset (up to 4)
- System in call indicator
- Switch to PC input
- Modes of operation
- Handset only mode (Audio through handset only with volume control)
- Auto answer mode: call comes in, video is auto answered, audio is muted until handset picked up
- Standard answer mode: call is only answered when handset is picked up
- Auto dial mode: system auto dials a preset when the handset is lifted
- Preset is labeled “auto dial
- Hang up call: system hangs up call
- when handset is placed on hook, with an built-in 3 second delay in case of accidental user error
- Hands free mode (No handset therefore no volume control)
- System auto answers only
- No other features
- Call is disconnected by far end hanging up call
- Audio through speakers only
- When using hands-free mode in larger and/ or noisy areas the use of external speakers may be necessary
- Both handset and hands-free mode (Includes volume control and auto dial features)
- System auto answers with audio through speakers
- Pick up handset and audio goes to handset only (privacy)
- Hang up handset and audio returns to speakers
- Feature needs pre-defining upon installation
- Options: 1080p license, providing up to 1080p60 for people and content, RTV
- Environmental specifications
- Operating temperature: 0–40°C
- Operating humidity: 15–80%
- Non operating temperature: -20–60°C
- Non operating humidity (non-condensing): 5–95%
- Maximum altitude: 10000 ft
- Power rating
- Electrical: Auto sensing power supply
- Typical operating voltage/power:
- 36W or 72VA typical 120V 60Hz
- 18W or 72VA 230V 50/60Hz
- Physical size and weight
- 23 ½ W x 19 H x 6 5/8 D without handset
- 27 W x 19 H x 6 5/8 D with handset
- 55 lbs fully assembled (including codec, camera and IR remote inside housing)
Poly Medialign Video Conferencing System
- Power supply: 110 V–240 V AC, 6 A max
- Operating temperature: 0–40 °C
- Operating humidity: 15%–80%
- non condensing
- Enclosure: Steel frame with steel and
- MDF covers
- DIMENSIONS:
- Medialign 65: (H) 1952 x (W) 1459 x (D) 161
- Medialign 65D: (H) 1952 x (W) 2928 x (D) 161
- Medialign 75: (H) 2222 x (W) 1735 x (D) 195
- Medialign 75D: (H) 2222 x (W) 3470 x (D) 195
- Medialign 86: (H) 2300 x (W) 1896 x (D) 215
- Medialign 86D: (H) 2300 x (W) 3863 x (D) 215
- PRODUCT WEIGHT:
- Medialign 65: 124.9 kg (275.4 lbs)
- Medialign 65D: 223.8 kg (493.4 lbs)
- Medialign 75: 158.7 kg (349.9 lbs)
- Medialign 75D: 294.9 kg (650.2 lbs)
- Medialign 86: 154.7 kg (341.0 lbs)
- Medialign 86D: 289.7 kg (638.7 lbs)
- POLY G7500 CODEC: Video standards and protocols
- H.264 AVC, H.264 High Profile, H.264
- SVC, H.265, RTV, H.239
- H.264 video error concealment
- VIDEO INPUT: 1x HDCI, 1x HDMI, 1x USB1
- VIDEO OUT: 2x HDMI, Touch Display Compatible
- PEOPLE VIDEO RESOLUTION: 4K, 30 fps (TX and RX) from 2048 Kbps
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- CONTENT VIDEO RESOLUTION:
- Input: UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
- Output: UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
- CONTENT SHARING: Polycom Content App support
- Apple AirPlay, Miracast
- 1x HDMI input
- AUDIO INPUT: Up to three IP Microphone Arrays
- Up to four Clink2 Microphones (using Poly
- Microphone IP Adapter)
- 1x HDMI
- 1x 3.5 mm stereo line in
- Active Directory external authentication
- Electrical
- Auto sensing power supply
- Typical operating voltage/power:
- 60 VA 120 V 50 Hz .49 PF
- 60 VA 120 V 60 Hz .49 PF
- 74 VA 200 V 50 Hz .40 PF
- 73 VA 200 V 60 Hz .40 PF
- 87 VA 260 V 50 Hz .34 PF
- 86 VA 260 V 60 Hz .36 PF
- AUDIO OUTPUT: 1x HDMI, 1x 3.5 mm stereo line out
- OTHER INTERFACES: 3x USB 3.0, 1x USB-C1
- 1x RS-232, 8-pin mini-DIN
- Bluetooth 5.0
- WiFi 802.11 a/b/g/n/ac (MIMO)
- Multichannel Concurrency
- AUDIO STANDARDS AND PROTOCOLS
- 22 kHz bandwidth with Polycom Siren 22
- technology, G.719 (M- Mode)
- 14 kHz bandwidth with Polycom Siren 14
- technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- NETWORK: IPv4 support
- 1x 10/100/1G Ethernet
- Auto-MDIX
- 3x 10/100/1G LLN supporting POE+/PSE
- H.323 and/or SIP up to 6 Mbps
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic Bandwidth Allocation
- Reconfigurable MTU size
- RS232 with REST and CLI API support
- Web Proxy support: Basic, Digest and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- Instant adaptation echo cancellation
- Audio error concealment: Poly Siren Lost
- Packet Recovery (LPR) technology
- Poly StereoSurround technology
- SECURITY: Media Encryption (H.323, SIP): AES-128, AES-256
- H.235.6 support
- Authenticated access to admin menus, web interface and APIs
- PKI/Certificate Management:
- TLS 1.2, 1.1, 1.0
- Self-signed and CA-signed certificate support
- CRL and OCSP-based certificate
- revocation checking
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- POLY CONSTANT CLARITY TECHNOLOGY
- Automatic gain control
- Automatic noise suppression
- Keyboard noise reduction
- Poly NoiseBlock technology
- Poly Acoustic Fence
- Live music mode
- OTHER SUPPORTED STANDARDS
- H224/H.281, H.323 Annex Q, H.225, H.245
- H.241, H.239, H.243, H.460
- BFCP (RFC 4582)
- TIP
- Network: IPv4 and IPv6 support
- 1x 10/100/1G Ethernet
- Auto-MDIX
- H.323 and/or SIP up to 6 Mbps
- Poly Siren Lost Packet Recovery (LPR) technology
Polycom RealPresence Utility Cart 500 Video Conferencing Kit
- Collaboration can take place anywhere with this flexible mobile solution
- Video display choices
- 22 dual displays
- No monitors
- Video standards and protocols
- H.261, H.263, H.264 AVC, H.264 High
- Profile, H.264 SVC, RTV
- H.239/Polycom People+Content
- H.263 & H.264 video error concealment
- People video resolution
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 kbps
- QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
- w288p from 128 Kbps
- w448 from 384 Kbps
- w576p from 512 Kbps
- Video Input: 1 x Polycom EagleEye HD
- Camera (HDCI): 1 x HDMI 1.3, 1 x VGA
- Video out: 2 x HDMI 1.3
- Content video resolution
- Input: WUXGA (1920 x 1200)
- HD (1920 x 1080i), HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x720p), XGA (1024 x 768)
- SVGA (800 x 600)
- Content frame rate: 5–60 fps (up to
- 1080p resolution at 60 fps)
- Content sharing: People+Content and Pano App
- Audio standards & protocols
- Polycom StereoSurround technology
- 22 kHz bandwidth with Polycom
- Siren 22 technology
- 14 kHz bandwidth with Polycom
- Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- Automatic gain control
- Automatic noise suppression
- Instant adaptation echo cancellation
- Audio error concealment
- Keyboard noise reduction
- M Mode for music and
- medical applications
- Other ITU-supported standards
- H.224/H.281 far-end camera control
- H.323 Annex Q far-end camera control
- H.225, H.245, H.241
- H.239 dual stream
- H.460 NAT/firewall traversal
- Cart: Structural support for two (2) 22 displays
- Tray that can be mounted on either side of the cart and can support a laptop or other device
- Ability to mount a wireless bridge on the back
- AC powered only unless the battery pack and power supply are purchased
- Ability to add a lock to the drawer (user supplied)
- 2 locking casters
- Basket on back for additional storage
- Hooks on the top/side of the cart for peripheral cable management
- I/O panel on the cart with access to the (2) USB ports on the codec, VGA, HDMI, and audio
- Options: Powered Speakers (enhanced audio) and housing
- Power supply, battery, and enclosure for easy field installation on the base of the cart
- 1080p license, providing up to 1080p60 for people and content
- Multipoint license for up to 6 sites (SDCP), or 4 sites (HDCP)
Logitech PTZ Pro 2 Video Conference Camera
FEATURES & BENEFITS:
Premium HD PTZ video camera for professional
video collaboration
Ideal for conference rooms training environments
large events and other professional video applications.
HD 1080p video quality at 30 frames per second
Delivers brilliantly sharp image resolution outstanding
color reproduction and exceptional optical accuracy.
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Advanced camera technology frees up bandwidth by
processing video within the PTZ camera resulting in a
smoother video stream in applications like Microsoft
Skype for Business.
90° field of view with mechanical 260° pan
and 130° tilt
Enhanced pan/tilt and zoom motor performance
make moving from preset to preset smoother. The
wide field of view makes it easy to see everyone
clearly.
10x lossless full HD zoom
Zoom wide or zero in on close-ups to clearly view
objects whiteboard content and other details.
Autofocus
Superior camera lenses provide unparalleled
sharpness color rendition and speed. Autofocus
ensures that people and objects are clear wherever
the camera is pointed.
Premium Logitech camera lens
Logitech designs and manufactures our own lenses to
meet the highest technical standards and provide the
experience of sitting in front of someone even if you
are a thousand miles away.
Far-end camera control
Operate camera pan tilt and zoom functions1 of a
remote PTZ Pro 2 Logitech ConferenceCam or select
Logitech webcams2.
Remote control
Easily operate camera pan/tilt/zoom functions during
meetings.
Multiple mounting options
Configure the conference room or event space the
way you want: use the PTZ camera on a table or wall
mount with included hardware. The camera includes a
standard tripod thread for added flexibility.
Plug-and-play USB connectivity
Easily connects to PC Mac and ChromeTM devices
with no additional software required.
Works with most video conferencing applications
Compatible with virtually any video conferencing
software app including the ones you already use.
Kensington security slot
PTZ Pro 2 is provisioned with a Kensington security slot
to help secure the equipment with an anti-theft lock.
3 camera presets
Select up to three preset locations for the camera view
and return to any of them with the push of a button
on the remote control.
Camera settings app
Adjust local camera pan tilt zoom image settings
and other advanced controls from a PC or Mac with
a simple-to-use software app.
PRODUCT DIMENSIONS + WEIGHT:
- Camera
- 131 x 130 x 146 mm
- 5.16 x 5.12 x 5.75”
- 580 g /20.46 oz
Remote
- 50 x 120 x 10 mm
- 1.97 x 4.72 x 0.39”
- 48 g / 1.69 oz
COMPATIBILITY:
- Certified for Skype for Business Optimized for Cisco
- Jabber and WebEx compatible3 Vidyo Certified Device
- Enhanced integration with Logitech Collaboration
- Program (LCP) members
SYSTEM REQUIREMENTS:
- Windows 7 Windows 8.1 or Windows 10
- Mac OS X 10.10 or higher
- For full HD support please check with software
- application provider for system requirements
INSIDE THE BOX:
- Camera
- Remote Control
- 10-foot USB Cable with Power Adapter Connection
- Power Adapter with Regional Plugs
- Mount
- Quick Start Guide
- Warranty Card
WARRANTY:2-year limited hardware
SOFTWARE DOWNLOADS:
- Optional Camera Settings App provides pan tilt zoom and other camera settings options.

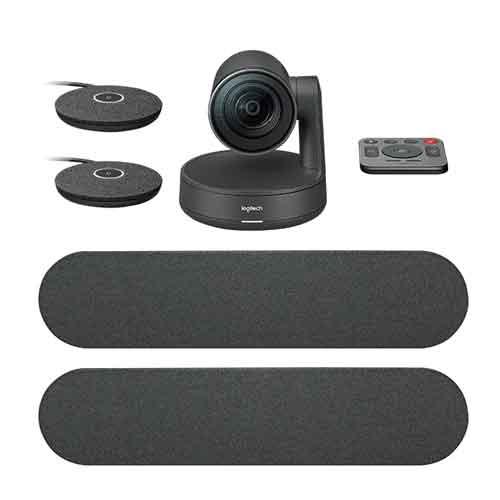

Logitech Rally Plus Video conferencing kit

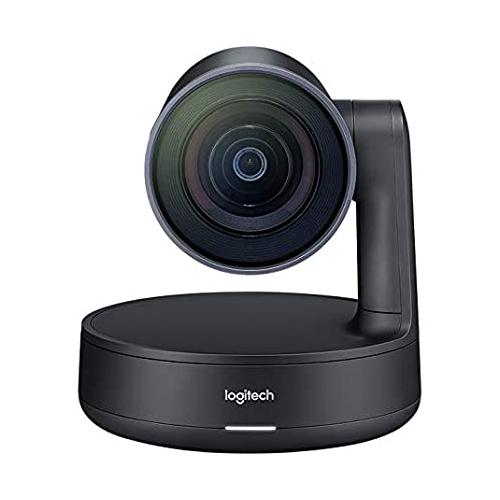

RALLY CAMERA:
- Ultra-HD imaging system supports:
- 4K 1440p 1080p 900p 720p and SD at 30fps
- 1080p 720p at 30 fps and 60 fps
- Smooth motorized pan tilt and zoom
- Pan: ±90°
- Tilt: +50° / -90°
- 15x HD zoom
- 90° field of view
- Adaptive pan and tilt speed up to 70°/second
- (slows when zoomed in for easier control)
- Automatic inversion detection to correct image
- orientation and camera controls when mounted
- upside down
- Autofocus
- 3 camera presets
- Kensington security slot
- Video mute/unmute LED indicator
- Standard tripod thread
- Lens parks at -90° in sleep mode for assured
- privacy
RALLY SPEAKER:
- High-performance 3” (76mm) driver
- Patent pending suspension system eliminates
- vibration-induced camera shake and audio
- interference
- Mini XLR cable (9.6 ft (2.95m)) connects
CABLES / POWER:
- Camera to Display Hub
- 6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1
- Conference Room Computer to Display or Table Hub
- 6.5 ft (2m) USB 3.1 Type A to USB Type B
- Display Hub to Table Hub
- 16.4 ft (5m) CAT6A Ethernet cable (supports
- customer-supplied cables up to 164 ft (50 m))
- Display Hub to Speaker (x2)
- 9.6 ft (2.95m) Mini XLR (supports customersupplied
- extension cables up to 9.8 ft (3m))
- Conference Room Computer to Displays (x2)
- 6.5 ft (2m) HDMI A
- Mic Pod
- 9.6 ft (2.95m): Hardwired with 12 pin connector
- Power Outlets to Power Supplies (x2)
- 3.2 ft (1m)
- Power Supplies to Table Hub / Display Hub (x2)
- 4.9 ft (1.5m)
RALLY TABLE HUB:
- Single cable (CAT6A) connection to Rally
- Display Hub (16.4 ft (5m) CAT6A Ethernet cable
- included supports customer-supplied cables up
- to 164 ft (50 m))
- Active speaker detection: analyzes audio from up
- to 7 Mic Pods and 56 beams every 8ms
- 12 Pin connector for Rally Mic Pod
- HDMI Type A for wired content sharing
- HDMI Type A for display
- Power input
- USB Type C (Ultra HD / 4K capable)
- USB Type A (reserved for future capability)
- USB Type B (connects to meeting room computer)
- RJ45 (Ethernet)
- Bluetooth wireless technology
RALLY DISPLAY HUB:
- HDMI Type A (x2) (connects to displays)
- Power input
- USB C (connects to Rally Camera)
- USB Type B (connects to meeting room computer)
- RJ45 (connects to Table Hub)
- Mini XLR (x2) (connects to Rally Speakers)
- Powers one or two Rally Speakers
RALLY MIC POD:
- Pickup range: 15 ft / 4.5m diameter
- Four microphones with eight beamforming
- elements
- Mute button with LED status indicator
- Captive cable: 9.6 ft (2.95m)
- Daisy chain up to 7 Rally Mic Pods
- Recommended participants:
- Rally (one Mic Pod): 10
- Additional participants per Mic Pod: 6
- Recommended participants for Rally with
- 7 Mic Pods: 46
REMOTE CONTROL:
- RF remote control (line of sight not required)
- CR2032 batteries (included)
RIGHTSENSE TECHNOLOGIES:
- RightLight with Wide Dynamic Range (WDR)
- RightSight automatic camera control1
- RightSound Mic Matrix
- RightSound Anti-Vibration Speakers
COMPATIBILITY AND INTEGRATIONS:
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for
- Teams
- Certified for Google Hangouts Meet Hardware
- Zoom Certified
- Cisco Compatible
- Compatible with BlueJeans BroadSoft
- GoToMeeting Vidyo and other video
- conferencing recording and broadcasting
- applications that support USB cameras
WARRANTY- 2-year limited hardware warranty
Polycom EagleEye IV USB conference Camera
- Camera Type:1/2.7" CMOS
- H/V Resolution:1920 x 1080
- Output:1080p30/25, 720p30/25, 960x540p30/25, 640x360p30
- Compression:H.264 SVC/AVC
- Lens Focal Length:f=3.5mm to 42.3mm
- Lens F:1.8-2.8
- Zoom:12x optical
- Focus:Auto
- Horizontal Field of View:6.9 - 72.5?
- Vertical Field of View:3.9- 44.8?
- Min. Illumination:0.5Lux @ (F1.8, AGC ON)
- Exposure:Auto-iris, AGC
- SNR:= 55dB
- Pan range:+/- 170
- Tilt range:+90/-30
- I/O:USB 2.0
- Power consumption:12v @ 1.5A power
- Dimensions (W x H x D):141.5 x 175.9 x 151.8 mm
- Video system compatibility:Certified Skype Room System, Polycom Trio 8800 Visual+
- Room Size:Small, medium, large
- Warranty:One-year return to factory parts and labor
Polycom EagleEye Cube Video Conferencing
EagleEye Cube Features
• Integrated privacy shutter
• 4K Sensor
• 1080p60 (HDCI) / 4K30 (USB)
• Mechanically adjustable tilt
• Anti-flicker compensation
• Muti-color LED
CAMERA
• 1 /2.5’’ CMOS
• f/2.0 aperture (HDCI)
• f/2.8 aperture (USB)
• 4K sensor
• Min Illumination 50 lux
• Horizontal FOV - 110? / 120? DFOV (HDCI)
111? / 121? (USB)
• Vertical FOV - 66? (HDCI) 75? (USB)
• Automatic exposure and white balance
• Lens Focal Length - f=3mm (HDCI), 2.29mm
(USB)
• Focus - Fixed
• 5x electronic zoom (2.0x lossless)
• Vertical tilt – adjustable via mount
AUDIO
• 2 built-in microphones
INPUT/OUTPUT
• USB 3.0
• HDCI, 60 pin (incl: power, Comm,
IR, HDMI, audio)
COMPATIBLE PRODUCTS
• Poly G7500 2.1 or above (USB)
• Visual+ 5.9.0.1 and Companion App 1.2.0
(USB)
• Polycom Trio? 8500* with VisualPro 6.2.1
or above (HDCI)
• Polycom Trio? 8800* with VisualPro 6.2.1
or above (HDCI)
• RealPresence Group Series with 6.2.1
or above (HDCI)
CAMERA FIRMWARE UPDATES
The EagleEye Cube HDCI camera receives
firmware updates through software updates
through connected hardware. USB version
updates through Companion App, Visual+ or
Windows Software Update Utility.
AUTO GROUP FRAMING MODES
• Frame Speaker (USB only), Frame Group
or off
• Framing size: Tight, Medium, Wide
• Framing speed: Fast, Normal, Slow
DIMENSIONS (W X H X D)
• 79.75 x 81.08 x 80.5 mm
POWER CONSUMPTION
• 4 Watts, 0.34A, DC12V (HDCI)
• 0.9A, 5V (USB)
SAFETY
• NRTL Safety
• CB Safety
OTHER FEATURES
• Participant count
• Skin enhancement
• Wide dynamic range
• Lens distortion correction (HDCI)
TEMPRATURE RANGE
• Operating: 0?C to 45?
• Non-operating: -40?C to 70?C
HUMIDITY RANGE
• Operating: 15%-80%
• Non-operating: 5% to 95%
(non-condensing)
ALTITUDE RANGE
• Operating: -50 feet to 10K feet
• Non-operating: -50 feet to 35K feet
WARRANTY
One (1) year
Polycom EagleEye Director II Video Conferencing
Product specifications:
Package includes:
• EagleEye Director II base, power supply and necessary cables
• EagleEye Director II base, power supply, necessary cables and one
EagleEye IV camera
• EagleEye Director II base, power supply, necessary cables and two EagleEye IV cameras
Compatible cameras
• 2x EagleEye? IV 12X camera
Compatible Polycom video systems
• Polycom RealPresence Group 300, 310, 500, 550 and 700**
• Poly G7500
Compatible Skype for Business
video systems
• Certified for Skype for Business
• Microsoft Surface Hub (55” and 84”)
• Skype for Business 2015 and Lync 2013
client running on Microsoft Windows 7, 8, 8.1 or 10
Recommended room size
• Participants should be within 33 feet (10m) of each EagleEye Director II
• Performance may vary in different room configurations
Modes
• Frame speaker
• Frame group
Connections
• 1 x mini-HDCI out to video system
• 2 x USB 2.0
• 1 x 3.5 mm stereo line-in
• 1 x HDMI in
• 1 x HDMI out
Environmental Specifications
• Operating temperature:
0? — 40? C ambient
• Operating humidity: 10—90%
• Storage temperature: -40? — 70? C
• Non-operating humidity : 5% — 95%, non-condensing
• Altitude: 5,000 meters operational, 10,668 meters non-operational (transportable)
• Will operate in florescent lighting environments worldwide
Physical characteristics
• Base box with vertical array 11.14” x 21.57” x 5.5” (H x W x D)
• 283 mm x 548 mm x 140.5 mm (H x W x D)
• Weight: 4.7kg with two EagleEye IV cameras
Electrical
• Auto sensing power supply
• Typical operating voltage/power
- 100 — 240VAC, 50/60Hz Output 12V@5A
Polycom EagleEye Video Conferencing
Package Includes
• Polycom EagleEye Producer
• Power supply
• Necessary cables for Polycom EagleEye III, EagleEye IV
camera connection
Compatible IC cameras
• Polycom EagleEye I, II, III
• Polycom EagleEye IV
Compatible endpoints
• Polycom? RealPresence? Group Series 300, 310, 500, 550, 700
Connections
• 1x HDCI (Out to Polycom RealPresence Group Series)
• 1x HDCI to HDCI to EagleEye III or 1 HDCI to Mini-HDCI
(Optional EagleEye IV)
• USB for local upgrades
• Power
Camera characteristics
• Horizontal field of view 80 degrees
• Vertical manual tilt
Recommended room size
• Participants should be within 19.6 ft / 6m of EagleEye Producer
• Performance may vary in different room configurations
Environmental specifications:
• Operating temperature: 0–40?C
• Operating humidity: 15–80%
• Non-operating temperature: -40–70?C
• Non-operating humidity (non-condensing): 5–95%
• Maximum Altitude: 10,000 ft
Power rating
• Electrical: Auto sensing power supply
• Typical operating voltage/power:
• 22VA typical @ 120V @ 60Hz
• 26VA @ 230V @ 50/60Hz
• Typical BTU/h: 106 BTU/h
Physical size and weight
• 11.3" H x 1.2" W x 4.8" D
• 1.93 lbs.
Warranty
• One-year return to factory parts and labor
Polycom Soundstation IP 6000 conference phone
- Model IP : 6000
- Display Resolution : 248 x 68 pixels
- Type : Power adapter - external
- Dialer Type keypad
- Speakerphone : Yes
- Power : IEEE 802.3af Power over Ethernet (built in), AC power supply: 100-240V, 0.4A, 48V/19W
- Display : Size (pixels): 248 x 68 (W x H)
- Keypad : Standard 12-key keypad, Context-dependent soft keys: 3
- Audio features : Loudspeaker, Frequency: 220-14,000 Hz, Volume: Adjustable to 86 dB at 1/2 meter peak volume
- Security : Transport Layer Security (TLS), Digest authentication, Password login, HTTPS secure provisioning
- Protocol support : IETF SIP (RFC 3261 and companion RFCs
- EMC : ICES-003 Class B, EN55022 Class B, CISPR22 Class B
- Telecom : Telepermit, KCC, AS/ACIF S004
- Safety : CE Mark, IEC60950-1, RoHS Compliant
- Function Buttons : mute button, redial button
- Additional Features : on-hook dialing
- Packaged Quantity : 1
- Features : echo cancellation
- Phone Connections : Type - audio line out, Connector Type - sub-mini-phone 2.5 mm
- CE Cables : Type - network cable, Length - 25 ft
- Backlit : Yes
- Color Support : monochrome
LOGITECH BCC950 Video Conference Cam
- Part No: 960-000939
- Camera: Full HD 1080p video calling up to (1920 x 1080) pixels, 720p HD video calling up to 1280 x 720 pixels with supported clients
- Diagonal: 78
- Horizontal: 70.42
- Vertical: 43.3
- Zoom: 1.2x HD zoom
- Angle: 228 mm extender stem for elevation eye-level camera angle
- Remote Control: IR 3 m range, CR2032 battery
- Speaker: Frequency response: 220Hz – 20KHz, Max output: 80 dB SPL at 0.3 m
- Dimensions: Height: 154 mm, Width: 150 mm, Depth: 104 mm
- Weight: 568 g
- Warranty: 2 Years Limited Warranty
Logitech Conference Cam Connect All In One Video Collaboration For Small Groups
- Part : 960-001034
- Camera : Full HD 1080p video calling (up to 1920 x 1080 pixels) at 30 frames-per-second7, H.264 UVC 1.5 with Scalable Video Coding (SVC), 90-degree field of view with autofocus, 4X digital zoom in full HD
- Speakerphone : Integrated full duplex speakerphone with echo and noise cancellation, 360-degree wideband audio with 12-foot diameter range, Bluetooth® and NFC enabled, Controls for call answer/end, volume, mute
- Remote Control : Dockable remote control for camera/speakerphone functions, 10-foot range
- Microphones (Tx) : Frequency response: 100Hz – 16kHz, Sensitivity: -34dB +/-3dB, Distortion: <1% @ 1KHz at 65dB
- Speakers (Rx) : Frequency response: 140Hz – 16KHz, Sensitivity: 89dBSPL +/-3dB at 1W/0.5M, Max output: 91.5dBSPL at 0.5M, Distortion: <5% from 200Hz
- Wireless Screen Mirroring And Connectivity : HDMI connector for TV output, Screen mirroring2 through WiFi connection to the device
- Primary Pack : EAN Code: 5099206059030, Dimensions: 41.9 x 14.5 x 9.1 cm / 16.5 x 5.7 x 3.6 inch, Weight: 1.34 kg / 47.26 oz,
- Weight/Dimensions with clip : 75 x 304.2 x 75 mm, 2.95 x 11.98 x 2.95 inch, 766 g / 27.01 oz
- Packaging Dimensions : 91 x 419 x 145 mm, 3.6 x 16.5 x 5.7 inch, 1340 g / 47.26 oz
- Remote : 41 x 128 x 9 mm, 1.6 x 5 x .35 inch, 32 g / 1.13 oz
- System Requirements : Windows 7 or 8.1, Mac OS® X 10.7 or higher
- Google Chromebook Version : 29.0.1547.70, Platform 4319.79.0 with 2.4 GHz Intel® Core 2 Duo processor, 2GB RAM or more, Hard drive space for recorded videos, USB
- 2.0 port (USB 3.0 ready)
- Screen mirroring : Android 4.3 or higher, Windows 8.1 or higher
- Warranty : 2-year limited hardware
Logitech MeetUp Video Conference Camera for Huddle Rooms
- Part : 960-001101
- Camera : 400 x 104 x 85 mm, 15.75 x 4.1 x 3.35”, 400 x 104 x 85 mm, 15.75 x 4.1 x 3.35”, 1.04 kg / 2.3 lbs
- Remote : 83 x 10 x 83 mm, 3.25 x 0.375 x 3.25”, 72 g / 2.5 oz
- Remote control : 5 m USB 2.0 cable
- System Requirements : Windows 7, Windows 8.1, or Windows 10, Mac OS X® 10.10 or higher, 2.4 GHz Intel® Core 2 Duo processor, 2GB RAM or more, USB 2.0 port (USB 3.0 required for 4K video)
- Software Downloads : Pan, tilt and zoom, Pan, tilt and zoom
- MeetUp : UPC : 097855130037
- MeetUp + Expansion Mic : UPC: 097855133267
- Optional Expansion Mic : UPC: 097855131171
- Optional TV Mount : UPC: 097855133250
- Features : Super-wide 120° field of view, RF remote control, 3 camera presets, All-in-one design
- Warranty : 2 year limited hardware
Logitech B525 HD Webcam
TECH SPECIFICATIONS:
HD video calling (1280 x 720 pixels) with
recommended system
Autofocus
Built-in mic
69° diagonal field of view
Universal clip fits laptops LCD or CRT monitors
Hi-speed USB 2.0 certified
UVC compliant
True 2.0-megapixel sensor with RightLight™ 2
technology
Works with most video conferencing applications
5-foot cable
PRODUCT SPECIFICATIONS:
B525 HD Webcam
PRODUCT DIMENSIONS + WEIGHTWith
Clip
68.5 x 29 x 40.4 mm
2.7 x 1.14 x 1.6”
88g/3.1oz
INSIDE THE BOX:
Webcam
User documentation
SYSTEM REQUIREMENTS:
UVC mode (No software installation required)
Windows 7 Windows 8 or
Windows 10
COMPATIBILITY:
Certified for Skype for Business and Optimized
for Microsoft LyncTM Cisco Jabber® and WebEx®
compatible. Enhanced integration with Logitech
Collaboration Program (LCP) members1.
WARRANTY
3-year limited hardware.
FEATURE SPOTLIGHT:
Works with most video conferencing applications
Users are free to use the desktop video conference
program of their choice.
High quality microphones
Built-in mic ensures sound is crystal clear.
Fold-and-go for ultimate mobility
Integrated fold-and-go design let’s you easily pack
the camera and take it with you without needing a
separate case – perfect for the busy professional on
the go.
Premium HD quality with autofocus
720p HD up to 30 fps with autofocus – images stay
razor sharp in high definition even in close-ups (up to
10 cm from the camera lens).
Three-year limited hardware warranty
Logitech for Business supports the needs of
businesses with extended warranty.
True 2.0-megapixel sensor with RightLight™ 2
technology
Maintain high quality image calling even in offices or
conference rooms with lower lighting.
Design advantages for business
With the 360° swivel easily position the camera at
multiple angles whether for single party or multi-party
calling. And if you don’t want to be seen swivel the
camera away from you for privacy.
True plug and play
Just plug in Logitech B525 HD Webcam choose
your video application of choice and start your
meeting.
Universal clip
Fits your LCD monitor or laptop wherever you work.
Logitech GROUP Video conferencing System
TECH SPECS:
CAMERA:
- Smooth motorized pan tilt and zoom controlled from remote or console
- 260°pan 130° tilt
- 10x lossless HD zoom
- 90° Field of View
- Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus
- 5 camera presets
- Far-end control (PTZ) of ConferenceCam products
- ZEISS® lens certification
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread
SPEAKERPHONE:
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Bluetooth and NFC wireless technology
- LCD for caller ID call duration and other functional response
- LEDs for speakerphone streaming mute hold and Bluetooth® wireless pairing
- Touch controls for call answer/end volume and mute Bluetooth wireless enabled – plus camera PTZ “home” preset and far-end control
- Kensington security slot
HUB / CABLE:
- Central mountable hub for connection of all components
- Included adhesive solution for under-table mounting
- Two cables for connection between hub and camera/speakerphone (Length: 5m/16-foot)
- One USB cable for connection to PC/Mac® (Length: 3m/9.8-foot)
- AC Power adapter (Length: 3m/9.8-foot)
MOUNT:
- Dual purpose mount for wall placement or for elevating the camera on a table
Microphones (Tx):
- Four omni-directional microphones supporting 20-foot diameter range
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28dB +/-3dB
- Distortion: <1 % @ 1KHz at 106dB
COMPLIANCE AND TOOLS:
- USB 2.0 compliant
- UVC-compliant video and audio for broad application compatibility
- Optimized for Microsoft Lync Certified for Skype for Business Cisco Jabber and WebEx compatible. Enhanced integration with Logitech Collaboration Program (LCP) members.
- Downloadable diagnostic tool
- Field upgradeable firmware tool
- Downloadable app plug-ins for advanced feature support
Speakers (Rx):
- Frequency response: 120Hz – 14KHz
- Sensitivity: 83dBSPL +/-3dB at 1W/1M
- Max output: 91dBSPL
- Distortion: <5 % from 200HZ
REMOTE CONTROL:
- Dockable remote control
- 8.5m/28-foot range
WARRANTY:2-year limited hardware
Logitech Rally Ultra HD Video Conferencing System
- Brand : Logitech
- Model No : Logitech Rally Ultra HD Conference
- Part Number : 960-001238
- Camera : Zoom: 15x HD zoom (5x optical + 3x digital)
- Pan : 180° (±90°)
- Tilt : 140° (+50° / -90°)
- Field of View : Diagonal: 90°, Horizontal: 82°, Vertical: 52°
- Total Room Coverage : 262° wide x 192° tall (field of view + pan and tilt)
- Resolutions at 30fps : 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
- Resolutions at 60fps : 1080p, 720p
- RightLight Technologies : Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
- Privacy : Lens parks at -90° in sleep mode for assured privacy
- Rally Mic Pod : Pickup Range: 7 m diameter Four omnidirectional microphones forming eight acoustic beams
- AEC : Acoustic Echo Cancellation
- VAD : Voice Activity Detector, Background noise suppression, Mute button with LED status indicator, Captive 2.95 m 12-pin cable, Daisy chain up to 7 Rally Mic Pods
- Frequency Response : 90Hz – 16kHz
- Sensitivity : >-27 dB +/-1dB at 1Pa
- Microphone data rate : 48 kHz, Rally (one Mic Pod) : 16, Rally Plus (two Mic Pods) : 16, Additional participants per Mic Pod : 6, Recommended participants for Rally with 7 Mic Pods : 46
- Speaker : High-performance 76 mm driver with rare-earth magnet, Patent-pending suspension system eliminates vibration-induced camera shake and audio interference, Mini XLR cable connects to Rally Display Hub for both signal and power, Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
- Sensitivity : 95+/-2 dB SPL at ½ meter
- Distortion : 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
- Sampling rate : 48 kHz
- Table Hub : Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m, Hub 5 m cable included, supports customer-supplied cables up to 50 m
- Active speaker detection : analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms, 12 Pin connector for Rally Mic Pod, HDMI Type A passthrough to Display Hub (x2), USB Type C, USB Type A (reserved for future capability), USB Type B (connects to meeting room computer), RJ45 (reserved for future capability), Power input
- Display Hub : HDMI Type A: (x2) (connects to displays), USB C (connects to Rally Camera), USB Type B (connects to meeting room computer)
- RJ45 : connects to Table Hub
- Mini XLR : x2, Powers one or two Rally Speakers, Power input
- Remote Control : RF remote control (line of sight not required), CR2032 batteries (included)
- Cables / Power : Camera to Display Hub: 2 m USB 3.1 Type C to USB Type C 3.1
- Conference Room Computer to Display or Table Hub : 2 m USB 3.1 Type A to USB Type B
- Display Hub to Table Hub : 5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
- Display Hub to Speaker (x2) : 2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
- Conference Room Computer to Displays (x2) : 2 m HDMI A
- Mic Pod : 2.95 m: Hardwired with 12 pin connector
- Power Outlets to Power Supplies (x2): 1 m - 1 m
- Power Supplies to Table Hub / Display Hub (x2) : 1.5 m
- Accessories : RALLY MOUNTING KIT : Rally Mounting Kit with cable retainers: (x2) and mounting brackets for camera, speakers (x2), and hubs (x2), Rally Mic Pod, Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms, MIC POD MOUNT, Anchors mics and hides cables for a finished look, Rally Mic Pod Hub, Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling, Rally Speaker: Add a second Rally Speaker for larger rooms
- Include Box : Logitech Rally Plus, Rally Camera, Rally Display Hub, Rally Table Hub, Rally Speaker (x2), Rally Mic Pod (x2), Remote control, USB Type C to USB Type C, USB Type A to USB Type B, CAT6A Ethernet cable, HDMI Type A (x2), A/C cables (x2), Power Supplies (x2), Documentation
- Dimensions (W x D x H) : 152 mm x 152 mm x 182.5 mm
- Color : Black
- Weight : 3.72 kg
- Warranty : 2-Year Limited Hardware Warranty
Polycom Soundstation IP 7000 conference phone
- Model IP : 7000
- Display Resolution : 255 x 128 pixels
- Type : conference VoIP phone
- Dialer Type keypad
- Speakerphone : Yes
- Power : IEEE 802.3af Power over Ethernet, Universal AC power supply: 100-• 240V, 0.4A, 48V/19W
- Audio features : Frequency: 160–22,000 Hz, Volume: Adjustable to 88 dB at 1/2
- Safety : UL60950-1. EC60950-1
- EMC : FCC (47 CFR Part 15) Class A, ICES-003 Class A, EN55022 Class A
- Protocol support : IETF SIP (RFC 3261 and companion RFCs), IEEE 802.3af Power over Ethernet version
- Security : Digest authentication, Password login
- Function Buttons : conference button, mute button, redial button
- Additional Features : built-in web server, on-hook dialing
- Packaged Quantity : 1
- Features : echo cancellation
- Phone Connections : Type - USB, audio line out, Connector Type - sub-mini-phone 2.5 mm
- CE Cables : Type - network cable, Length - 25 ft
- Backlit : Yes
- Color Support : monochrome
Polycom Video Conferencing
- Easy to use
- Polycom RealPresence Group 310
- Polycom Distributed Media Application DMA 7000 solution
- Polycom RMX 1500, 2000 and 4000 platform
- Polycom RSS4000 Recording and Streaming Server
- Polycom CMA 5000 Converged Management Application
- Polycom Video Border Proxy (VBP) - E & ST Series
- Multi-user video conferencing – up to 25 participants
- Browser access feature - attend your video conference directly from your browser
- Audio only conferencing with global access numbers
- Secure - Supported by leading encryption standards: AES-128, AES- 256, H.235 V3, SRTP
- Screen sharing / Content sharing
- Dynamic meeting visual layouts – control them from your desktop and end points (using DTMF)
- Real-time reporting – call quality, bandwidth, etc for each participant
- Audio codecs: G.711u, G.711a, G.722, G.722.1 24kHz, G.722.1 32kHz, G.722.1c/Siren 14, G.729A, iSAC, SILK 8kHz, SILK 16kHz
- Video codecs: RTVideo , H.264, H.263+, H.263, H.261
- Polycom Voice
- Polycom Microsoft Solutions
- Polycom Realpresence Platform
Polycom Realpresence 300 or 310 or 500 or 700 Group Series
- Polycom EagleEye IV camera
- RealPresence Group Remote Control
- RealPresence Group Microphone Array
Logitech BRIO Webcam
PRODUCT SPECIFICATIONS:BRIO
CERTIFICATIONS:
Certified for Skype for Business3 Windows Mac and
Microsoft Windows Hello certified
SYSTEM REQUIREMENTS:
Windows 7 Windows 8.1 or Windows 10
Mac OS X 10.10 or higher
Google Chromebook Version 29.0.1547.70
Platform 4319.79.0 with:
2.4 GHz Intel Core 2 Duo processor
2 GB RAM or more
Hard drive space for recorded videos
USB 2.0 port (USB 3.0 required for 4K)
COMPATIBILITY:
UVC/plug-and-play compatible
Works with Cortana
Cisco Jabber™ and WebEx® compatible
PRODUCT DIMENSIONS + WEIGHT:
Camera
102 x 27 x 27mm
4 x 1 x 1”
63g/2.2oz
Clip
36 x 99 x 6mm
1.4 x 3.9 x 0.22”
44g/1.5oz
Cable
2.2m
7.2’
63g/2.2oz
INSIDE THE BOX:
Webcam camera removable clip and USB 3.0 cable
with Type A connector
SOFTWARE DOWNLOADS:
Designed to work with the built-in operating system
USB video-class driver
Optional Camera Settings App provides:
Adjustable field of view
Camera image settings
Pan tilt and zoom
Integrated background replacement labs project
powered by Personify
WARRANTY
3-year limited hardware
FEATURES & BENEFITS:
Ultra HD 4K image sensor
Supports multiple resolutions including 4K (Ultra HD)
@ 30 fps 1080p (Full HD) @ 30 or 60 fps and 720p
(HD) @ 30 60 or 90 fps to best support the quality
offered by your application and monitor.
RightLight™ 3 with HDR
Look your best in any lighting environment from low
light to direct sunlight or high contrast.
Ultra-secure login with infrared sensor
Infrared technology supports facial recognition for
advanced security with Windows Hello™ or other
facial recognition software.
5X digital zoom
Need a closer view of fine details? Zoom in and move
around your scene with precision using Logitech or
in-app controls.
Expansive field of view
Adjust your field of view from 90° to show more of
your setting or include more people—or narrow the
scope to 65° or 78° for more focused communication
Razor-sharp optics with autofocus
Enhance face-to-face collaboration. BRIO is the
next best thing to physically being there. Advanced
Logitech autofocus lens technology delivers
remarkable video quality with superb resolution
speed fluidity color balance and detail.
Certified for Business
Business-grade certifications2 mean you can launch
your next presentation or video meeting with
complete confidence.
Omni-directional microphones
Two omni-directional microphones with noise
cancellation provide business-class audio
performance. Mics even work with Microsoft®
Cortana®.
Multiple mounting options
Freedom to mount the camera wherever it works
best – LCD screen notebook or tabletop – by using
the removable clip or embedded tripod thread. Clip is
adjustable to fit a variety of screens.
Plug-and-play USB connectivity
Easily connects to PC Mac and Chrome™ devices
with no additional software required.
Privacy shade
Switch to privacy mode in an instant with the privacy
shade.
Multiple connection types
Enjoy the flexibility of USB 2.0 Type A and USB 3.0 Type
A and C connections.
Custom carrying case
Take your show on the road. The custom carrying case
features separate compartments for the camera and
detachable clip/cable to conveniently transport BRIO
wherever your travels take you.
Poly G7500 Ultra HD 4k Video Conferencing System
- Brand : Polycom
- Model No : Poly Studio G7500 Conference
- Number Of Display Supported : Two display support
- Video Camera Input : 1x HDCI, 1x HDMI, 3x USB, Camera switching via touch interface
- Output : 2x HDMI, Touch display compatible
- Video Resolution : 4K, 30 fps (TX and RX) from 2048 Kbps, 1080p, 60 fps from 1740 Kbps, 1080p, 30 fps from 1024 Kbps, 720p, 60 fps from 832 Kbps, 720p, 30 fps from 512 Kbps, 4SIF/4CIF, 60 fps from 512 Kbps, 4SIF/4CIF, 30 fps from 128 Kbps, SIF (352 x 240), CIF (352 x 288) from 64 kbps, QCIF (176 x 144) from 64 kbps, w288p from 128 Kbps, w448 from 384 Kbps, w576p from 512 Kbps
- Content Video Resolution : Input: UHD (3840 x 2160), HD (1920 x 1080p), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 768), HD (1280 x 720p), XGA (1024 x 768), SVGA (800 x 600)
- Output : UHD (3840 x 2160), WUXGA (1920 x 1200), HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA+ (1400 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768)
- Content frame rate : 5–60 fps (up to 4K resolution at 15 fps in call)
- Content Sharings : Poly Content App support, Apple AirPlay, Miracast, 1x HDMI input
- Audio Input : Up to three 1x IP microphone arrays (20 ft pickup range each), Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter), 1x HDMI, 1x 3.5 mm stereo line-in, USB support for SHURE microphones
- Output : 1x HDMI, 1x 3.5 mm stereo line-out
- Interfaces : 3x USB 3.0, 1x USB-C1, 1x RS-232, 8-pin mini-DIN, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency
- Include Box : G7500 codec, EagleEye IV camera or EagleEye Cube USB, Poly IP Microphone, Bluetooth remote control, Cable bundle
- Accessories : Poly TC8, Poly IP Table Microphone, Poly Microphone IP Adapter, EagleEye Cube USB, EagleEye Director II, EagleEye Producer
- Dimensions (W x D x H) : 34.92 cm x 3.81 cm x 13.97 cm
- Weight : 2.1 lbs
- Warranty : 2-Year Limited Hardware Warranty
Poly Studio R30 Video Conference
- Brand : Polycom
- Model No : Poly Studio R30 Conference
- Camera : Ultra HD (4K 16:9, 2160p), Full HD (1080p), HD (720p), 120° DFOV, 110° HFOV, True color and low light compensation, Automatic meeting experience powered by Poly DirectorAI including speaker framing, presenter tracking, and conversation mode, Electronic zoom up to 5x, Manual pan, tilt and zoom control through Poly Lens Desktop App
- Audio : Poly Acoustic Clarity technology with advanced acoustic echo cancellation and background noise suppression, Poly NoiseBlockAI technology, Poly Acoustic Fence technology, Microphones: 3-element beamforming microphone array, 50 Hz to 14 kHz frequency response
- Speaker : 100 Hz to 20 kHz frequency response, Output: 84 dBSPL at 1000 Hz at 1 meter at maximum volume
- Interfaces : 1x USB 3.0 Type-C port (with USB 2.0 compatibility), 2x USB 2.0 Type-A ports, Power connector, Kensington security lock, 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible, Bluetooth 4.2
- Power : External DC power supply: 12V/3A
- System : Windows 8.1, 10, 11, Mac OS 10.10 or higher, USB 3.0 required for 4K video
- Other Features : Adjustable monitor clamp, Standard Tripod thread, Inverted mounting option, USB-A ports built-in for wireless headset adapter or other peripherals as USB hub, Status LED indicates calling and mute state
- Accessories : Bluetooth remote control, Wall mount
- Dimensions (W x D x H) : 445 mm x 86 mm x 81 mm
- Weight : 1.29 kg
- Warranty : 1-Year Limited Hardware Warranty
Poly Studio USB Video Bar Conference
- Brand : Polycom
- Model No : Poly Studio USB Video Bar Conference
- Field of View : 120°
- Capture Resolution : 3840 x 2160
- Zoom : 5x Digital
- Built-In Microphone : 6-Element Beamforming Array, 12' / 3.65 m Pickup Range, 120 Hz to 16 kHz Frequency Response
- Built-In Speakers : Stereo: 100 Hz to 20 KHz Frequency Response, Output: 90 dB at 1.6' / 0.5 m
- Connectors : 1 x USB 3.0 Type-C Interface, 1 x 3.5 mm Stereo Audio Input, 1 x Power Connector
- Wi-Fi : 802.11ac, IEEE 802.11a/b/g/n
- Bluetooth : 4.2
- Security Lock Support : Kensington
- Security : 802.1x Support
- Supported Operating Systems : Windows 7, 8.1, 10, macOS 10.12, 10.13, 10.14
- Supported Audio/Video Drivers : UAC 1.0 Audio, UVC 1.1/1.5 Video, HID 1.11
- Power Requirements : 12 VDC, 5 A, 100 to 240 VAC, 50/60 Hz
- Operating Temperature : 32 to 104°F / 0 to 40°C
- Storage Temperature : -13 to 160°F / -25 to 70°C
- Relative Humidity : 5 to 95%, Non-Condensing
- Dimensions (W x D x H) : 15.6 cm x 70 cm x 7 cm
- Weight : 2.9 kg
- Warranty : 1-Year Limited Hardware Warranty
Poly Studio X50 Video Conferencing System
- VIDEO STANDARDS AND PROTOCOLS: H.264 AVC, H.264 High Profile, H.265
- Output: UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
- VIDEO INPUT: 1x HDMI
- VIDEO OUT: 2x HDMI
- Touch display compatible
- OTHER INTERFACES: 2x USB A (3.0)
- 1x USB C
- Bluetooth 5.0
- WiFi 802.11a/b/g/n/ac (MIMO)
- Multi channel Concurrency
- AUDIO STANDARDS AND PROTOCOLS
- 22 kHz bandwidth with Polycom Siren
- 22 technology, AAC-LD (TIP calls), G.719
- 14 kHz bandwidth with Polycom Siren
- 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- CONTENT SHARING:
- Poly content app
- Apple Airplay
- Miracast
- HDMI input
- Whiteboarding
- PEOPLE VIDEO RESOLUTION: 4K, 30 fps (TX and RX) from 2048 Kbps
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- CAMERA: 5x digital zoom
- 120° FOV
- UHD 2160p (4K) capture resolution
- Automatic people framing
- NETWORK: IPv4
- 1x 10/100/1G Ethernet
- Auto MDIX
- H.323 and/or SIP up to 6 Mbps running
- Poly Video App
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic bandwidth allocation
- Reconfigurable MTU size
- Web proxy support: Basic, Digest, and NTLM
- Simple Certificate Enrollment Protocol (SCEP)
- CONTENT VIDEO RESOLUTION:
- Input: UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
- AUDIO INPUT: 3x MEMS microphones, plus 2x
- 2nd order microphones
- 1x HDMI
- 1x 3.5 mm line in
- AUDIO OUTPUT:
- Stereo speakers
- 1x 3.5 mm line out
- SECURITY: Media encryption (H.323, SIP):
- AES 128, AES 256
- H.235.6 support
- Authenticated access to admin menus,
- web interface, and API
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- Active directory external authentication
- ELECTRICAL: Auto sensing power supply
- Typical operating voltage/power
- 37 VA 120 V 60 Hz
- 37 VA 230 V 50/60 Hz
- Typical BTU/h: 65
- ENVIRONMENTAL SPECIFICATION:
- Operating temperature: 0 to 40°C
- Operating humidity (non condensing): 15 to 80%
- Non operating temperature: -40 to 70°C
- Non operating humidity (non condensing): 5 to 95%
- Maximum altitude: 16,000 ft
- OPTIONS: VESA mount kit, Stand
- Poly TC8
- PHYSICAL CHARACTERISTICS:
- 30 W x 4 H x 4 D (Inches)
- 762 W x 102 H x 102 D (MM)
- 5.6 lbs/2.54 kg
- INTEROPERABILITY: Support for native 3rd party applications,including Zoom Rooms for Android
- All cloud service provider through Poly Video App Mode
- WARRANTY: 1 year return to factory parts and labor
Poly Studio X30 Video Bar Conference System
- Brand : Polycom
- Model No : Poly Studio X30 Conference
- Camera : 5x digital zoom, 120° FOV, UHD 2160p (4K) capture resolution, Automatic people framing, Automatic speaker tracking
- Audio Input : Four MEMS microphones, Microphone pickup range 15 ft, USB Audio
- Audio Output : Single speaker - Power Handling (RMS) 3W, Power Handling (MAX) 5W, Sensitivity 80dB
- Other Interface : 1x USB-A (3.0), 1x USB-C, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
- Audio Standards And Protocols : 22 kHz bandwidth with Polycom Siren 22 technology, 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology, 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C, 7 kHz bandwidth with G.722, G.722.1, 3.4 kHz bandwidth with G.711, G.728, G.729A
- Video Input : 1x HDMI
- Video Out : 2x HDMI, Touch display compatible
- Video Resolution : 4K, 30 fps (TX and RX) from 2048 Kbps, 1080p, 60 fps from 1740 Kbps, 1080p, 30 fps from 1024 Kbps, 720p, 60 fps from 832 Kbps, 720p, 30 fps from 512 Kbps
- Input : UHD (3840 x 2160), HD (1920 x 1080p), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 768), HD (1280 x 720p), XGA (1024 x 768), SVGA (800 x 600)
- Output : UHD (3840 x 2160), WUXGA (1920 x 1200), HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA+ (1400 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768)
- Content frame rate : 5–60 fps (up to 4K resolution at 15 fps in call)
- Power Supply : Auto sensing power supply, Typical operating voltage/power- 37 VA @ 120 V @ 60 Hz and 37 VA @ 230 V @ 50/60 Hz, Typical BTU/h: 65
- Include Box : Poly Studio X30, Cable bundle, Monitor clamp, Privacy cover
- Accessories : VESA mount kit, Stand, Poly TC8, Poly Bluetooth remote control, Poly Trio, Studio Extension Microphone, Inverted mount kit
- Dimensions (W x D x H) : 762 mm x 102 mm x 102 mm
- Weight : 2.54 kg
- Warranty : 2-Year Limited Hardware Warranty
Poly Studio X52 Video Conference System
- Brand : Polycom
- Model No : Poly Studio X52 Conference
- Audio Input : Stereo microphone - integrated
- Output : Output Power / Channel: 10 Watt, Sound Output Mode : Stereo, Type : Speaker(s)
- Humidity Range Operating : 15 - 80% (non-condensing)
- Max Operating Temperature : 40 °C
- Min Operating Temperature : 0 °C
- Interfaces : 1 x audio / video - HDMI input - 19 pin HDMI Type A, 2 x audio / video - HDMI output - 19 pin HDMI Type A, 2 x SuperSpeed USB 3.0 - 9 pin USB Type A, 1 x USB-C - 24 pin USB-C, 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
- Cables Included : 1 x HDMI cable, 1 x network cable
- Included Accessories : Clamp
- Video Input : Digital Video Capture Resolution : 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050
- Digital Zoom : 5
- Features : Interactive whiteboard compatibility, Microsoft Teams compatible, Zoom compatible, 110° diagonal field of view, automatic speaker tracking, automatic group framing, automatic people framing, 95° field of view (horizontal), Google Meet compatible, Poly DirectorAI technology
- Type : Digital camera - integrated
- Video Modes : 720/60p, 1080/60p, 1080/30p, 720/30p, 4K/30p
- Video Output : Digital Video Standard: High-Definition Multimedia Interface (HDMI)
- Max External Resolution : 3840 x 2160
- Supported Display Graphics : XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160)
- Connectivity Technology : Wireless, wired
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax
- Features : Auto-uplink (auto MDI/MDI-X), Wi-Fi Miracast ready, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, password protection, dynamic bandwidth allocation, reconfigurable MTU size, NT LAN Manager (NTLM), USB device mode
- Network / Transport Protocol : IPv4, IPv6
- Type : Network adapter
- Power Consumption Operational : 25 Watt
- Power Device : Power adapter - external
- Voltage Required : AC 120/230 V (50/60 Hz)
- Dimensions (W x D x H) : 76.95 cm x 10.3 cm x 11.52 cm
- Weight : 2.54 kg
- Warranty : 1-Year Limited Hardware Warranty
Poly Studio Huddle Room USB Video Bar System
- DIMENSIONS
- Unit dimensions: 105 mm x 700 mm x 70 mm = 4.2 x 27.3 x 2.8 (HxWxD) without stand
- 156 mm x 700 mm x 70 mm = 6.2 x 27.3 x 2.8 (HxWxD) with stand
- Weight: 5 lbs 2.6 oz (2342 g) without stand
- 6 lbs 4.7 oz (2856 g) with stand
- Remote control dimensions: 183 mm x 40 mm x 19 mm = 7.2 x 1.6 x .75 (HxWxD)
- APPLICATION REQUIREMENTS: Supported operating systems
- Windows 7, 8.1, 10
- MacOS 10.12, 10.13, 10.14
- Support for standard audio and video device drivers
- UAC 1.0 Audio
- UVC 1.1/1.5 Video
- HID 1.11
- POWER REQUIREMENTS: 12VDC/5A 100~240VAC, 50/60 Hz
- PACKAGE INCLUDES: Poly Studio
- Remote control with 2 AAA batteries
- Power adapter
- 5 m USB 2.0 cable (Type-C to Type-A)
- Wall mount kit
- Setup sheet
- OPTIONAL ACCESSORIES: Expansion microphone, Display mount
- CAMERA: 120 degree FOV
- UHD 2160p (4K) capture resolution
- Automatic people framing & speaker tracking
- 5x zoom / EPTZ
- 2 camera presets
- AUDIO: Poly Acoustic Clarity technology
- provides full duplex conversations
- acoustic echo cancellation and
- background noise suppression
- Poly NoiseBlock technology
- Poly Acoustic Fence technology
- Mute/unmute controls
- Stereo microphones: 6 element beamforming
- microphone array
- 12 ft pickup range
- 120 Hz–16 kHz frequency response
- Stereo speakers: 100 Hz–20 KHz frequency response
- Output: 90 dB 0.5m
- INTERFACES: 1x USB 3.0 Type C port (with 2.0 compatibility)
- Power connector
- Optional external microphone
- 3.5 mm stereo Audio In
- Kensington security lock
- 802.11ac WiFi wireless networking for manageability; IEEE 802.11a/b/g/n
- compatible
- Bluetooth 4.2
- APPLICATION COMPATIBILITY
- Compatible with any application that supports standard USB audio and video drivers, including but not limited to Certified for Microsoft Teams and Skype for Business
- Zoom Certified
- LogMeIn GoToMeeting
- BlueJeans Network
- Google Hangouts communication
- platform
- Amazon Chime
- Cisco Webex
- VidyoDesktop
- Polycom RealPresence Desktop
- SECURITY: 802.1x support, Certification management
- MANAGEABILITY (VIA WIFI): Polycom Companion App (running on Win/Mac PC connected to device)
- Polycom RealPresence Resource Manager
- Polycom Device Management Service
- WARRANTY: 1 year limited hardware warranty
- COUNTRY OF ORIGIN: Laos
- ENVIRONMENTAL
- Operating temperature: 32–104°F (0–40°C)
- Relative humidity: 5–95%, noncondensing
- Storage temperature: -13–160°F (-25°–70°C)
CONFERENCE CAM CONNECT FOR SMALL GROUPS
- Part Number : 960-001034
- Speakers (Rx) : Frequency response: 140Hz – 16KHz, Sensitivity: 89dBSPL +/-3dB at 1W/0.5M, Max output: 91.5dBSPL at 0.5M, Distortion: <5% from 200Hz
- Camera : Full HD 1080p video calling (up to 1920 x 1080 pixels) at 30 frames-per-second7, H.264 UVC 1.5 with Scalable Video Coding (SVC), 90-degree field of view with autofocus, 4X digital zoom in full HD
- Speakerphone : Integrated full duplex speakerphone with echo and noise cancellation, 360-degree wideband audio with 12-foot diameter range, Bluetooth® and NFC enabled, Controls for call answer/end, volume, mute
- Remote Control : Dockable remote control for camera/speakerphone functions, 10-foot range
- Microphones (Tx) : Frequency response: 100Hz – 16kHz, Sensitivity: -34dB +/-3dB, Distortion: <1% @ 1KHz at 65dB
- Wireless Screen Mirroring And Connectivity : HDMI connector for TV output, Screen mirroring2 through WiFi connection to the device
- Primary Pack : EAN Code: 5099206059030,
- Dimensions: 41.9 x 14.5 x 9.1 cm / 16.5 x 5.7 x 3.6 inch, Weight: 1.34 kg /47.26 oz,
- Weight/Dimensions with clip : 75 x 304.2 x 75 mm, 2.95 x 11.98 x 2.95 inch, 766 g / 27.01 oz
- Packaging Dimensions : 91 x 419 x 145 mm, 3.6 x 16.5 x 5.7 inch, 1340 g / 47.26 oz
- Remote : 41 x 128 x 9 mm, 1.6 x 5 x .35 inch, 32 g / 1.13 oz
- System Requirements : Windows 7 or 8.1, Mac OS® X 10.7 or higher
- Google Chromebook Version : 29.0.1547.70, Platform 4319.79.0 with 2.4 GHz Intel® Core 2 Duo processor, 2GB RAM or more, Hard drive space for recorded videos, USB 2.0 port (USB 3.0 ready)
- Screen mirroring : Android 4.3 or higher, Windows 8.1 or higher
- Warranty : 2-year limited hardware
Logitech ConferenceCam Group
- Brand : Logitech
- Pan & Tilt : Pan: 230°,Tilt: 130°
- Field of View : 90°
- Resolution : 1080p30
- Codec : H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Tripod Mounting Thread : 1/4"-20
- Microphones:
- Array : 4 x omnidirectional
- Frequency Response : 100 Hz - 11 kHz
- Sensitivity : -28 dB ±3 dB
- Distortion : <1% @ 1 kHz at 106 dB
- Speakers:
- Frequency Response : 120 - 14 kHz
- Sensitivity : 83 dBSPL ±3 dB at 1 W / 1 m
- Max Output : 91 dBSPL
- Distortion : <5% from 200 Hz
- Remote Control Distance : Up to 28' / 8.5 m
- Connectivity:
- Computer: USB 2.0
- Dimensions:
- Camera : 5.1 x 7 x 5.4" / 130 x 170 x 138 mm
- Speakerphone : 9.5 x 2.5 x 9.5" / 240 x 65 x 240 mm
- Hub : 3.75 x 1.3 x 2.9" / 94 x 34 x 74 mm
- Remote : 2 x 5 x 0.5" / 50 x 120 x 12 mm
- Weight:
- Camera : 21 oz / 585 g
- Speakerphone : 43 oz / 1223 g
- Hub : 3 oz / 83 g
- Remote : 2 oz / 51 g
- Package Weight : 9.05 lb
- Box Dimensions (LxWxH) : 19.3 x 12.4 x 5.9"
- Warranty : 2 years
logitech meetup
- All-in-one conferencecam with an ultra-wide lens for small rooms
- Part No :960-001101
- TECHNICAL SPECIFICATIONS
- Camera
- Custom Logitech lens with 5x HD zoom and motorized pan +/- 25 and tilt +/- 15°
- Field of View: Diagonal: 120° Horizontal: 113° Vertical: 80.7°
- Total Room Coverage field of view + pan and tilt: 163° wide x 110° tall
- 3 camera position presets
- RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher
- Video Performance
- 4K Ultra HD video calling up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable
- 1080p Full HD video calling up to 1920 x 1080 pixels @ 30 fps
- 720p HD video calling up to 1280 x 720 pixels @ 30 fps
- Microphone
- Integrated microphone with 3 beamforming elements
- Pickup Range
- MeetUp: 4 m
- With optional Expansion Mic: 5 m
- Sensitivity: -27 dB
- Microphone frequency response: 90Hz-16KHz for full voice reproduction and high intelligibility without noise
- Beamforming performance: Factory-paired very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
- AEC Acoustic Echo Cancellation
- VAD Voice Activity Detector
- Microphone background noise suppression
- Microphone date rate: 32KHz sampling rate
- Recommended of participants: 6
- Recommended of participants with expansion mic: 8
- Speaker
- Volume adjustable to 95 dB SPL at 1/2 meter peak
- Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
- Distortion: 200-300Hz 3% 3000 Hz -10KHz 1%
- Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces
- General
- Bluetooth wireless technology
- RF remote control
- Integrated table/wall mount optional TV mount available
- Kensington security slot
- COMPATIBILITY AND INTEGRATIONS
- Plug-and-play USB connectivity
- Certified for Skype for Business and Microsoft Teams
- Zoom Certified
- Fuze Certified
- Certified for Google Hangouts Meet Hardware
- Microsoft Cortana
- Cisco Jabber
- Compatible with BlueJeans BroadSoft GoToMeeting Vidyo and other video conferencing recording and broadcasting applications that support USB cameras
- WARRANTY INFORMATION
- Standard: 2-year limited hardware warranty included
- Extended: Additional one-year extended warranty available at the time of hardware purchase
- Contact your reseller for availability
Logitech Rally System
- Brand : Logitech
- Pan & Tilt : Pan: ±90°,Tilt: +50° / -90°
- Field of View : 90°
- Resolution : 1080p
- Frequency response : 90 Hz – 16 kHz
- Sensitivity : >-27 dB +/-1 dB @ 1 Pa
- Distortion : 200 Hz–300 Hz < 2.5%, 300 Hz–10
- Dimensions:
- Camera : 182.5 mm x 152 mm x 152 mm
- Speakerphone : 103 mm x 449 mm x 80 mm
- Hub : 40 mm x 206 mm x 179 mm
- Box Dimensions (LxWxH) : 5.98 x 5.98 x 7.19 inches
- Warranty : 2 years
Logitech Rally expansion Mic
- Brand : Logitech
- Sensor Resolution : 13.00 MP
- Max Digital Zoom : 15x
- Flip / Mirror Support : Mirror (Vertical)
- Optical Zoom Ratio : 15x
- Field of View : Horizontal: 90°
- Focus Control : Autofocus
- Broadcast System Compatibility : NTSC
- Output Formats:
- USB : 3840 x 2160p at 30 fps
- 2560 x 1440p at 30 fps
- 1920 x 1080p at 30, 60 fps
- 1600 x 900p at 30 fps
- 1280 x 720p at 30, 60 fps
- 640 x 480i at 30 fps
- Presets : 3 via IR
- Movement Range:
- Pan : 90°
- Tilt : 50° (-90 to 50°)
- Tally Light : Yes
- Supported Control Protocols : IR
- Power Connectors : 1 x Proprietary
- Tripod Mounting Thread : 1 x 1/4"-20 Female
- Security Lock Support : Kensington Lock Slot
- Dimensions:
- 7.2 x 5.9 x 5.9" / 18.29 x 14.99 x 14.99 cm (Camera)
- 0.84 x 3.2 x 2.4" / 2.13 x 8.13 x 6.1 cm (Power Splitter)
- 3.47 x 4.3 x 6.7" / 8.81 x 10.92 x 17.02 cm (Mounting Bracket)
- 7.2' / 2.19 m (USB Cable)
- 9.8' / 2.99 m (Power Cable)
- Package Weight : 7.535 lb
- Box Dimensions (LxWxH) : 11.6 x 10.5 x 7.2"
- Warranty : 2 years
Logitech Rally Splitter Mic Pod Hub
- Brand : Logitech
- Pickup range : 4.5m diameter
- Resolution : 1080p
- Frequency response : 90Hz – 16kHz
- Sensitivity : >-27dB +/-1dB 1Pa
- Microphone data rate : 48 kHz
- Recommended # of participants:
- Rally (one Mic Pod) : 10
- Rally Plus (two Mic Pods) : 16
- Additional participants per Mic Pod : 6
- Recommended participants for Rally with 7 Mic Pods : 46
- Dimensions:
- Camera : 182.5 mm x 152 mm x 152 mm
- Speakerphone : 103 mm x 449 mm x 80 mm
- Hub : 40 mm x 206 mm x 179 mm
- Box Dimensions (LxWxH) : 21 mm x 102 mm x 102mm
- Warranty : 2 years
Logitech Rally Mounting Kit
- Brand : Logitech
- Speaker Bracket:
- Height x Width x Depth : 36 mm x 266 mm x 8 mm
- Camera Bracket:
- Height x Width x Depth : 63 mm x 109 mm x 166 mm
- Table Hub Bracket:
- Height x Width x Depth : 12 mm x 164 mm x 115 mm
- Display Hub Bracket:
- Height x Width x Depth : 12 mm x 164 mm x 115 mm
- Cable Retainer:
- Height x Width x Depth : 23 mm x 164 mm x 38 mm
- PACKAGE CONTENTS:
- Speaker Bracket (2)
- Camera Bracket
- Table Hub Bracket
- Display Hub Bracket
- Cable Retainer (2)
- Fasteners Documentation
- Warranty : 2 years
Logitech Rally Speaker Bar
- Brand : Logitech
- Speaker volume : 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter
- Distortion : 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
- Speaker sampling rate : 48 kHz
- Available Accessories : Rally Mounting Kit includes two wall-mount brackets for Rally Speaker, plus cable retainers (x2) and mounting brackets for camera and hubs (x2)
- Box Dimensions (LxWxH) : 103 mm x 449 mm x 80 mm
- SYSTEM REQUIREMENTS:
- Logitech Rally system with one speaker
- Maximum speakers per system : 2
- High-performance : 76 mm driver with rare-earth magnet
- Warranty : 2 years
Logitech Rally System Plus
- Brand : Logitech
- Interface Type : SuperSpeed USB 3.0
- Digital Video Capture Resolution : 3840 x 2160
- Audio Input:
- Type : 3 microphones - external
- Frequency Response : 90 - 16000 Hz
- Audio Output:
- Type : Speaker(s)
- Input Device:
- Type : Remote control
- Connectivity Technology : Wired
- Expansion / Connectivity:
- Interfaces : 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x microphone 2 x display / video - HDMI 1 x USB 3.1 - 24 pin USB-C 1 x USB 3.1 - 9 pin
- USB Type A 2 x USB 3.1 - 9 pin USB Type B 2 x audio
- Miscellaneous:
- Cables Included : 1 x USB-C 3.1 cable - 6.6 ft 1 x USB 3.1 Type A to Type B cable - 6.6 ft 2 x audio cable - 9.7 ft 1 x network cable - 16.4 ft 2 x HDMI cable - 6.6 ft 1 x microphone cable - 9.7 ft
- Power:
- Power Device : Power supply
- Dimensions & Weight (Shipping):
- Shipping Width : 8.3 in
- Shipping Depth : 27.2 in
- Shipping Height : 15.7 in
- Shipping Weight : 24.69 lbs
- Warranty : 2 years
Logitech Zone Wireless Bluetooth headset
- Brand : Logitech
- Product Type : Headset - Bluetooth - wireless
- Width : 6.9 in
- Depth : 2.8 in
- Height : 7 in
- Weight : 6.38 oz
- Earpad Material : Leatherette
- Recommended Use : Phone, computer
- Max Operating Distance : 98 ft
- Headphones:
- Headphones Form Factor : On-ear
- Connectivity Technology : Wireless
- Wireless Technology : Bluetooth
- Sound Output Mode : Stereo
- Active Noise Canceling : Yes
- Frequency Response : 30 - 13000 Hz
- Microphone:
- Type : Boom
- Microphone Operation Mode : Omni-directional
- Microphones Included : 2
- Frequency Response : 85 - 20000 Hz
- Remote Control:
- Controls : Volume, pair mode
- Connections:
- Connector Type : USB (4 pin USB Type A)
- Miscellaneous:
- Cables Included : USB charge cable - 4.3 ft
- Included Accessories : Travel bag, USB dongle
- Power:
- Battery : Headset battery rechargeable - lithium ion
- Wireless Charging Standards : Qi
- Run Time (Up To) : 15 hour(s)
- Warranty : 1 year
Logitech Tap
- Brand : Logitech
- Product Type : Controller
- Functions : Video conferencing room control
- Connectivity Technology : Wired
- OS Required : Google Chrome OS, Windows 10
- Features : Built-in speaker, anti-theft protection built-in touchscreen display, security slot (Kensington security lock compatible)
- Control Unit:
- Input Type : Touch screen
- Internet of Things (IoT):
- Display : 10.1"
- Display Resolution : 1280 x 800 pixels
- Interfaces : Headphone output HDMI input USB-C 3.1 USB 3.1
- Camera:
- Features : Motion sensor
- Miscellaneous
- Included Accessories : Power adapter, cleaning cloth, 4 screws, USB Type A to USB-C cable
- Nominal Voltage : AC 100 - 240 V
- Compliant Standards : VESA FDMI
- Dimensions & Weight:
- Width : 9.6 in
- Depth : 7 in
- Height : 2.3 in
- Weight : 2.76 lbs
- Warranty : 2 years
Logitech Tap Wall Mount
- Brand : Logitech
- Product Type : Video conferencing controller mounting kit
- Package Content : Mounting hardware
- Width : 9.6 in
- Depth : 7 in
- Height : 2.3 in
- Features : 14° tilt
- Warranty : 2 years
Logitech Tap Table Mount
- Brand : Logitech
- Product Type : Video conferencing controller mounting kit
- Package Content : Mounting hardware
- Width : 9.6 in
- Depth : 7 in
- Height : 2.4 in
- Features : 180° rotation, for 20-50 mm table, 51-89 mm diameter hole
- Warranty : 2 years
Logitech Tap Riser Mount
- Brand : Logitech
- Product Type : Video conferencing controller mounting kit
- Package Content : Mounting hardware
- Width : 9.6 in
- Depth : 7 in
- Height : 4 in
- Features : 180° rotation, 30° tilt, for 20-50 mm table, 51-89 mm diameter hole
- Warranty : 2 years
Logitech Tap 3.1 25m Cable
- Brand : Logitech
- Type : USB-C cable
- Features : Plenum, Active Optical Cable (AOC), aramid-reinforced sheath, 3/4" conduit friendly
- Length : 25 m
- Connectivity:
- Connector : 9 pin USB Type A - male
- Connector (Second End) : 24 pin USB-C - male
- Miscellaneous:
- Compliant Standards : USB 2.0 / USB 3.0 / USB 3.1, IEC 60332-1-2
- Warranty : 2 years
Logitech Tap 3.1 10m Cable
- Brand : Logitech
- Features : In-wall rated,Stays connected,Compatible,Hides the computer
- Type: USB-C cable
- Features : Plenum, Active Optical Cable (AOC), aramid-reinforced sheath, 3/4" conduit friendly
- Length : 10 m
- Connector : 9 pin USB Type A - male
- Connector (Second End) : 24 pin USB-C - male
- Compliant Standards : USB 2.0 / USB 3.0 / USB 3.1
- Warranty : N/A
Logitech Rally Mic Table Mount
- Brand : Logitech
- Product Type : Microphone interface adapter
- Package Content : Mounting hardware
- Width : 10.2 cm
- Depth : 10.2 cm
- Height : 1.6 cm
- Miscellaneous:
- Placing / Mounting : Under-the-desk
- Compatibility Information:
- Designed For : Logitech Rally Mic Pod, Rally, Rally Plus
- Warranty : 2 years
Logitech Rally Camera Power Splitter
- Brand : Logitech
- Rally Camera:
- Height x Width x Depth : 7.19” x 5.88” x 5.88”,182.5 mm x 152 mm x 152 mm
- Rally Camera Mounting Bracket:
- Height x Width x Depth : 3.47” x 4.33” x 6.69”,88 mm x 110 mm x 170 mm
- Rally Camera Power Splitter:
- Height x Width x Depth : 0.84” x 3.19” x 2.38”,21.4 mm x 81 mm x 60.5 mm
- USB 3.0 cable : 7.2 ft (2.2 m)
- Power Adapter Cable : 9.8 ft (3 m)
- Pan : ±90°
- Tilt : +50°/ -90°
- HD zoom : 15x
- field of view : 90°
- RightSense™ Technologies : RightLight with Wide Dynamic Range (WDR),RightSight automatic camera control
- Remote Control : RF remote control (line of sight not required),CR2032 battery (included)
- Power : AC Power adapter with regional plugs,Power cable (9.8 ft / 3 m)
- Connectivity : USB Type-C,MIPI Connector,Expansion Slot
- Warranty : 2 years
Logitech Rally Camera Power Adaptor
- Brand : Logitech
- Rally Camera Power Splitter : 21.4 mm x81 mm x 60.5 mm
- Rally Camera Mounting Bracket : 88 mm x 110 mm x 170 mm
- USB 3.0 cable : 2.2 m
- Power Adapter Cable : 3 m
- Additional Software : RightSight automatic camera control 1
- Pan : ±90°
- Tilt : +50° / -90°
- Field of View : 90°
- REMOTE CONTROL : RF remote control (line of sight not required),CR2032 battery (included)
- CABLES / POWER : AC Power adapter with regional plugs,Power cable (9.8 ft / 3 m)
- RIGHTSENSE™ TECHNOLOGIES : RightLight™ with Wide Dynamic Range (WDR),RightSight™ automatic camera control2
- Warranty : 2 years
Logitech PTZ Pro2 Camera
- Brand : Logitech
- Resolution : Full HD 1080p at 30 fps
- PTZ :
- Motorized Pan : 260°
- Motorized Til t : 130°
- Motorized Zoom : 10x
- Field of View : 90°
- Focus Type : Auto
- Support : H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Security : Kensington security slot
- LED Indicator : Video mute/unmute
- Thread : Standard tripod thread
- Connector : USB
- Cable : 9.8' / 3 m
- Remote Control :
- IR Range : 28' / 8.5 m
- Power : CR2032 battery (included)
- System Requirements : Windows 7, Windows 8.1, or Windows 10macOS 10.10 or higher
- Application : Skype for Business certified Cisco Jabber and WebEx compatible Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud,
- Vidyo, and Zoom
- Mount : Dual-purpose bracket works for both wall mounting and tabletop elevation
- Dimensions :
- Camera : 5.8 x 5.2 x 5.1" / 146 x 131 x 130 mm
- Remote : 0.4 x 2.0 x 4.7" / 10 x 50 x 120 mm
- Weight :
- Camera : 1.3 lb / 580 g
- Remote : 1.7 oz / 48 g
- Package Weight : 4.51 lb
- Box Dimensions (LxWxH) : 14.55 x 8.75 x 5.85"
- Warranty : 2 years
Logitech Rally Camera
- Brand : Logitech
- Sensor Resolution : 13.00 MP
- Camera:
- Max Digital Zoom : 15x
- Flip / Mirror Support : Mirror (Vertical)
- Lens:
- Optical Zoom Ratio : 15x
- Field of View : Horizontal: 90°
- Focus Control : Autofocus
- Video Output:
- Broadcast System Compatibility : NTSC
- Output Formats:
- USB : 3840 x 2160p at 30 fps
- 2560 x 1440p at 30 fps
- 1920 x 1080p at 30, 60 fps
- 1600 x 900p at 30 fps
- 1280 x 720p at 30, 60 fps
- 640 x 480i at 30 fps
- Control:
- Presets : 3 via IR
- Movement Range:
- Pan : 90°
- Tilt : 50° (-90 to 50°)
- Tally Light : Yes
- Supported Control Protocols : IR
- Power:
- Power Connectors : 1 x Proprietary
- Power Consumption : Power Supply
- General:
- Tripod Mounting Thread : 1 x 1/4"-20 Female
- Security Lock Support : Kensington Lock Slot
- Dimensions :
- 7.2 x 5.9 x 5.9" / 18.29 x 14.99 x 14.99 cm (Camera)
- 0.84 x 3.2 x 2.4" / 2.13 x 8.13 x 6.1 cm (Power Splitter)
- 3.47 x 4.3 x 6.7" / 8.81 x 10.92 x 17.02 cm (Mounting Bracket)
- 7.2' / 2.19 m (USB Cable)
- 9.8' / 2.99 m (Power Cable)
- Package Weight : 7.535 lb
- Box Dimensions (LxWxH) : 11.6 x 10.5 x 7.2"
- Warranty : 2 years
Logitech USB Headset Stereo H570e AP
- Brand : Logitech
- Product Type : Headset - wired - USB
- Compatibility : Linux, Mac, Windows
- Additional Functions : DSP
- Width : 6.5 in
- Depth : 2 in
- Height : 6.8 in
- Weight : 3.91 oz
- Earpad Material : Leatherette
- Recommended Use : Computer - communication
- Headphones:
- Headphones Form Factor : On-ear
- Connectivity Technology : Wired
- Sound Output Mode : Stereo
- Frequency Response : 31.5 - 20000 Hz
- Total Harmonic Distortion (THD) : <5%
- Sensitivity : 94 dB
- In-Cord Volume Control : Yes
- Features : In-call LED indicator
- Microphone:
- Type : Boom
- Form Factor : Headset microphone
- Microphone Technology : Electret condenser
- Sensitivity : -47 dB
- Frequency Response : 100 - 18000 Hz
- Total Harmonic Distortion (THD) : <2%
- Controls : Mute, volume, answer/end
- Connector Type : USB (4 pin USB Type A)
- Cables Included : USB cable
- Software Certification : Certified for Skype for Business, Lync 2013 Certified
- Compliant Standards : EN 60950-1
- Warranty : 2 years
Logitech USB Headset Stereo H650e AP
- Brand : Logitech
- Product Type : Headset - wired
- Additional Functions : LED lights
- Width : 6.9 in
- Depth : 2 in
- Height : 6.5 in
- Weight : 4.23 oz
- Recommended Use : Computer
- Headphones Form Factor : On-ear
- Connectivity Technology : Wired
- Sound Output Mode : Stereo
- Frequency Response : 50 - 10000 Hz
- Sensitivity : 90 dB
- In-Cord Volume Control : Yes
- Type : Boom
- Microphone Operation Mode : Mono
- Sensitivity : -45 dB
- Frequency Response : 100 - 10000 Hz
- Controls : Volume, answer/end
- Connector Type : USB (4 pin USB Type A)
- Cables Included : Headset cable
- Included Accessories : Carrying pouch
- Country of Origin : CN
- Warranty : 2 years
Logitech B525 HD Webcam AMR
- Brand : Logitech
- Device Type : Web camera
- Audio Support : Yes : built-in microphone
- Connectivity Technology : Wired
- Width : 2.7 in
- Depth : 1.1 in
- Height : 1.6 in
- Weight : 3.1 oz
- Type : Color
- Max Digital Video Resolution : 1280 x 720
- Video Capture : 1280 x 720 @ 30 fps
- Features : USB 2.0 compatibility, RightLight 2 technology, 720p HD video calls, Skype compatible
- Focus Adjustment : Automatic
- Min Focus Distance : 3.9 inComputer Interface : USB 2.0
- Interfaces : 1 x USB 2.0 - 4 pin USB Type A
- Included Accessories : Flat panel monitor clip
- Cables Included : 1 x USB cable - 5 ft
- Compliant Standards : Plug and Play
- OS Required : Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista
- Country of Origin : CN
- Warranty : 3 years
Logitech Webcam C925E
- Brand : Logitech
- Device Type : Web camera
- Audio Support : Yes : built-in dual stereo microphones
- Connectivity Technology : Wired
- Width : 5 in
- Depth : 1.8 in
- Height : 2.9 in
- Weight : 6 oz
- Type : Color
- Digital Video Format : H.264
- Max Digital Video Resolution : 1920 x 1080
- Features : Skype compatible
- Focus Adjustment : Automatic
- Computer Interface : USB 2.0
- Compliant Standards : UL, FCC, RoHS, WEEE, TUV T
- OS Required : Apple MacOS X 10.7 or later, SUSE Linux Enterprise 11 SP2, Microsoft Windows 7 / 8 / 10
- Country of Origin : CN
- Warranty : 3 years
Logitech Webcam C930e AP
- Brand : Logitech
- Device Type : Web camera
- Audio Support : Yes : built-in dual stereo microphones
- Connectivity Technology : Wired
- Width : 3.7 in
- Depth : 1.7 in
- Height : 2.8 in
- Weight : 5.71 oz
- Type : Color
- Digital Video Format : H.264
- Max Digital Video Resolution : 1920 x 1080
- Digital Zoom : 4
- Video Capture : 1920 x 1080 @ 30 fps
- Features : RightLight 2 technology, auto low-light correction, Carl Zeiss optics, USB 3.0 compatibility, 1080p Full HD movie recording, Skype compatible
- Focus Adjustment : Automatic
- Computer Interface : USB 2.0
- Interfaces : 1 x USB 2.0 - 4 pin USB Type A
- Included Accessories : Privacy shutter
- OS Required : Microsoft Windows 7, Apple MacOS X 10.7 or later, Windows 8
- Country of Origin : CN
- Warranty : 3 years
LOGITECH BRIO
- Brand : Logitech
- Device Type : Web camera
- Audio Support : Yes : built-in dual stereo microphones
- Camera Mount Type : Surface mount, tripod mount
- Connectivity Technology : Wired
- Width : 4 in
- Depth : 1.1 in
- Height : 1.1 in
- Weight : 2.22 oz
- Type : Color
- Max Digital Video Resolution : 4096 x 2160
- Video Modes : 720p, 1080p, 4K
- Digital Zoom : 5
- Video Capture : 4096 x 2160 @ 30 fps,1920 x 1080 @ 60 fps,1280 x 720 @ 90 fps
- Features : Passive infrared sensor, High Dynamic Range (HDR), 4K ULTRA HD engine, RightLight 3 technology
- Focus Adjustment : Automatic
- Computer Interface : USB
- Included Accessories : Carrying case, removable clip, privacy shutter
- Cables Included : 1 x USB cable - 5 ft
- Compliant Standards : Plug and Play
- OS Required : Apple MacOS X 10.10, Microsoft Windows 7 / 8.1 / 10, Google Chrome OS 29
- System Requirements Details : Core 2 Duo - 2.4 GHz - RAM 2 GB
- Country of Origin : CN
- Warranty : 3 years
Logitech Smartdock Flex
- Brand : Logitech
- Device Type : Video/audio extender
- Form Factor : External
- Connectivity Technology : Wired
- Data Link Protocol : GigE
- Max Resolution : 1080p @ 60 Hz
- Max Transfer Distance : 49 ft
- Interfaces : 2 x HDMI - 19 pin HDMI Type A female,1 x USB 2.0 - Type A female,1 x Ethernet 1000Base-T - RJ-45,1 x - 6 pin DIN
- Included Accessories : Mounting screws, screwdriver, SmartDock Flex Base, cable ties, security mount, hook and loop pads
- Cables Included : 1 x HDMI adapter,1 x network cable - 16.4 ft,1 x micro-USB to USB cable - 9.7 ft
- Width : 5.6 in
- Depth : 1.2 in
- Height : 5.6 in
- Country of Origin : CN
- Warranty : 2 years
Logitech Speakerphone P710e AU
- Brand : Logitech
- Product Type : Speaker phone - Bluetooth - wireless, wired - NFC
- Additional Functions : LED lights
- Width : 4.7 in
- Depth : 4.7 in
- Height : 1.6 in
- Weight : 9.7 oz
- Recommended Use : Portable electronics, computer - communication
- Headphones:
- Connectivity Technology : Wireless, wired
- Wireless Technology : Bluetooth
- Frequency Response : 140 - 16000 Hz
- Dynamic Range : 85 dB
- Microphone:
- Microphone Operation Mode : Omni-directional
- Directivity Angle : 360°
- Frequency Response : 50 - 8000 Hz
- Controls : Volume, answer/end
- Connector Type : USB (4 pin USB Type A),Headphones (mini-phone stereo 3.5 mm)
- Cables Included : USB cable
- Included Accessories : Carrying case, spacer
- Power Device : Power adapter - external
- Battery : Speaker phone battery rechargeable
- Run Time (Up To) : 15 hour(s)
- Country of Origin : CN
- Warranty : 2 years
Logitech TV MOUNT FOR MEETUP
- Brand : Logitech
- Product Type : Camera mount
- Placing / Mounting : On-the-monitor mountable
- Dimensions (WxDxH) : 8.3 cm x 1.6 cm x 40 cm
- Weight : 280 g
- Designed For : Small Room Solution for Google Meet, for Microsoft Teams Rooms, for Zoom Rooms
- Depth : 1.6 cm
- Height : 40 cm
- Width : 8.3 cm
- Features : VESA interface support
- Mounting Kit : Included
- Warranty : 2 years
Logitech GROUP 10M EXTENDED CABLE
- Brand : logitech
- Cable Length : 10m
- Cable Thickness : 4 mm
- Repeater Length : 50 mm
- Repeater Thickness : 12 mm
- Weight : 278 g
- Connection Type : Mini-DIN-6
- Warranty : 2 years
Logitech BCC950 Video Conference Webcam
- Brand : logitech
- Device Type : Web camera - pan / tilt / zoom
- Audio : Yes : built-in speaker, built-in microphone
- Dimensions (WxDxH) : 10.4 cm x 15 cm x 15.4 cm
- Weight : 231 g
- Connectivity Technology : Wired
- Camera : Colour
- Max Resolution : 1920 x 1080
- Focus Adjustment : Automatic
- Panning Range (degree) : 180
- Tilting Range (degree) : 55
- Interfaces : USB 2.0
- Cables Included : 1 - USB cable - 2.4 m
- Features : USB 2.0 compatibility, Carl Zeiss optics, Skype compatible
- Microsoft Certification : Compatible with Windows 7
- Depth : 15 cm
- Height : 15.4 cm
- Width : 10.4 cm
- Digital Video Format : H.264
- Video Capture : 1920 x 1080 @ 30 fps
- Shipping Depth : 17.3 cm
- Shipping Height : 12.4 cm
- Shipping Weight : 1.103 kg
- Shipping Width : 17.7 cm
- Interfaces : 1 x headset - mini-phone 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type A
- Included Accessories : Remote control
- Power Device : Power adapter - external
- OS Required : Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later
- Warranty : 2 years
Logitech Expansion Mic for MeetUp
- Brand : logitech
- Product Type : Microphone
- Recommended Use : Conference
- Microphone Operation Mode : Mono
- Microphone Active Noise Cancelling : Yes
- Designed For : Small Room Solution for Google Meet, for Microsoft Teams Rooms, for Zoom Rooms
- Depth : 8.3 cm
- Height : 1.34 cm
- Max Operating Distance : 4.2 m
- Weight : 302 g
- Width : 8.3 cm
- Connectivity Technology : Wired
- Features : Mute function
- Cables Included : Microphone cable - 6 m
- Warranty : 2 years
Logitech GROUP 15M EXTENDED CABLE
- Brand : logitech
- Cable Length : 15 m
- Cable Thickness : 5 mm
- Repeater Length : 50 mm
- Repeater Thickness : 12 mm
- Weight : 510 g
- Connection Type : Mini-DIN-6
- Warranty : 2 years
Logitech Group Microphone Expansion Mic
- Brand : logitech
- Product Type : Microphone set
- Recommended Use : Conference
- Microphones Included : 2
- Connectivity Technology : Wired
- Warranty : 2 years
Logitech Screen Share
- Brand : logitech
- Device Type : External video adapter
- Bus Type : SuperSpeed USB 3.0
- Max Resolution : 1920 x 1080
- Interfaces : HDMI,USB 3.0 (male connector)
- Features : LED indicator, USB powered
- OS Required : Apple MacOS X 10.10.x or later, Microsoft Windows 7 / 8.1 / 10
- Included Accessories
- Hook-and-loop fastener, cable management mounts
- Cables Included : USB 3.0 / USB 2.0 cable - 9.8 in
- Width : 0.6 in
- Depth : 1 in
- Height : 3.3 in
- Weight : 1.06 oz
- Country of Origin : CN
- Warranty : 2 years
Logitech SmartDock Extender Box
- Brand : logitech
- Product Type : Docking station
- Width : 5 in
- Depth : 5 in
- Height : 1.3 in
- Weight : 12.7 oz
- Expansion or Connectivity:
- Interfaces : 2 x audio or video - HDMI - 19 pin HDMI Type A 3 x USB 3.1 1 x network - Ethernet 1000 - RJ-45 1 x headset - mini-phone 3.5 mm
- Miscellaneous:
- Cables Included : 1 x data extension cable - 16.4 ft
- Warranty : 2 years
Logitech ConferenceCam Connect AP
- Brand : logitech
- Camera : Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
- 90-degree field of view with autofocus; 4X digital zoom in Full HD
- Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
- Digital pan, tilt and zoom from remote control or optional downloadable app
- ZEISS lens certification
- Camera LED for active streaming indication
- Speakerphone :
- Integrated full duplex speakerphone with echo and noise cancellation
- 360-degree wideband audio with 12-foot (3.6 m) diameter range
- Bluetooth® and NFC enabled
- LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
- Microphones (Tx) : Two omni-directional microphones supporting 3.6 m diameter range
- Frequency response : 100Hz – 16KHz; Sensitivity: -34dB +/-3dB
- Speakers (Rx):
- Frequency response : 140Hz – 16KHz; Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
- Max output : 91.5dBSPL at 0.5M
- Remote control : Dockable remote control for camera / speakerphone functions; 10-foot (3m) range
- Cables : USB & Power adapter with cord
- Warranty : 2 years
Logitech SmartDock
- Brand : logitech
- Device Type : Video conferencing kit
- Width : 13.1 in
- Depth : 8.2 in
- Height : 9.4 in
- Dimensions & Weight Details:
- Camera : Width 6.7 in Depth 5.4 in Height 5.1 in Weight 20.6 oz
- Speakerphone : Width 2.6 in Depth 9.4 in Height 9.4 in Weight 2.7 lbs
- Hub : Width 1.3 in Depth 2.9 in Height 3.7 in Weight 2.9 oz
- Remote : Width 4.7 in Depth 0.5 in Height 2 in Weight 1.8 oz
- Microphone : Width 3.3 in Depth 0.8 in Height 3.3 in Weight 8.1 oz
- Built-in Devices : Docking station
- Bundled with : SmartDock Extender Box, Surface Pro (i5, 128GB, 4GB), Logitech Group + Expansion Mics
- Video Input:
- Type : Digital camera (color) - desktop
- Audio Input:
- Type : Two microphones - external
- Audio Output:
- Type : Speaker(s)
- Input Device:
- Type : Remote control, motion sensor
- Connectivity Technology : Wired
- Networking:
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Expansion / Connectivity
- Interfaces:
- 3 x USB 3.1 - 9 pin USB Type A
- 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
- 3 x audio / video - HDMI
- 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm
- 1 - Microsoft Surface connector
- Miscellaneous
- Cables Included : 2 x HDMI cable - 10 ft,1 x network cable - 10 ft
- Power:
- Power Device : Power adapter
- Voltage Required : AC 120/230 V
- Country of Origin : CN
- Warranty : 2 years
Logitech C930e 1080p HD Webcam
Widest sharpest fastest
HD video desktop collaboration
Features:
- HD 1080p video quality at 30 frames-per-second
- H.264 with scalable video coding (SVC) and UVC 1.5 encoding technology
- 90-degree diagonal field of view
- Logitech RightLight 2 technology and autofocus
- 4X digital zoom in Full HD
- Pan tilt and zoom option controlled by software
- ZEISS glass lens
- Convenient privacy shutter
- Plug-and-play USB connectivity
- Multiple mounting options
Product Specification:
- Without clip:
- Width 3.7 inches (94mm)
- Height 1.14 inches (29mm)
- Depth .95 inches (24mm)
With clip:
- Width 3.7 inches (94mm)
- Height 1.7 inches (43mm)
- Depth 2.8 inches (71mm)
- Weight 5.7 ounces (162g)
Packaging Dimensions:
- 7.1 x 5.3 x 3.2 in (180 x 135 x 81 mm)
- Weight: 13.9 oz (393g)
System Requirements
- Windows 7 or Windows 8
- Mac OS X 10.7 or higher
- 2.4GHz Intel Core 2 Duo processor
- 2GB RAM or more
- Hard drive space for recorded videos
- USB 2.0 port (USB 3.0 ready)
Inside the box
- Logitech Webcam C930e
- External Privacy Shutter
- Quick Start Guide
Warranty
- 3-year limited hardware
Logitech H600 Wireless Headset
- For computers via USB receiver
- PART NUMBER :981-000504
- TECHNICAL SPECIFICATIONS
- Microphone Type: Uni-directional
- Input Impedance: 32 Ohms
- Sensitivity headphone: 102 dB 3dB
- Sensitivity microphone: -44dBV Pa 3 dB
- Frequency response Headset: 40Hz-10KHz
- Frequency response Microphone: 100 Hz - 6.5 KHz
- PACKAGE CONTENTS
- Wireless headset
- USB A Nano receiver
- USB A charging cable
- User documentation
- 2 Year Limited Hardware Warranty
Logitech 981 000915 Zone Wireless
- Brand: Logitech
- UC Zone Wireless: 981-000915
- Type: Omni-directional dual MEMS mic array
- Frequency response: 85 20KHz 3dB ECM mic freq resp
- Battery life talk time: 14 Hrs ANC on 15 hrs ANC Off
- Battery life listening time: 14 Hrs ANC on 16 hrs ANC Off
- USB-A to C charging cable: 130 cm Available only for Zone Wireless
- Connectivity: Works with Windows Mac or Chrome based computer via USB-C USB-A Bluetooth and iOS or Android Bluetooth enabled devices, Qi Wireless charging enabled 3Qi Wireless charger sold separately
- Warranty: 2 Years Warranty
Logitech 981 000808 Zone Wireless Plus
- Brand: Logitech
- UC Zone Wireless Plus: 981-000808
- Type: Omni-directional dual MEMS mic array
- Frequency response: 85 20KHz 3dB ECM mic freq resp
- Battery life talk time: 14 Hrs ANC on 15 hrs ANC Off
- Battery life listening time: 14 Hrs ANC on 16 hrs ANC Off
- Connectivity: Works with Windows Mac or Chrome based computer via USB-C USB-A Bluetooth and iOS or Android Bluetooth enabled devices
- Warranty: 2 Years Warranty
Logitech 981 000855 MSFT Zone Wireless
- Brand: Logitech
- MSFT Zone Wireless: 981-000855
- Type: Omni-directional dual MEMS mic array
- Frequency response: 85 20KHz 3dB ECM mic freq resp
- Battery life talk time: 14 Hrs ANC on 15 hrs ANC Off
- Battery life listening time: 14 Hrs ANC on 16 hrs ANC Off
- Connectivity: Works with Windows Mac or Chrome based computer via USB-C USB-A Bluetooth and iOS or Android Bluetooth enabled devices
- Warranty: 2 Years Warranty
Logitech 960 001217 Rally ConferenceCam
- Brand: Logitech
- Part: 960-001217
- Speaker: 1 Rally
- Mic Pod: 1 Rally
- Power Supplies: 2 Power
- Cable: USB C to C cable, USB A to B cable, 2 HDMI A to A cable
- Connectivity: Rally Camera, CAT6A, Display Hub, Table Hub, Documentation, Remote Control
- Warranty: 2 Years Warranty
Logitech Rally Plus Video Conferencing
- Brand : Logitech
- Model No : Logitech Rally Plus Conference
- Part Number : 960-001275
- Camera : Zoom: 15x HD zoom (5x optical + 3x digital)
- Pan : 180° (±90°)
- Tilt : 140° (+50° / -90°)
- Field of View : Diagonal: 90°, Horizontal: 82°, Vertical: 52°
- Total Room Coverage : 262° wide x 192° tall (field of view + pan and tilt)
- Resolutions at 30fps : 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
- Resolutions at 60fps : 1080p, 720p
- RightLight Technologies : Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
- Privacy : Lens parks at -90° in sleep mode for assured privacy
- Rally Mic Pod : Pickup Range: 7 m diameter Four omnidirectional microphones forming eight acoustic beams
- AEC : Acoustic Echo Cancellation
- VAD : Voice Activity Detector, Background noise suppression, Mute button with LED status indicator, Captive 2.95 m 12-pin cable, Daisy chain up to 7 Rally Mic Pods
- Frequency Response : 90Hz – 16kHz
- Sensitivity : >-27 dB +/-1dB at 1Pa
- Microphone data rate : 48 kHz, Rally (one Mic Pod) : 16, Rally Plus (two Mic Pods) : 16, Additional participants per Mic Pod : 6, Recommended participants for Rally with 7 Mic Pods : 46
- Speaker : High-performance 76 mm driver with rare-earth magnet, Patent-pending suspension system eliminates vibration-induced camera shake and audio interference, Mini XLR cable connects to Rally Display Hub for both signal and power, Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
- Sensitivity : 95+/-2 dB SPL at ½ meter
- Distortion : 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
- Sampling rate : 48 kHz
- Table Hub : Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m, Hub 5 m cable included, supports customer-supplied cables up to 50 m
- Active speaker detection : analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms, 12 Pin connector for Rally Mic Pod, HDMI Type A passthrough to Display Hub (x2), USB Type C, USB Type A (reserved for future capability), USB Type B (connects to meeting room computer), RJ45 (reserved for future capability), Power input
- Display Hub : HDMI Type A: (x2) (connects to displays), USB C (connects to Rally Camera), USB Type B (connects to meeting room computer)
- RJ45 : connects to Table Hub
- Mini XLR : x2, Powers one or two Rally Speakers, Power input
- Remote Control : RF remote control (line of sight not required), CR2032 batteries (included)
- Cables / Power : Camera to Display Hub: 2 m USB 3.1 Type C to USB Type C 3.1
- Conference Room Computer to Display or Table Hub : 2 m USB 3.1 Type A to USB Type B
- Display Hub to Table Hub : 5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
- Display Hub to Speaker (x2) : 2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
- Conference Room Computer to Displays (x2) : 2 m HDMI A
- Mic Pod : 2.95 m: Hardwired with 12 pin connector
- Power Outlets to Power Supplies (x2): 1 m - 1 m
- Power Supplies to Table Hub / Display Hub (x2) : 1.5 m
- Accessories : RALLY MOUNTING KIT : Rally Mounting Kit with cable retainers: (x2) and mounting brackets for camera, speakers (x2), and hubs (x2), Rally Mic Pod, Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms, MIC POD MOUNT, Anchors mics and hides cables for a finished look, Rally Mic Pod Hub, Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling, Rally Speaker: Add a second Rally Speaker for larger rooms
- Include Box : Logitech Rally Plus, Rally Camera, Rally Display Hub, Rally Table Hub, Rally Speaker (x2), Rally Mic Pod (x2), Remote control, USB Type C to USB Type C, USB Type A to USB Type B, CAT6A Ethernet cable, HDMI Type A (x2), A/C cables (x2), Power Supplies (x2), Documentation
- Dimensions (W x D x H) : 152 mm x 152 mm x 182.5 mm
- Color : Black
- Weight : 28 lb
- Warranty : 2-Year Limited Hardware Warranty
Logitech 960 001230 Speaker
- Brand: Logitech
- Part Number: 960-001230
- Product Type: Speaker
- Speaker volume: 95 dB SPL 1 W, 100 dB SPL 7.5 W, both +/-2 dB
- Distortion: 200 Hz–300 Hz <2.5%, 300 Hz 10 kHz < 1% 7.5 W
- Speaker Sampling Rate: 48KHz
- Dimensions: Height: 103 mm, Width: 449 mm, Depth: 80 mm
- Warranty: 2 Years Warranty
Logitech 989 000430 Rally Mic Pod
- Brand: Logitech
- Part Number: 989-000430
- Frequency response: 90Hz – 16kHz
- Microphone data rate output: 48 kHz
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Interfaces Output: 2.95 m 12-pin captive cable
- Interfaces Input: 12-pin interface to daisy-chain Mic Pods or connect to Rally Mic Pod Hub
- Dimensions: Height: 21 mm, Width: 102 mm, Depth: 102 mm
- Warranty: 2 Years Warranty
Logitech 939 001647 Rally Mic Pod Hub
- Brand: Logitech
- Part Number: 939-001647
- Product Type: Mic Pod Hub
- Color: Black
- Dimensions: Height: 0.6, Width: 4, Depth: 4
- Warranty: 2 Years Warranty
Logitech 939 001644 Rally Mounting Kit
- Brand: Logitech
- Part Number: 939-001644
- Product Type: mounting kit
- Color: Black
- Warranty: 2 Years Warranty
Logitech GROUP 960 001054 Video Conferencing System
- Brand: Logitech
- Part: 960-001054
- Camera:
- Pan: +/- 90°
- Tilt: +35° / -45
- Field of View:
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2°
- Camera: Full HD 1080p 30fps
- Remote Control: IR 8.5 m range, CR2032 battery (included)
- Speakerphone: Full-duplex performance
- Microphones:
- Range: 6 m
- Frequency response: 100Hz – 11KHz
- Power cable: 3 m
- Warranty: 2 Years Warranty
Logitech Rally Bar Graphite Video Conferencing
- Brand : Logitech
- Model No : Logitech Rally Bar Graphite Conference
- Part Number : 960-001317
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
- Enclosure : All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management : Logitech Sync
- Displays Supported : 2
- Display Resolution : Up to 1080p
- Network Protocol Support : IPv4, IPv6
- Proxy Support : IP based Proxy, FQDN based Proxy, Proxy using PAC file
- Camera : Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan : Motorized ±25°
- Tilt : Motorized ±15°
- Zoom : 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View : 90°
- Horizontal Field of View : 82.1°
- Vertical Field of View : 52.2°
- Total Room Coverage (field of view + pan and tilt) : 132.1° Horizontal x 82.2° Vertical
- Speakers : Drivers: 2x 70 mm
- Sensitivity : 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power : 8W
- THD : 1kHz < 2% at 1W
- Speaker Sampling Rate : 48 kHz
- Impedance : 4 Ohms
- Microphones : Frequency Response: 90Hz – 16kHz
- Sensitivity : >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output : 48KHz
- Pickup Range : Up to 7 m
- Beamforming Elements : 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing : AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression : AI based de-noising algorithm
- Add-on Mics : Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
- Interfaces : HDMI Out: 2 (up to 1080p)
- HDMI In : 1
- USB : 3x Type A, 1x Type C
- Network : 10/100/1G Ethernet
- WiFi : 802.11a/b/g/n/ac
- External Mic Input : Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control : Bluetooth Low Energy
- Power & Cables : Power supply: Auto-sensing
- Operating Voltage/Power : 100-240V, 19V, 4.74A
- Power Supply Dimensions : 127 mm x 51 mm x 30 mm
- DC Cable : 1.5 m, AC Cable : 1 m
- HDMI 1.4 Cable : 2 m
- USB A to USB C 3.0 Cable : 2.2 m
- Environmental : Operating Temperature: 0 to 40°C
- Storage Temperature : -40 to 70 °C
- Humidity : 10 to 95%
- BTU/hr : 57 idle, 64 in meeting
- Accessories : Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Audio : Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity : Logitech Strong USB (10m, 25m, 45m)
- Touch Controller : Logitech Tap and Tap IP
- Compatibility : Internet Connection: Wired or wireless, USB Mode: Windows 11, Windows 10, the two most recent versions of macOS, Appliance Mode: Room solution software license (not included)
- Include Box : Rally Bar, Power supply, AC power cord, HDMI cable, USB cable, Remote control, Lens caps for main camera and AI Viewfinder, User documentation
- Dimensions (W x D x H) : 910 mm x 130.5 mm x 164 mm
- Color : Graphite
- Weight : 7.08 kg
- Warranty : 2-Year Limited Hardware Warranty
Logitech Rally Bar White Video Conferencing
- Brand : Logitech
- Model No : Logitech Rally Bar White Conference
- Part Number : 960-001329
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
- Enclosure : All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management : Logitech Sync
- Displays Supported : 2
- Display Resolution : Up to 1080p
- Network Protocol Support : IPv4, IPv6
- Proxy Support : IP based Proxy, FQDN based Proxy, Proxy using PAC file
- Camera : Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan : Motorized ±25°
- Tilt : Motorized ±15°
- Zoom : 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View : 90°
- Horizontal Field of View : 82.1°
- Vertical Field of View : 52.2°
- Total Room Coverage (field of view + pan and tilt) : 132.1° Horizontal x 82.2° Vertical
- Speakers : Drivers: 2x 70 mm
- Sensitivity : 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power : 8W
- THD : 1kHz < 2% at 1W
- Speaker Sampling Rate : 48 kHz
- Impedance : 4 Ohms
- Microphones : Frequency Response: 90Hz – 16kHz
- Sensitivity : >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output : 48KHz
- Pickup Range : Up to 7 m
- Beamforming Elements : 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing : AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression : AI based de-noising algorithm
- Add-on Mics : Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
- Interfaces : HDMI Out: 2 (up to 1080p)
- HDMI In : 1
- USB : 3x Type A, 1x Type C
- Network : 10/100/1G Ethernet
- WiFi : 802.11a/b/g/n/ac
- External Mic Input : Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control : Bluetooth Low Energy
- Power & Cables : Power supply: Auto-sensing
- Operating Voltage/Power : 100-240V, 19V, 4.74A
- Power Supply Dimensions : 127 mm x 51 mm x 30 mm
- DC Cable : 1.5 m, AC Cable : 1 m
- HDMI 1.4 Cable : 2 m
- USB A to USB C 3.0 Cable : 2.2 m
- Environmental : Operating Temperature: 0 to 40°C
- Storage Temperature : -40 to 70 °C
- Humidity : 10 to 95%
- BTU/hr : 57 idle, 64 in meeting
- Accessories : Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Audio : Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity : Logitech Strong USB (10m, 25m, 45m)
- Touch Controller : Logitech Tap and Tap IP
- Compatibility : Internet Connection: Wired or wireless, USB Mode: Windows 11, Windows 10, the two most recent versions of macOS, Appliance Mode: Room solution software license (not included)
- Include Box : Rally Bar, Power supply, AC power cord, HDMI cable, USB cable, Remote control, Lens caps for main camera and AI Viewfinder, User documentation
- Dimensions (W x D x H) : 910 mm x 130.5 mm x 164 mm
- Color : White
- Weight : 7.08 kg
- Warranty : 2-Year Limited Hardware Warranty
Poly Studio X70 Video Conference System
- Brand : Polycom
- Model No : Poly Studio X70 Conference
- Audio Input : Quad array microphone - integrated
- Output : Sound Output Mode: Stereo, Type : Speaker(s)
- Humidity Range Operating : 15 - 80% (non-condensing)
- Max Operating Temperature : 40 °C
- Min Operating Temperature : 0 °C
- Interfaces : 1 x audio / video - HDMI input - 19 pin HDMI Type A, 2 x audio / video - HDMI output - 19 pin HDMI Type A, 2 x SuperSpeed USB 3.0 - 9 pin USB Type A, 1 x USB-C - 24 pin USB-C, 1 x audio - line-in - mini-phone 3.5 mm, 1 x audio - line-out - mini-phone 3.5 mm, 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45, s1 x microphone
- Connectivity Technology : Wired
- Features : LED backlight, 1280 x 800 resolution
- Type : 8 inch touchscreen
- Cables Included : 1 x network cable, 2 x HDMI cable
- Included Accessories : Wall mount
- Connectivity Technology : Wireless, wired
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
- Features : OCSP support, auto-uplink (auto MDI/MDI-X), IPv6 support, MIMO technology, IPv4 support, Wi-Fi Miracast ready, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, AES encryption, Simple Certificate Enrollment Protocol (SCEP), password protection, dynamic bandwidth allocation, reconfigurable MTU size, electronic privacy shutter
- Network / Transport Protocol : IPv4, IPv6
- Type : Network adapter
- Power Device : Power adapter - external
- Voltage Required : AC 120/230 V (50/60 Hz)
- Video Input : Digital Video Capture Resolution: 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050
- Digital Zoom : 7.3
- Features : Auto tracking, auto-framing, 120° field of view (horizontal), Miracast connectivity, 70° field of view (horizontal), 78° diagonal field of view, 140° field of view (diagonal), 2x 20 megapixels sensors
- Interface Type : HDMI
- Type : Digital camera (color) - integrated
- Video Modes : 1080/30p, 720/30p, 4K
- Output : Digital Video Standard: High-Definition Multimedia Interface (HDMI)
- Max External Resolution : 3840 x 2160
- Supported Display Graphics : XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160)
- Dimensions (W x D x H) : 37 inch x 14 inch x 8 inch
- Weight : 19 lbs
- Warranty : 1-Year Limited Hardware Warranty
Poly Studio P5 Professional Webcam Conference
- Brand : Polycom
- Model No : Poly Studio P5 Webcam Conference
- Camera : 1080p (Full HD), 720P (HD) Compatible, Auto focus with 4x zoom / EPTZ, 80° DFOV, Low light quality & true color images, certified by Zoom and Microsoft Teams, Custom controls through Poly Lens Desktop
- Microphone : Single directional microphone optimized for personal workspaces, 50 Hz to 16 kHz frequency response
- System : Windows version 8.1, 10, Mac OS X version 10.7 or later, USB 2.0 port
- Device Driver Support : USB 2.0, UVC/UAC Plug and Play compatible
- Compatibility : Certified for Microsoft Teams and Zoom applications, Compatible with any application that supports standard USB/UVC standards
- Features : Integrated USB 2.0 Type A cable, Integrated privacy shutter, Adjustable monitor clamp, Tripod ready, USB-A port built-in for Poly BT600 Bluetooth adapter, Status LED indicates calling and mute state
- Operating Conditions : Temperature: 0° C to +40° C, 5% to 95% relative humidity, non-condensing, Altitude: Up to 10,000 ft
- Package Contents : Poly Studio P5 webcam, Removable monitor clamp, Setup sheet
- Dimensions (W x D x H) : 60 mm x 68 mm x 43 mm
- Weight : 98g
- Warranty : 2-Year Limited Hardware Warranty
Lenovo ThinkSmart Bar 180 Full Room Smart Sound System
- Product Brand: Lenovo
- Part No: 12VR0000US
- Device Type: Video Conferencing
- Product: Lenovo ThinkSmart Bar 180
- No Of Cameras: 3
- Field of View: 180° horizontal, 54° vertical
- Aspect Ratio: 3840 x 1080
- Resolution Support: 13 megapixels Panoramic 4K 30fps
- Zoom: 6x lossless digital zoom Intelligent Zoom
- Speakers: 2x speakers, 2x tweeters Stereo audio out Speaker frequency range: 80Hz – 20kHz
- Microphones: 8 beamforming array microphones Sensitivity: -37dBFS Microphone frequency range 100Hz – 8kHz
- Buttons: Power on / off Mute Bluetooth Volume up / down
- Mounting Options: TV Mounting brackets included
- Connectivity: AC Audio Jack USB-C Supports 2.0 and 3.0 Ethernet (RJ45) Bluetooth
- Product Dimensions : 650 x 80 x 125 mm/25.6 x 3.1 x 4.9 in
- Product Weight: 2.2 kg
- Product Color: Black
