Lenovo Mission Critical Server

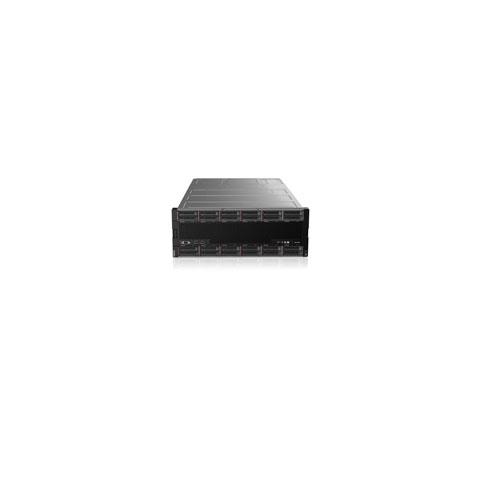

Lenovo ThinkSystem SR950 Mission Critical Servers
- Form Factor/Height: Rack/4U
- Processor (max): Up to 8 second-generation Intel® Xeon® Platinum processors, up to 28x cores per processor, up to 205W
- Memory (max): Up to 24TB in 96 slots, using 256GB DIMMs; 2666MHz / 2933MHz TruDDR4, supports Intel® Optane™ DC
- Expansion Slots: Up to 14x rear PCIe, (11x x16 +, 3x x8), 2x shared ML2 and PCIe x16) and 1x LOM; plus 2x front
- Internal Storage (Total/Hot-swap) Up to 24x 2.5" bays supporting SAS/SATA HDDs/SSDs, including 12x 2.5" NVMe SSDs
- Network Interface : Up to 2x (1/2/4-port) 1GbE, 10GbE, 25GbE, or InfiniBand ML2 adapters; plus 1x (2/4-port) 1GbE or 10GbE LOM card
- Power (std/max): Up to 4x shared 1100W, 1600W or 2000W AC 80 PLUS Platinum
- Security and Availability Features Lenovo ThinkShield, TPM 1.2/2.0; PFA; Hot-swap/redundant drives, fans, and PSUs; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port
- Hot-Swap/Redundant Components Power supplies, fans, SAS/SATA/NVMe storage
- RAID Support: Optional HW RAID; M.2 boot support with optional RAID
- Systems Management XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
- OSes Supported
- Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
Lenovo ThinkSystem SR860 V2 Mission Critical Servers
- Form Factor: 4U
- Processors: Two or four 3rd-generation Intel® Xeon® Processor Scalable family CPUs, up to 250W; Mesh topology with 6x UPI links
- Memory: Up to 12TB of TruDDR4 memory in 48x slots; Memory speeds up to 3200MHz at 2 DIMMs per channel; Supports Intel Optane Persistent Memory 200 Series
- enternal Storage: Up to 48x 2.5-inch drives; Supports up to 24x NVMe drives (16x with 1:1 connection); 2x 7mm or 2x
- GPU Support Up to 4x double-wide 300W GPUs (NVIDIA V100S) or 8x single-wide 70W GPUs (NVIDIA T4)
- Network Interface: Dedicated OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE
- Power Up to 4x Platinum or Titanium hot-swap power supplies; N+N and N+1 redundancy supported
- High Availability: TPM 2.0; PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional integrated diagnostic LCD panel
- RAID Support: Onboard SATA with SW RAID, Support for ThinkSystem PCIe RAID/HBA cards
- Management: Lenovo XClarity Controller; Redfish support
- OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information.
- Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
Lenovo ThinkSystem SR850 V2 Mission Critical Servers
- Form Factor: 2U
- Processors: Two or four 3rd-generation Intel® Xeon® Processor Scalable family CPUs, up to 250W; Mesh topology with 6x UPI links
- Memory: Up to 12TB of TruDDR4 memory in 48x slots; Memory speeds up to 3200MHz at 2 DIMMs per channel; Supports Intel Optane Persistent Memory 200 Series
- Expansion: Up to 7x PCIe 3.0 expansion slots
- Front: VGA, 1x USB 3.1, 1x USB 2.0
- Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
- Internal Storage Up to 24x 2.5-inch drives; Supports up to 24x NVMe drives (16x with 1:1 connection); 2x 7mm drives for boot
- Network Interface Dedicated OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE
- Power 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
- High Availability TPM 2.0; PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional diagnostic LCD panel
- RAID Support: Onboard SATA with SW RAID; Support for ThinkSystem PCIe RAID/HBA cards
- Management Lenovo XClarity Controller; Redfish support
- OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information.
- Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

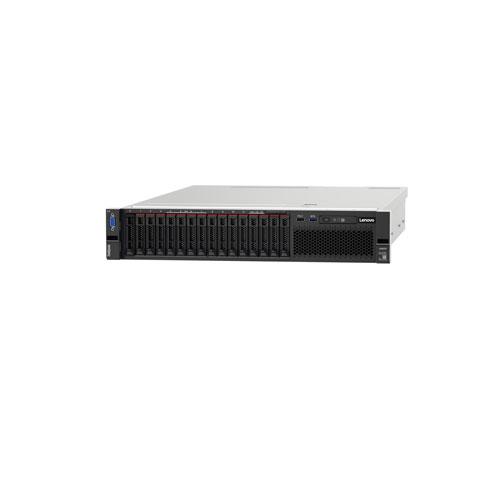

Lenovo ThinkSystem SR850P Mission Critical Servers
- Form Factor: 2U
- Processors: Two or four 3rd-generation Intel Xeon Processor Scalable family CPUs, up to 250W; Mesh topology with 6x UPI links
- Memory: Up to 12TB of TruDDR4 memory in 48x slots; Memory speeds up to 3200MHz at 2 DIMMs per channel; Supports Intel Optane Persistent Memory 200 Series
- Expansion: Up to 7x PCIe 3.0 expansion slots
- Front: VGA, 1x USB 3.1, 1x USB 2.0
- Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
- Internal Storage Up to 24x 2.5-inch drives; Supports up to 24x NVMe drives (16x with 1:1 connection); 2x 7mm drives for boot
- Network Interface Dedicated OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE
- Power 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
- High Availability TPM 2.0; PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional diagnostic LCD panel
- RAID Support: Onboard SATA with SW RAID; Support for ThinkSystem PCIe RAID/HBA cards
- Management Lenovo XClarity Controller; Redfish support
- OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information.
- Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

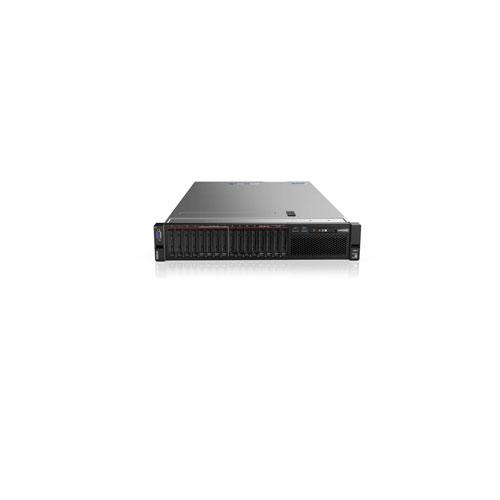

Lenovo ThinkSystem SR850 Mission Critical Servers
- Form Factor/Height: 2U rack server
- Processor (max): 2 or 4 second-generation Intel® Xeon® Processor Scalable family CPUs, up to 165W
- Memory (max): Up to 6TB in 48x slots using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4
- Expansion Slots: Up to 9x PCIe plus 1x LOM; optional 1x ML2 slot
- Internal Storage: Up to 16x 2.5" storage bays supporting SAS/SATA HDD and SSDs or up to 8x 2.5" NVMe SSD; plus up to 2x mirrored M.2 boot
- Network Interface: Multiple options with 1GbE, 10GbE, 25GbE, 32GbE, 40GbE or InfiniBand PCIe adapters; one (2-/4-port) 1GbE or 10GbE LOM card
- Power Supply (std/max): 2x hot-swap/redundant: 750W/1100W/1600W AC 80 PLUS Platinum
- Security and Availability Features: Lenovo ThinkShield, TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; diagnostic LCD panel
- RAID Support: HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs
- Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
Lenovo ThinkSystem SR850 V3 Mission Critical Server
Sever Brand: Lenovo
Server Product: ThinkSystem SR850 V3 Mission Critical Server
Form Factor: 2U Rack
Processor Structure: Two or four 4th Gen Intel Xeon Scalable processors, up to 350W Mesh topology with 3x UPI links With Up to 4x QAT, DLB, IAA and DSA Accelerators
GPU Support: Up to 2x double-width 350W GPUs or 4x single-width 75W GPUs
Memory: Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz
Drive Bays: Up to 24x 2.5 drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot
Expansion Slots: Up to 12x (8x Gen5 + 4x Gen4) or 7x (6x Gen5 + 1x Gen4) or 12x Gen4 or 9x Gen4 expansion slots
Front: VGA, 1x USB 3.1, 1x USB 2.0
Rear: 2x USB 3.1, optional Serial port, VGA port, 1GbE dedicated management port
Network Interface: 2 Dedicated OCP 3.0 slots supporting 1GbE, 10GbE, 25GbE or 100GbE
HBA/RAID Support: Support for ThinkSystem PCIe RAID/HBA cards
Power: 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
High Availability: PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
Security: Root of Trust (RoT) module includes Platform Firmware Resiliency (PFR), Trusted Platform Module (TPM) 2.0 or TCM for PRC and optional Chassis Intrusion Switch. Secures and authenticates the system to prevent unauthorized intrusion.
System Management: Lenovo XClarity Controller; Redfish support
OS Support: OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information
Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)
Lenovo ThinkSystem SR860 V3 Mission Critical Server
Sever Brand: Lenovo
Server Product: ThinkSystem SR860 V3 Mission Critical Server
Form Factor: 4U Rack
Processor Structure: Two or four 4th Gen Intel Xeon Scalable processors, up to 350W Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators
GPU Support: Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs
Memory: Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz.
Drive Bays: Up to 48x 2.5 drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot
Expansion: Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots
Front: VGA, 1x USB 3.1, 1x USB 2.0
Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
Network Interface: 2 Dedicated OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE or 100GbE
HBA/RAID Support: Support for ThinkSystem PCIe RAID/HBA cards
Power Supply: Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
High Availability: PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
Security: Root of Trust (RoT) module includes Platform Firmware Resiliency (PFR), Trusted Platform Module (TPM) 2.0 or TCM for PRC and optional Chassis Intrusion Switch. Secures and authenticates the system to prevent unauthorized intrusion.
System Management: Lenovo XClarity Controller; Redfish support
OS Support: Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information
Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)
